Instrument Cluster

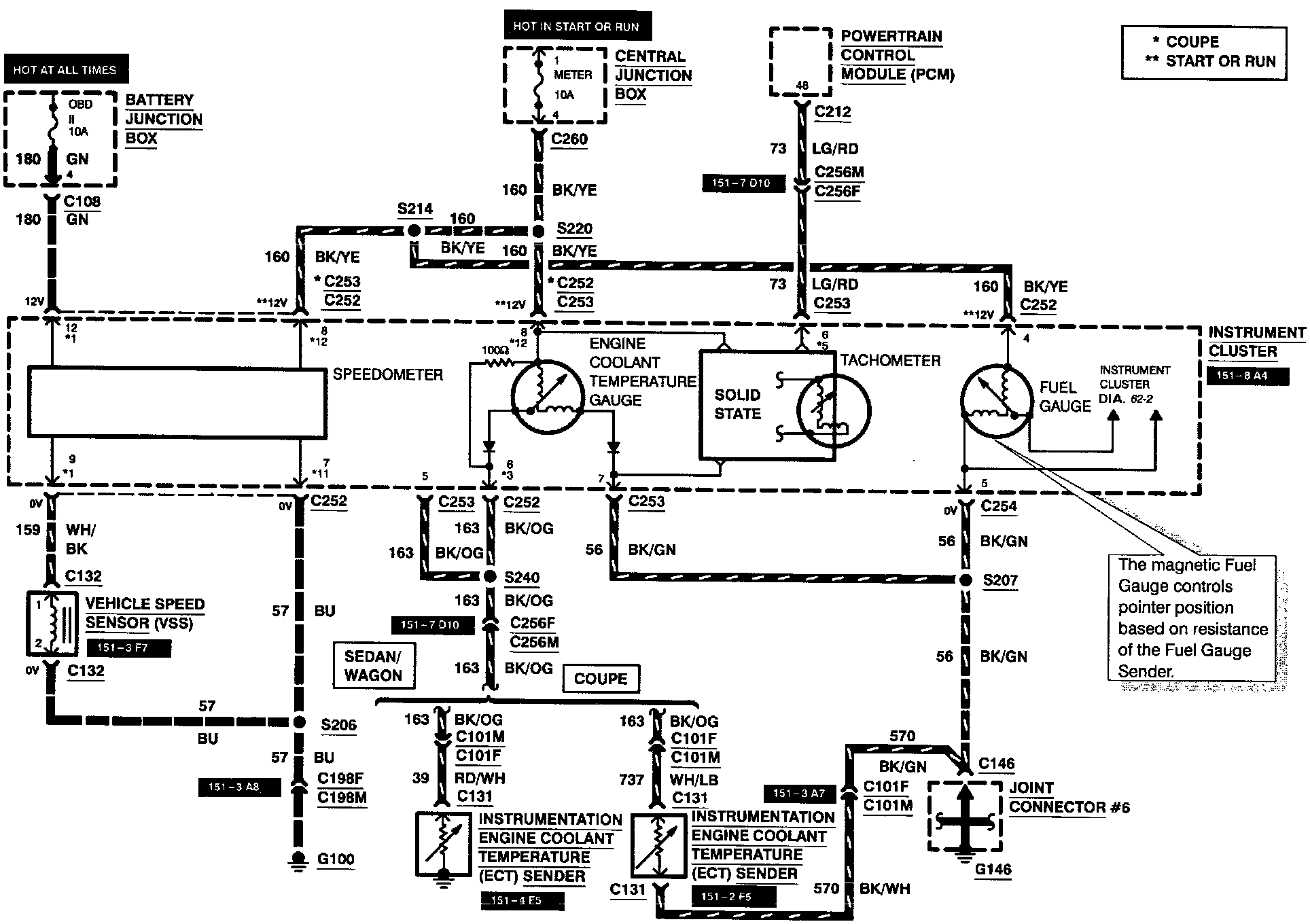

Diagram 62-1:

Battery Junction Box
Central Junction Box
Engine Coolant Temperature Gauge
Fuel Gauge
Fuse Meter
Fuse OBD II
Instrument Cluster
Instrumentation Engine Coolant Temperature Sender
Joint Connector #6
Powertrain Control Module
Speedometer
Tachometer
Vehicle Speed Sensor

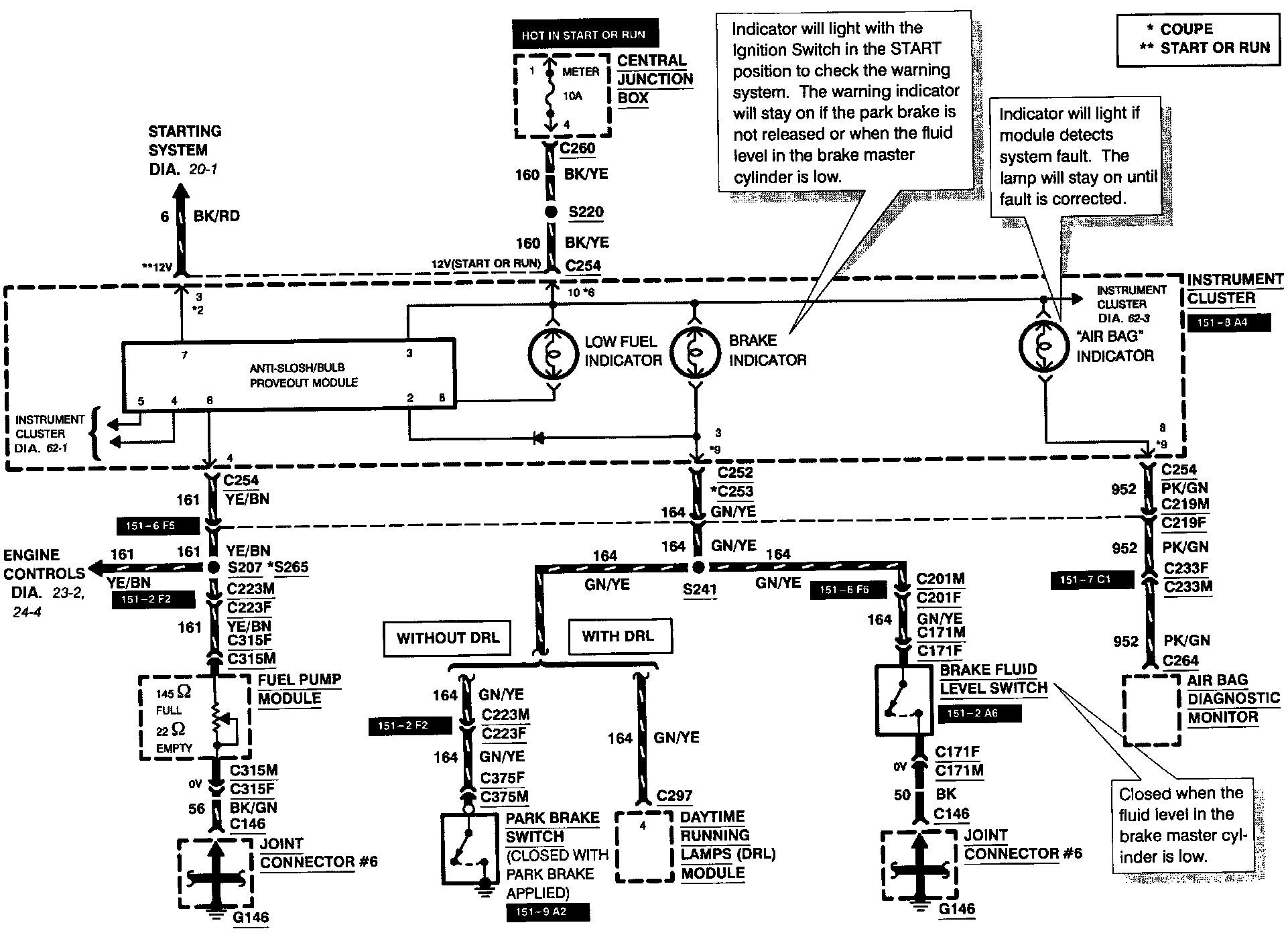

Diagram 62-2:

Air Bag Diagnostic Monitor
Air Bag Indicator
Anti-Slosh/Bulb Proveout Module
Brake Fluid Level Switch
Brake Indicator
Central Junction Box
Daytime Running Lamps Module
Fuel Pump Module
Fuse Meter
Instrument Cluster
Joint Connector #6
Low Fuel Indicator
Park Brake Switch

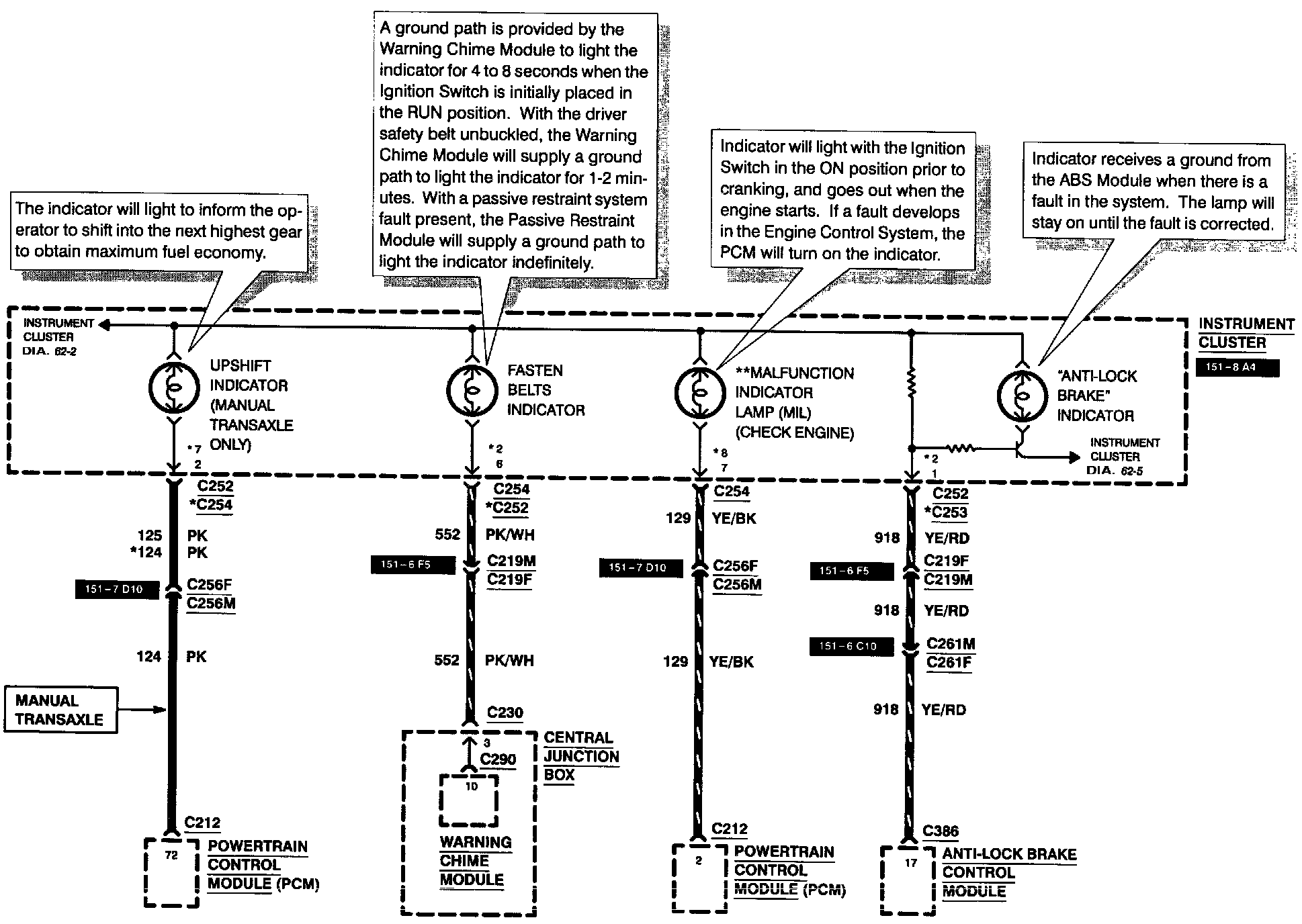

Diagram 62-3:

Anti-Lock Brake Indicator
Anti-Lock Brake Control Module
Central Junction Box
Fasten Belts Indicator
Instrument Cluster
Malfunction Indicator Lamp
Powertrain Control Module
Upshift Indicator
[1][2]Warning Chime Module

Diagram 62-4:

Battery Junction Box
Central Junction Box
Charge Indicator
Check Engine Coolant Indicator
Engine Coolant Level Switch
Engine Oil Pressure Indicator
Engine Oil Pressure Switch
Fuse Meter
Generator
Instrument Cluster
Joint Connector #1
Liftgate Ajar Indicator
Liftgate Latch Switch
Remote Keyless Entry Diode

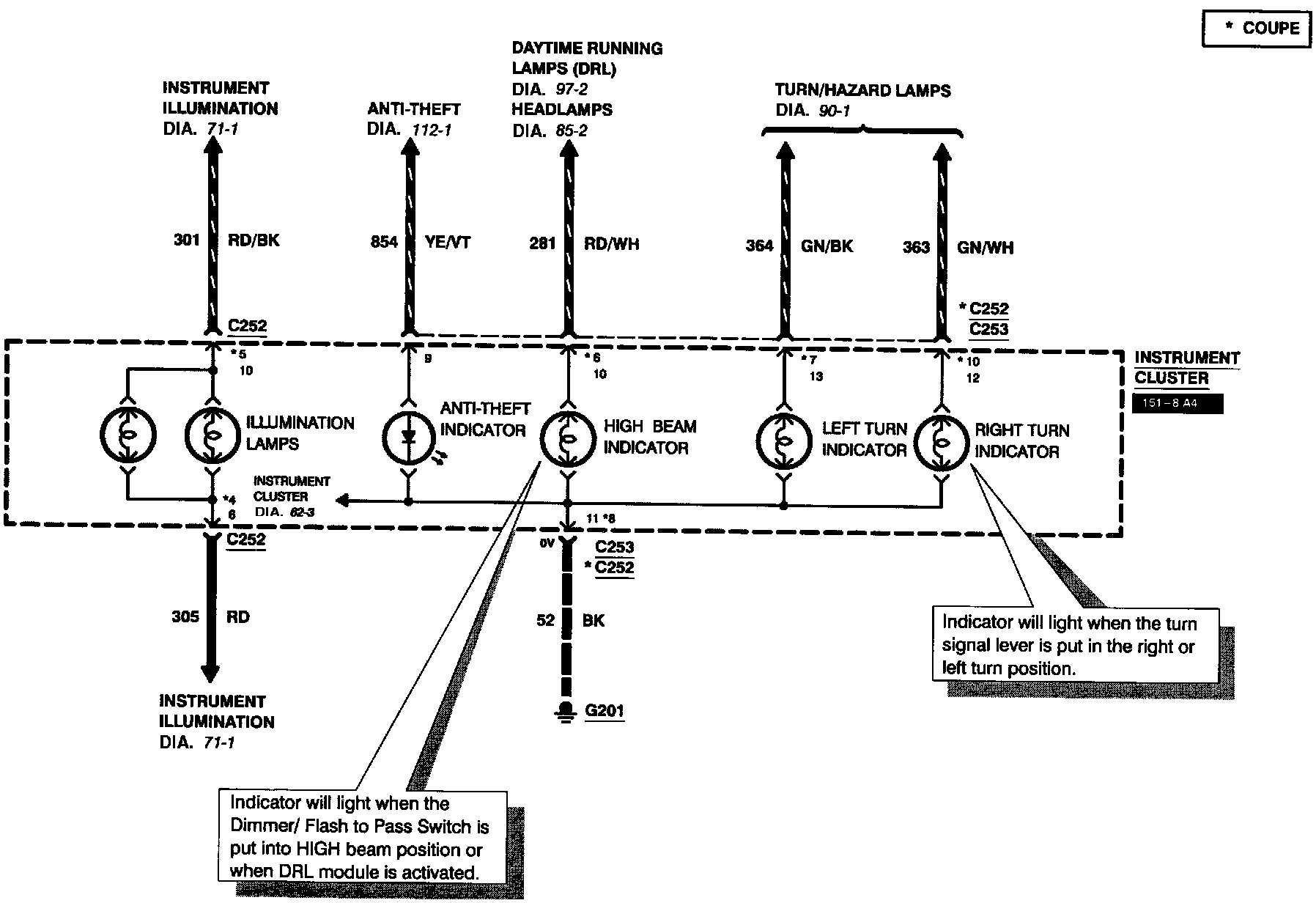

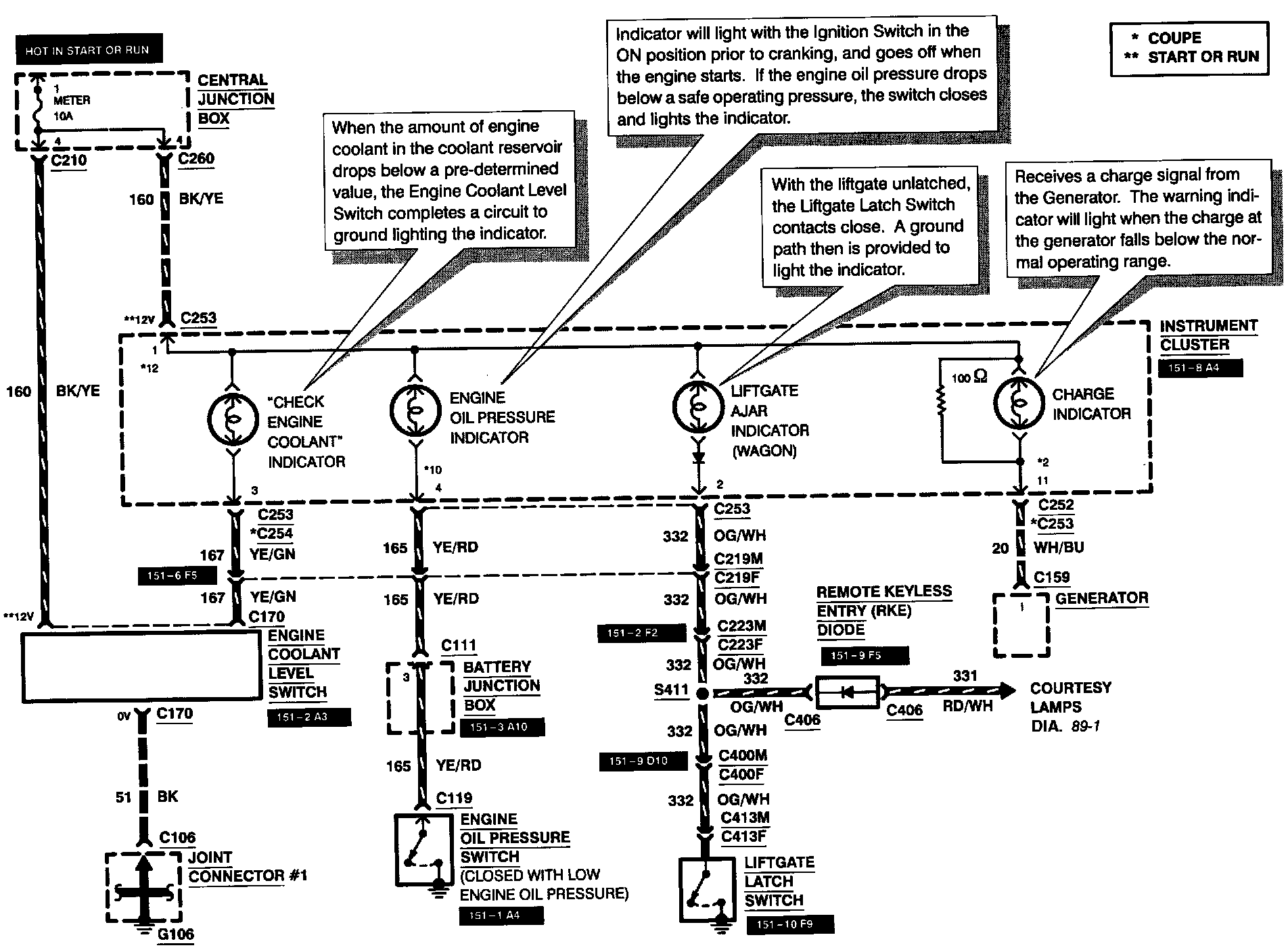

Diagram 62-5:

Anti-Theft Indicator
High Beam Indicator
Illumination Lamps
Instrument Cluster
Left Turn Indicator
Right Turn Indicator
