Cruise Control Servo Cable: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

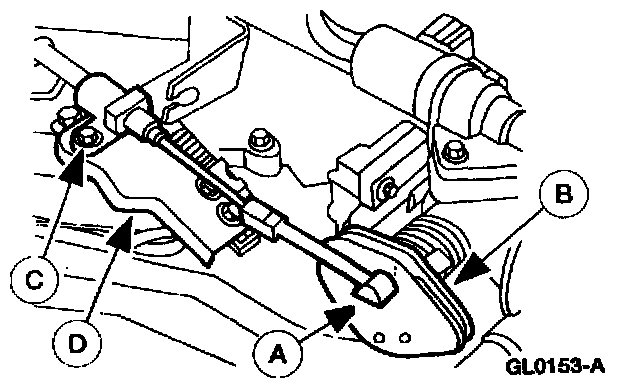

2. Disconnect the (A) speed control actuator cable from the (B) throttle control lever and remove the (C) bolt from the (D) bracket.

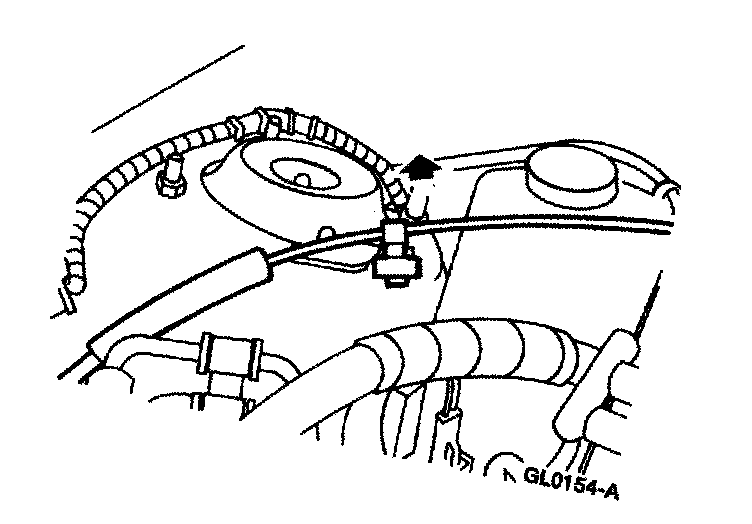

3. Remove the speed control actuator cable retaining clip.

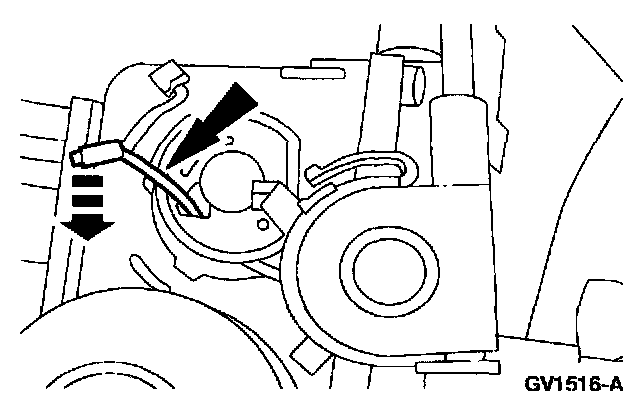

4. Remove the speed control actuator cable cap.
1 Depress the speed control actuator cable cap retaining tab.
2 Rotate the speed control actuator cable cap counterclockwise.







5. Remove the speed control actuator cable.
- Move the spring tab away from the speed control cable end to release the cable from the actuator. Remove the speed control actuator cable.

INSTALLATION

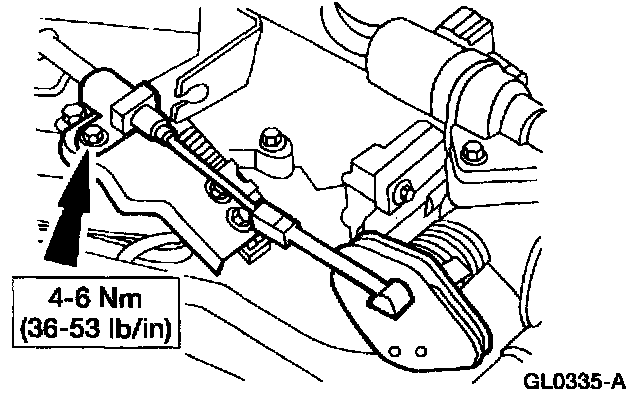

1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy.
