Home >> Mercury >> 1999 >> Tracer L4-122 2.0L SOHC VIN P SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Testing and Inspection >> Pinpoint Tests >> C - Excessive Brake Pedal Effort

C - Excessive Brake Pedal Effort

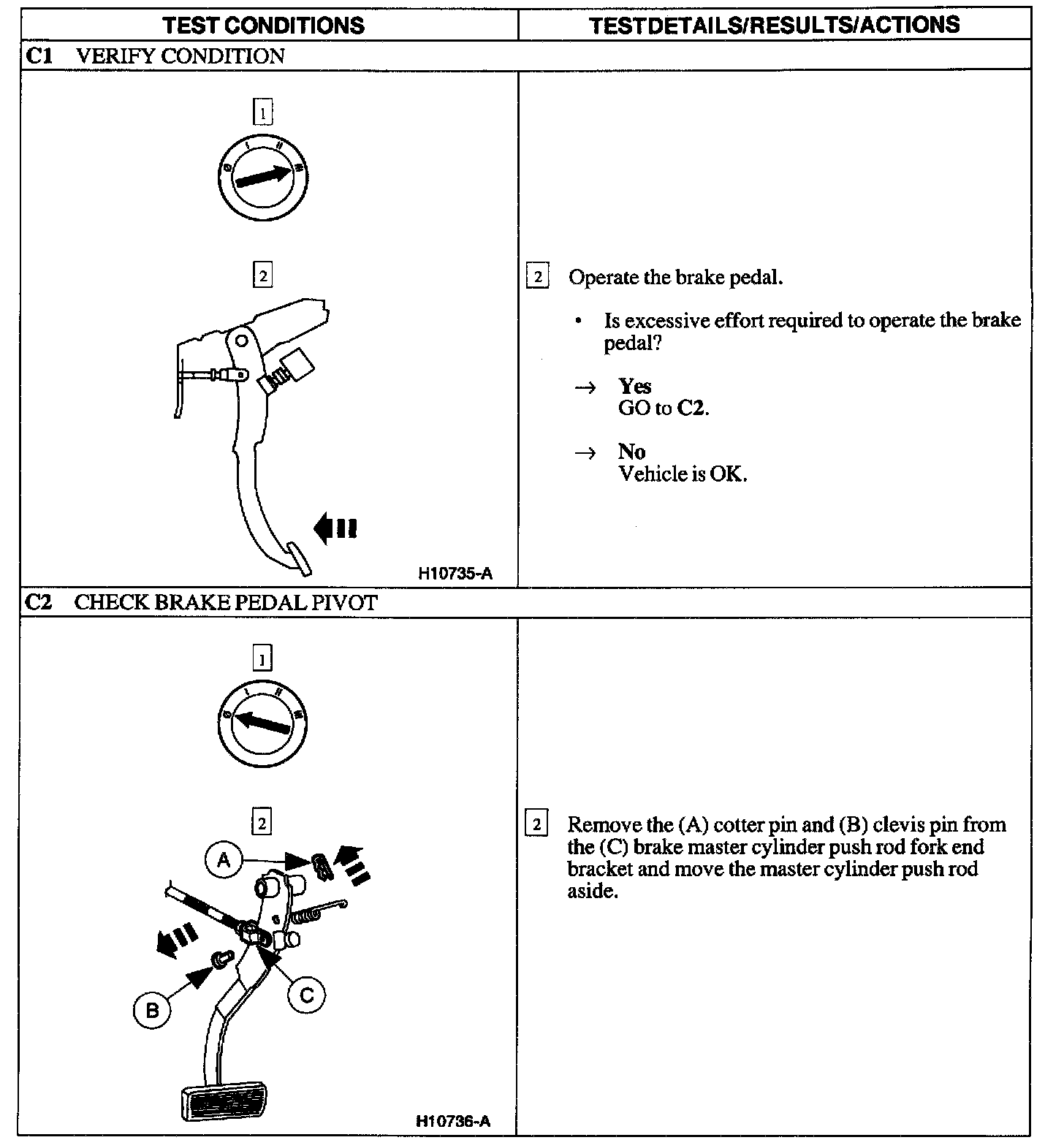

Test C1 - C2:

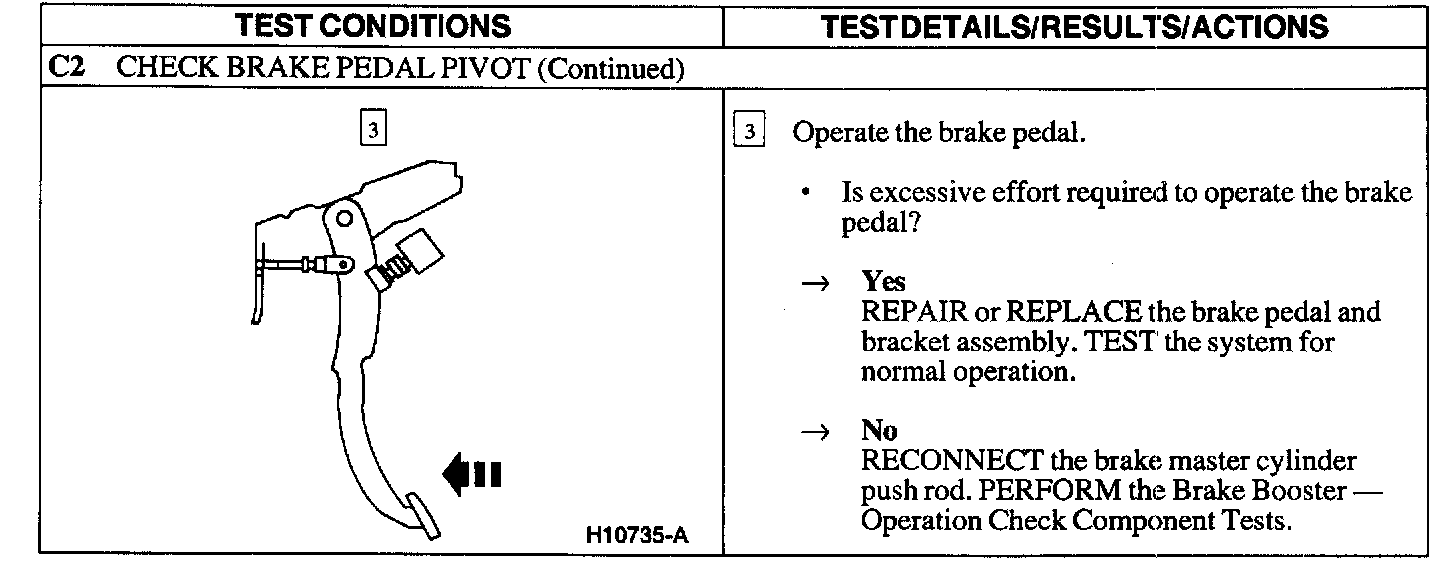

Test C2:
