Front Cable and Conduit

Removal
1. Remove the parking brake control.
2. Raise and support the vehicle.

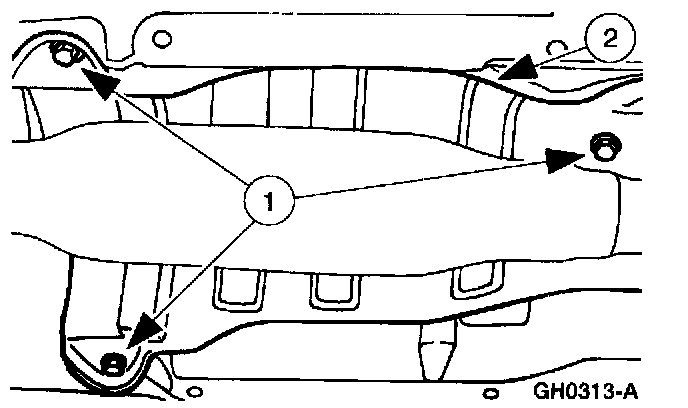

3. Remove the muffler shield.
1 Remove the bolts.
2 Remove the muffler shield.

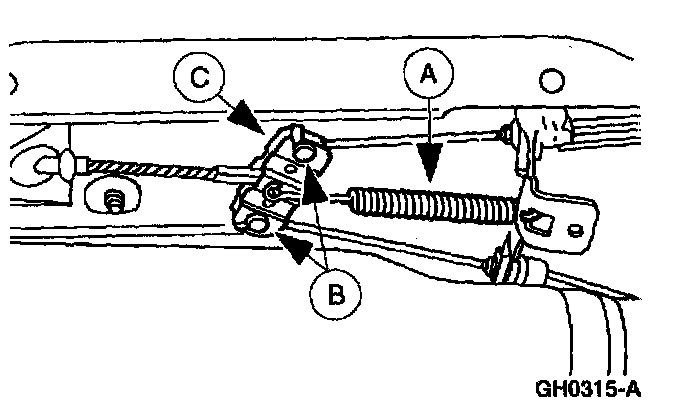

4. Disconnect the (A) parking brake return spring and the (B) LH and RH parking brake rear cable and conduits from the (c) front parking brake cable and conduit.

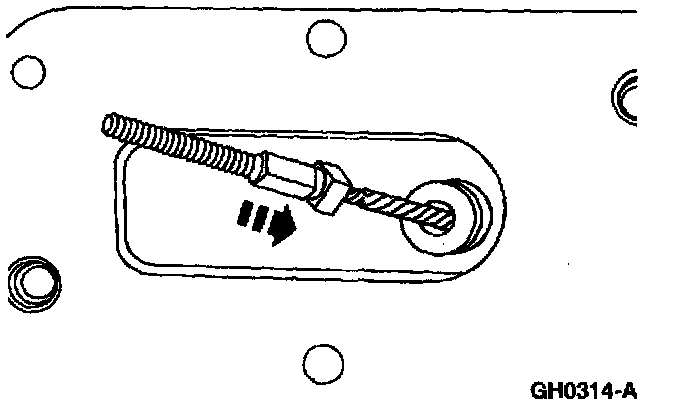

5. Remove the front parking brake cable and conduit from the front floor pan.


Installation

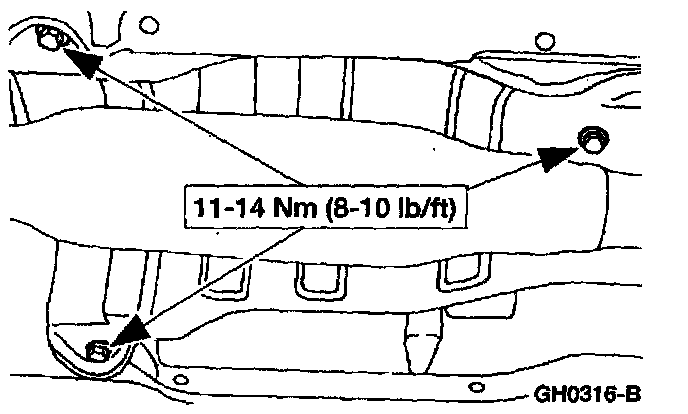

1. To install, reverse the removal procedure.
