FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1999
>>
Tracer L4-122 2.0L SOHC VIN P SFI
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
N Open or Shorted Dump Valve Solenoid
N Open or Shorted Dump Valve Solenoid

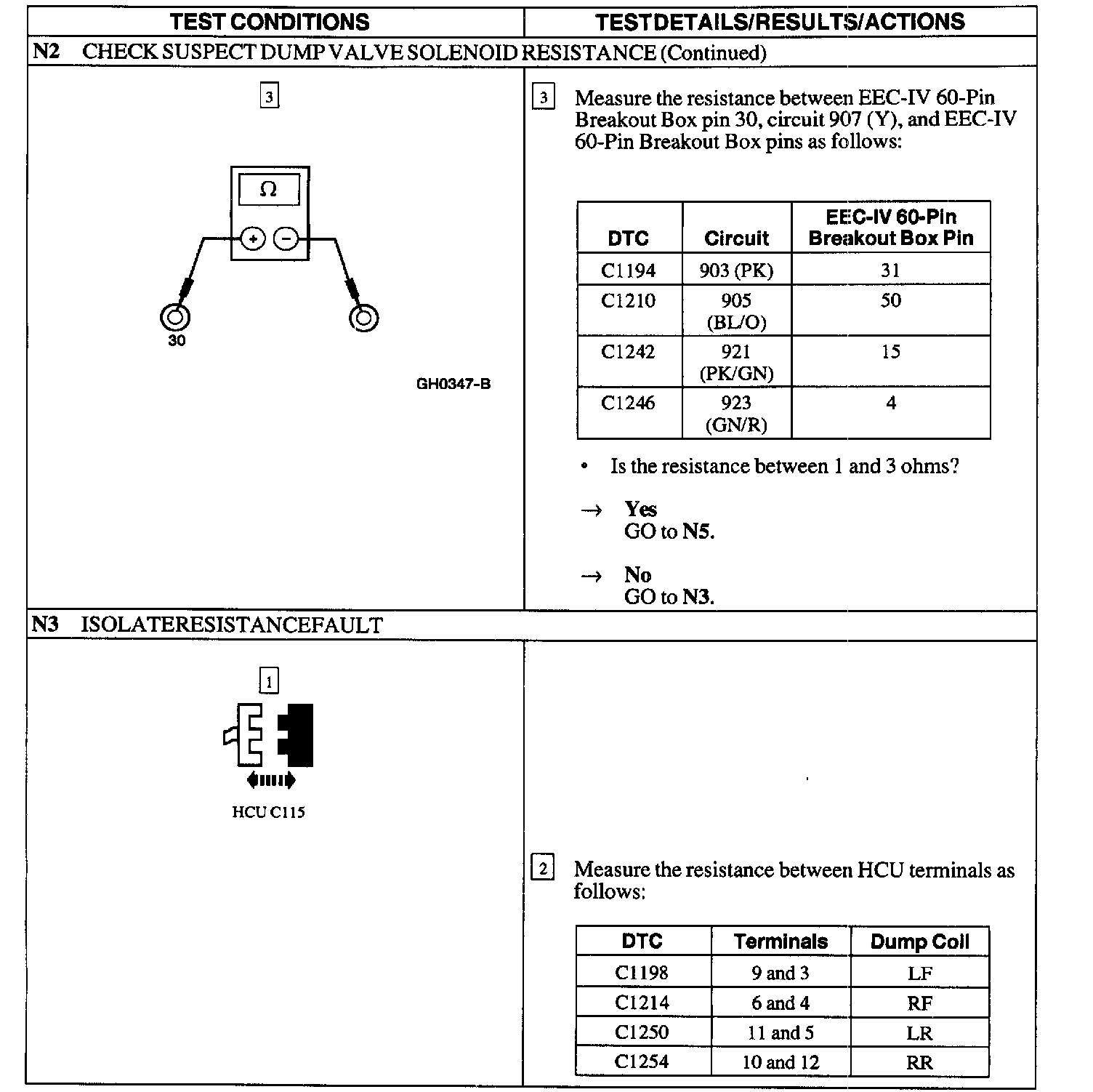

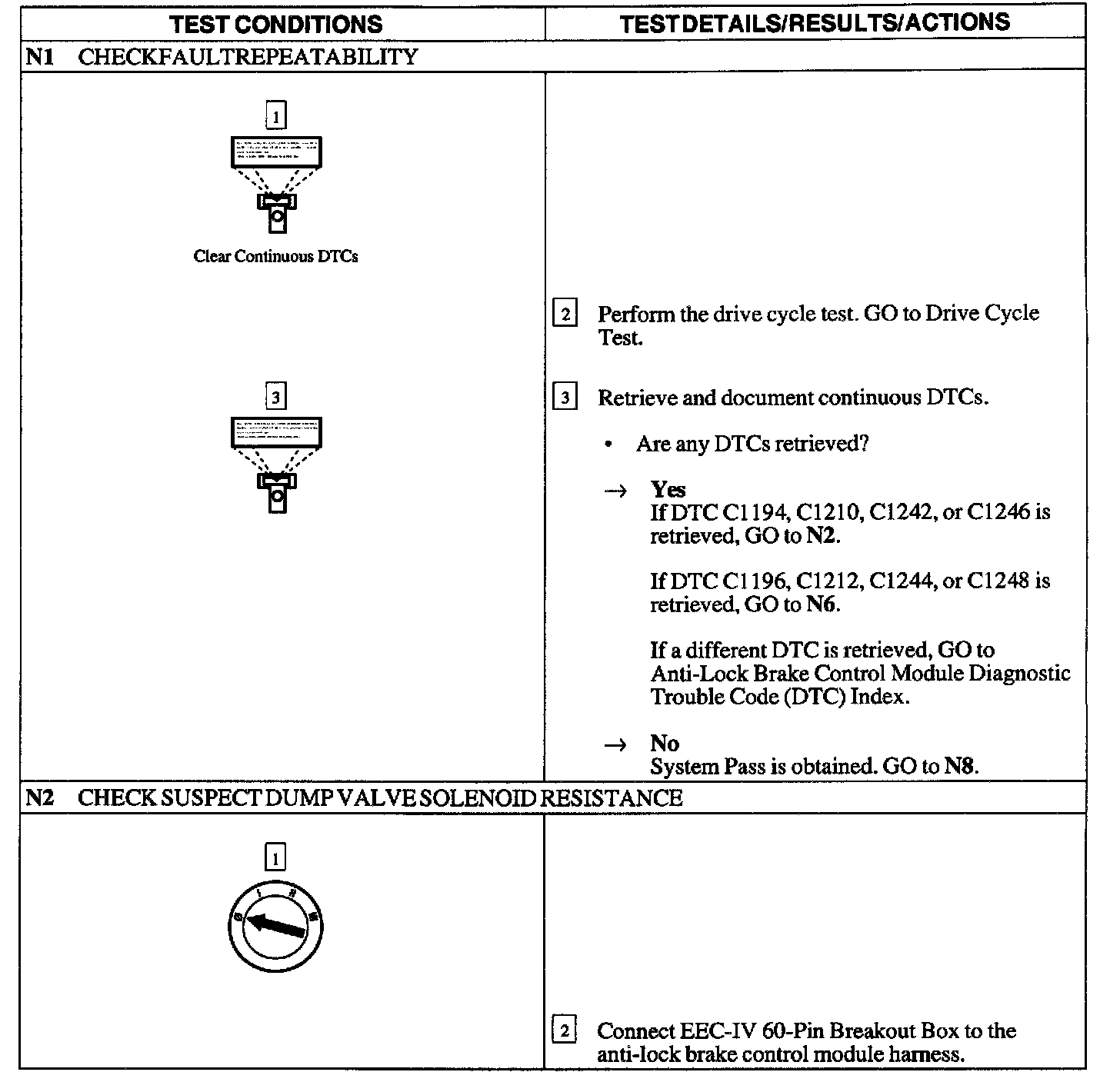

Test N1 - N2:
Test N2 - N3:

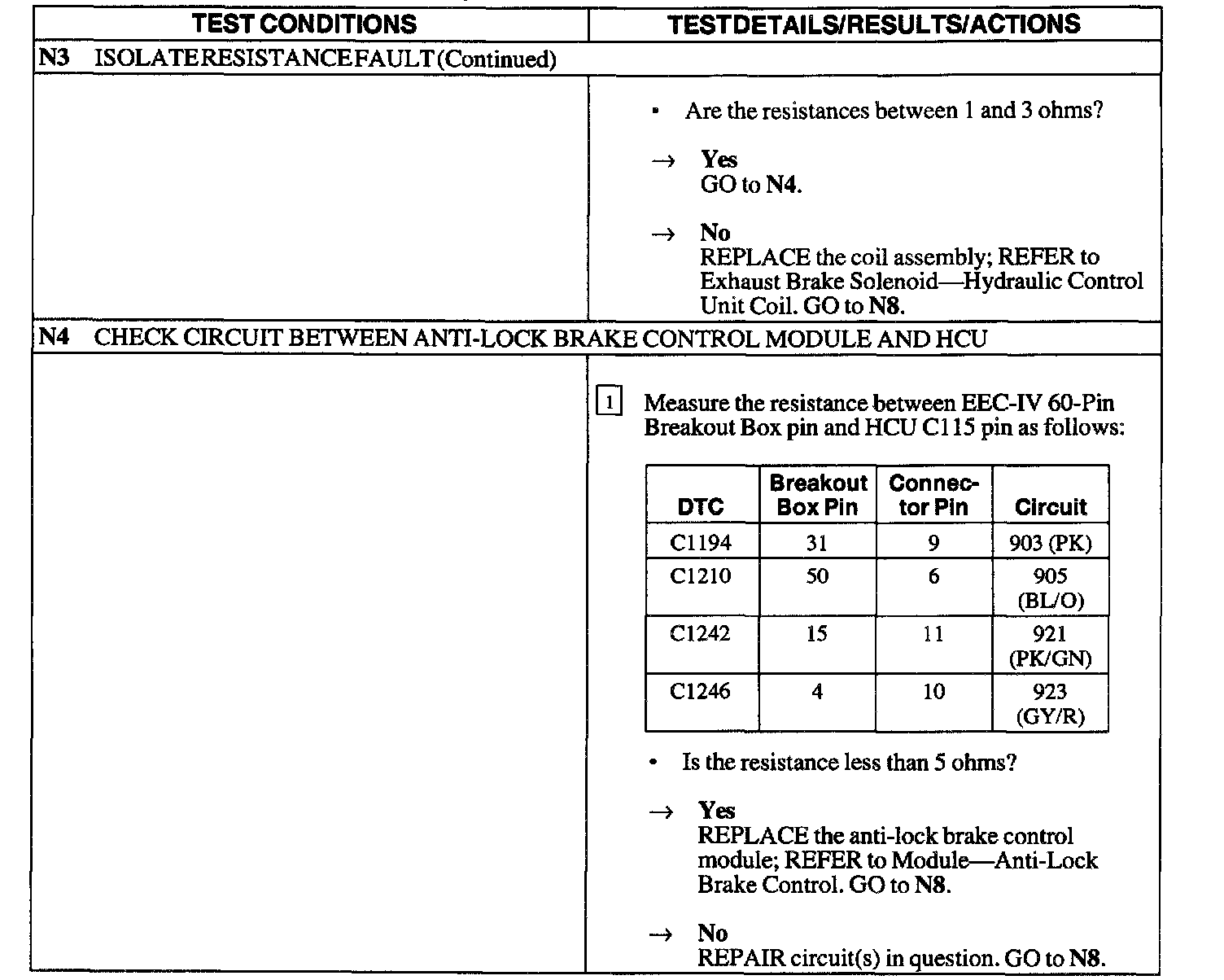

Test N3 - N4:

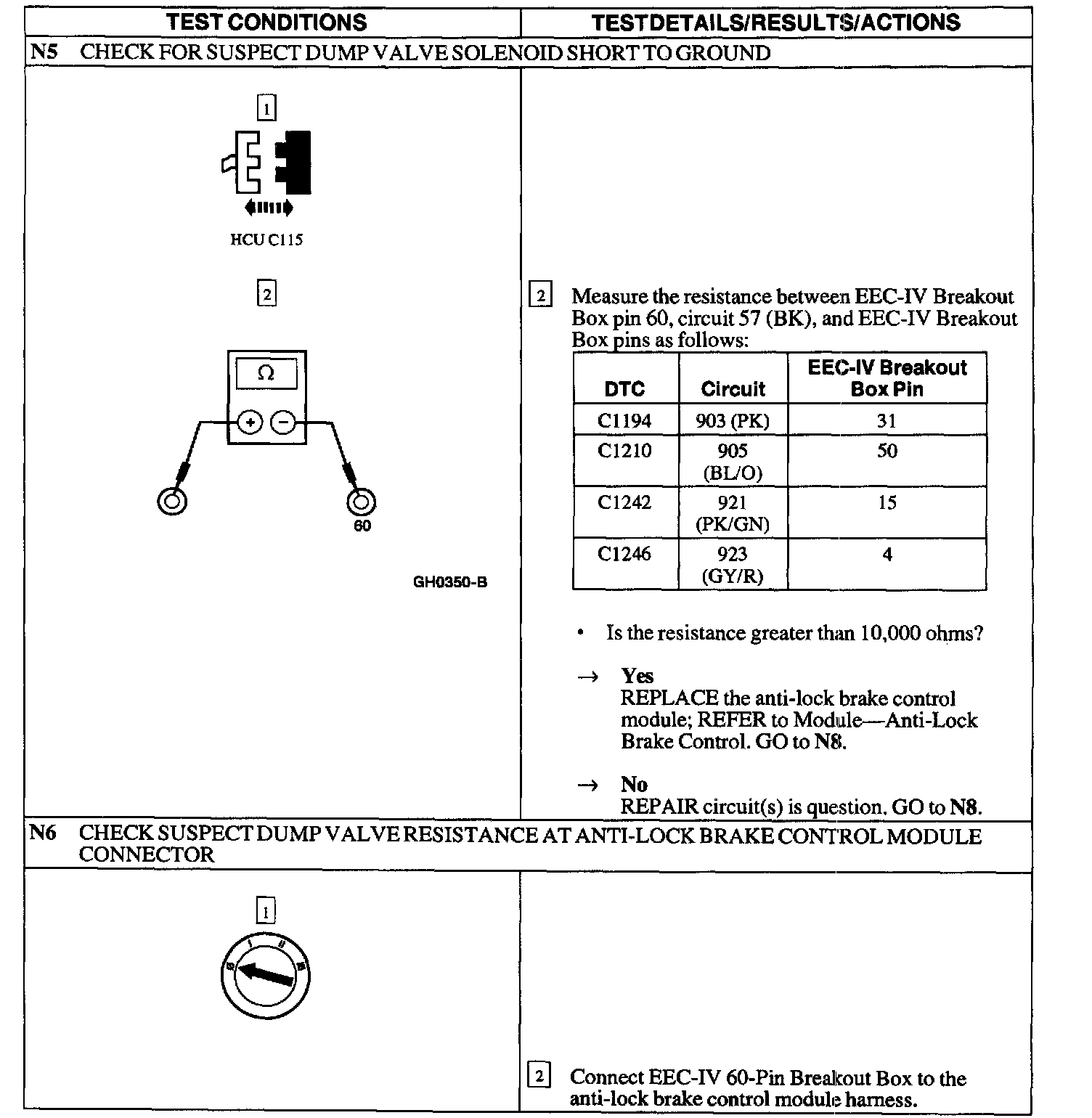

Test N5 - N6:

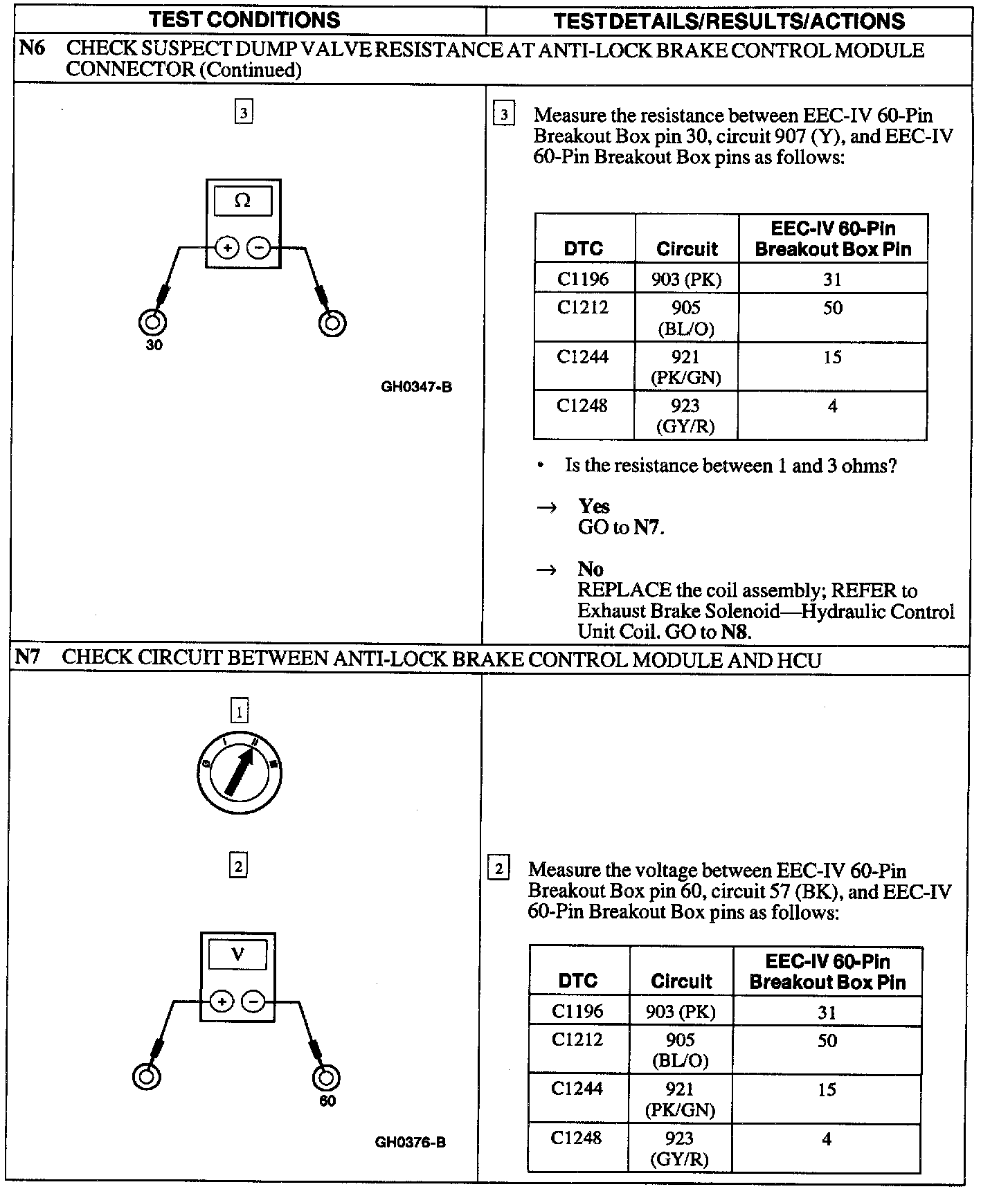

Test N6 - N7:

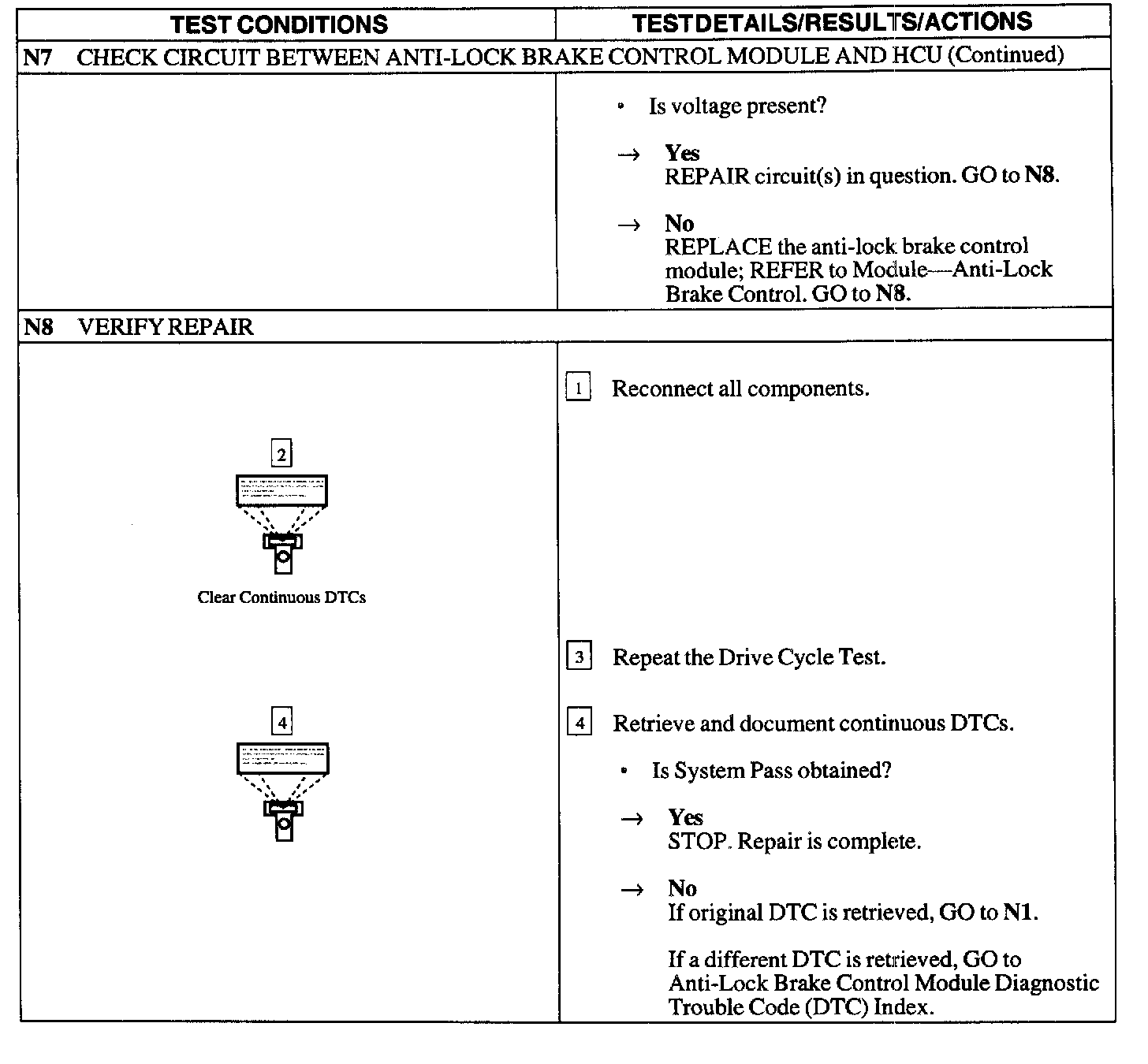

Test N7 - N8:
