FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1999
>>
Tracer L4-122 2.0L SOHC VIN P SFI
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
H DTC C1165, C1175 Check Suspected ABS Brake Circuits for Open
H DTC C1165, C1175 Check Suspected ABS Brake Circuits for Open

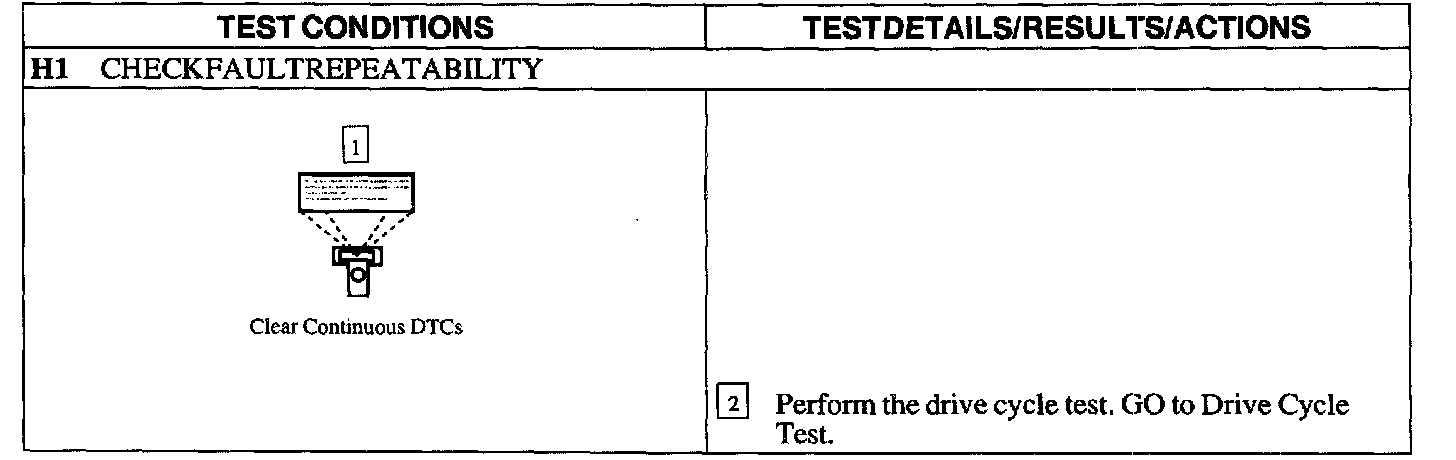

Test H1:

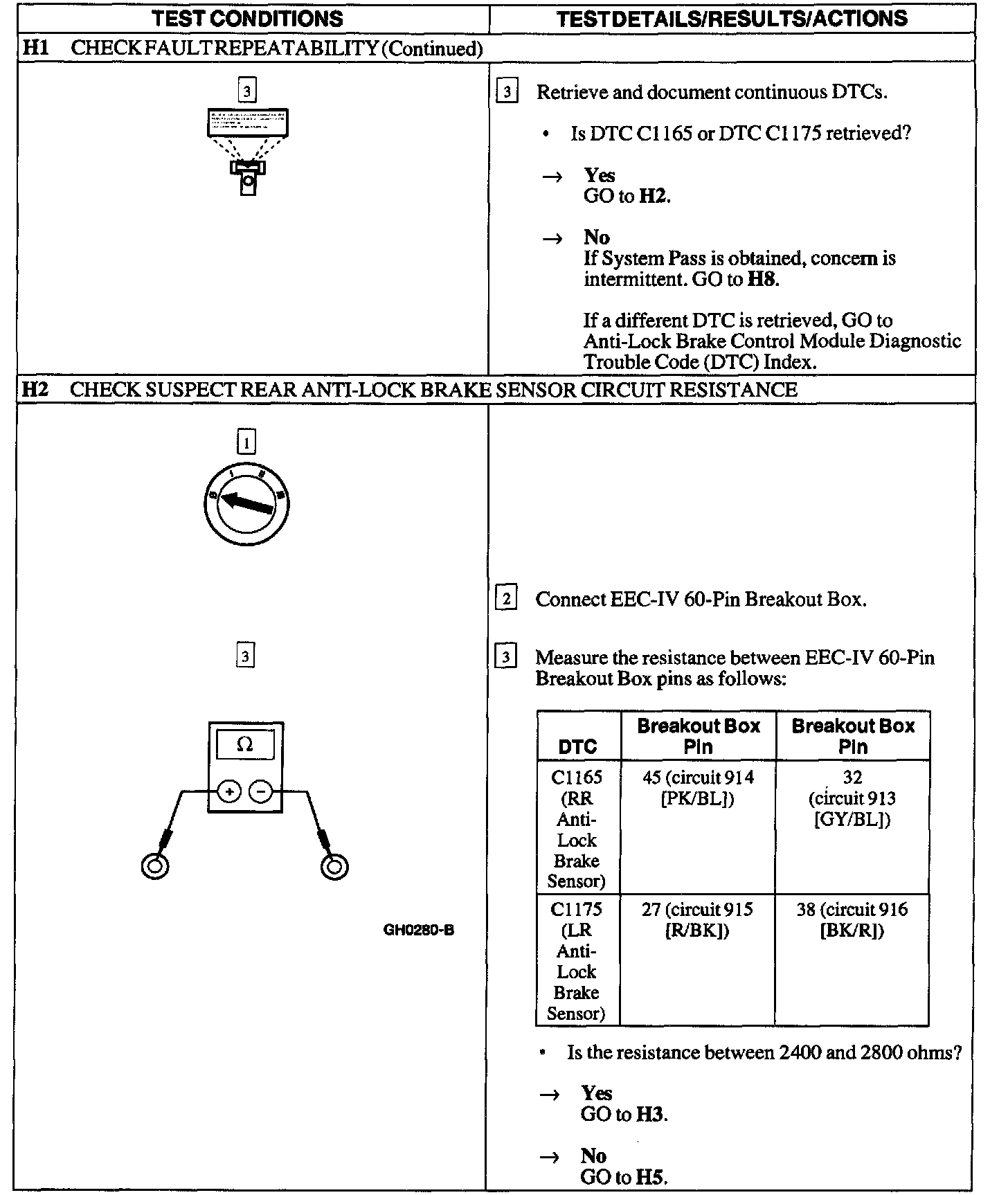

Test H1 - H2:
Test H3 - H4:
Test H5:

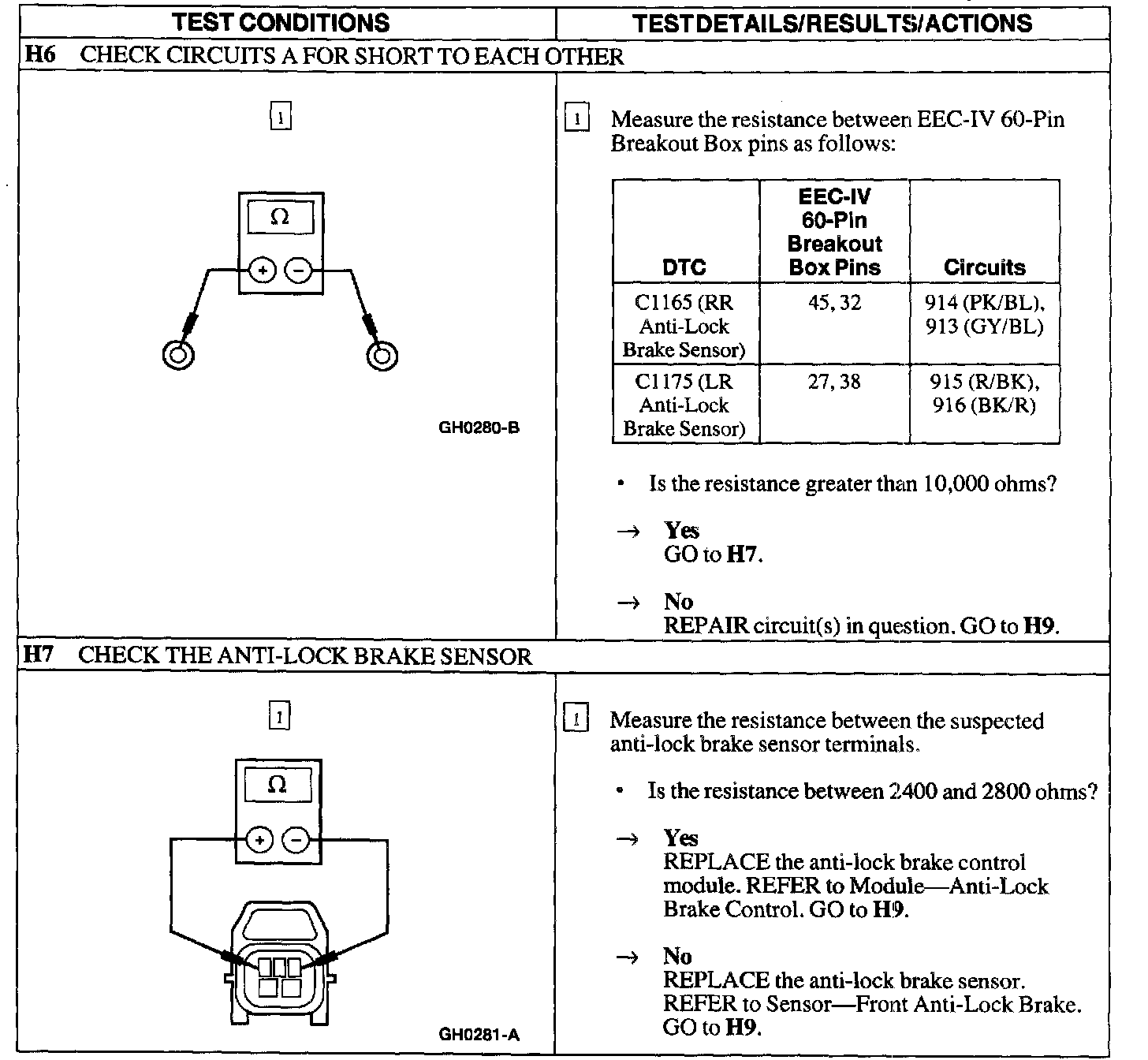

Test H6 - H7:

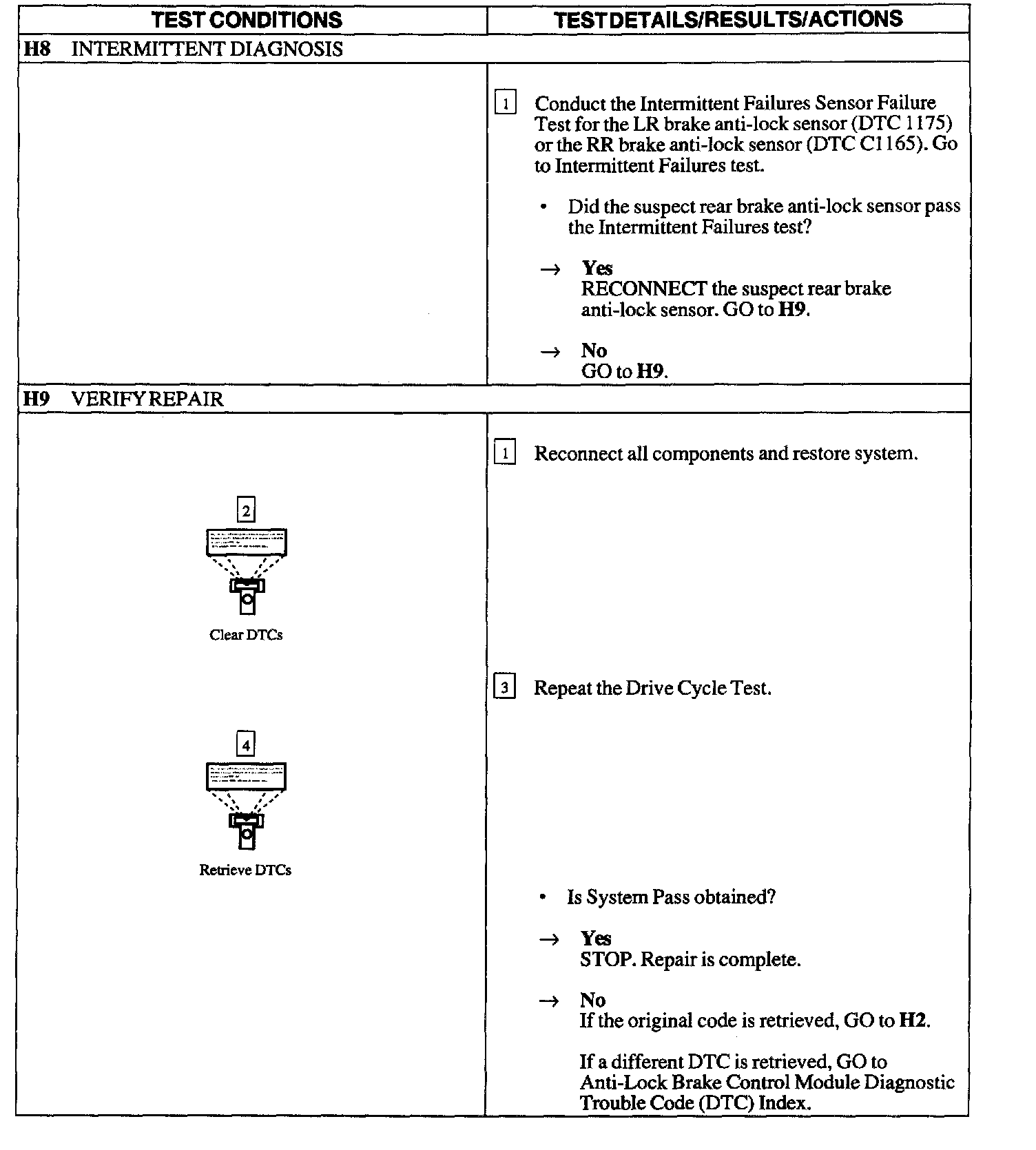

Test H8 - H9:
