Home >> Mercury >> 1999 >> Tracer L4-122 2.0L SOHC VIN P SFI >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Testing and Inspection >> Pinpoint Tests >> F: Sliding Roof Panel Will Not Stop In the Vent Position

F: Sliding Roof Panel Will Not Stop In the Vent Position

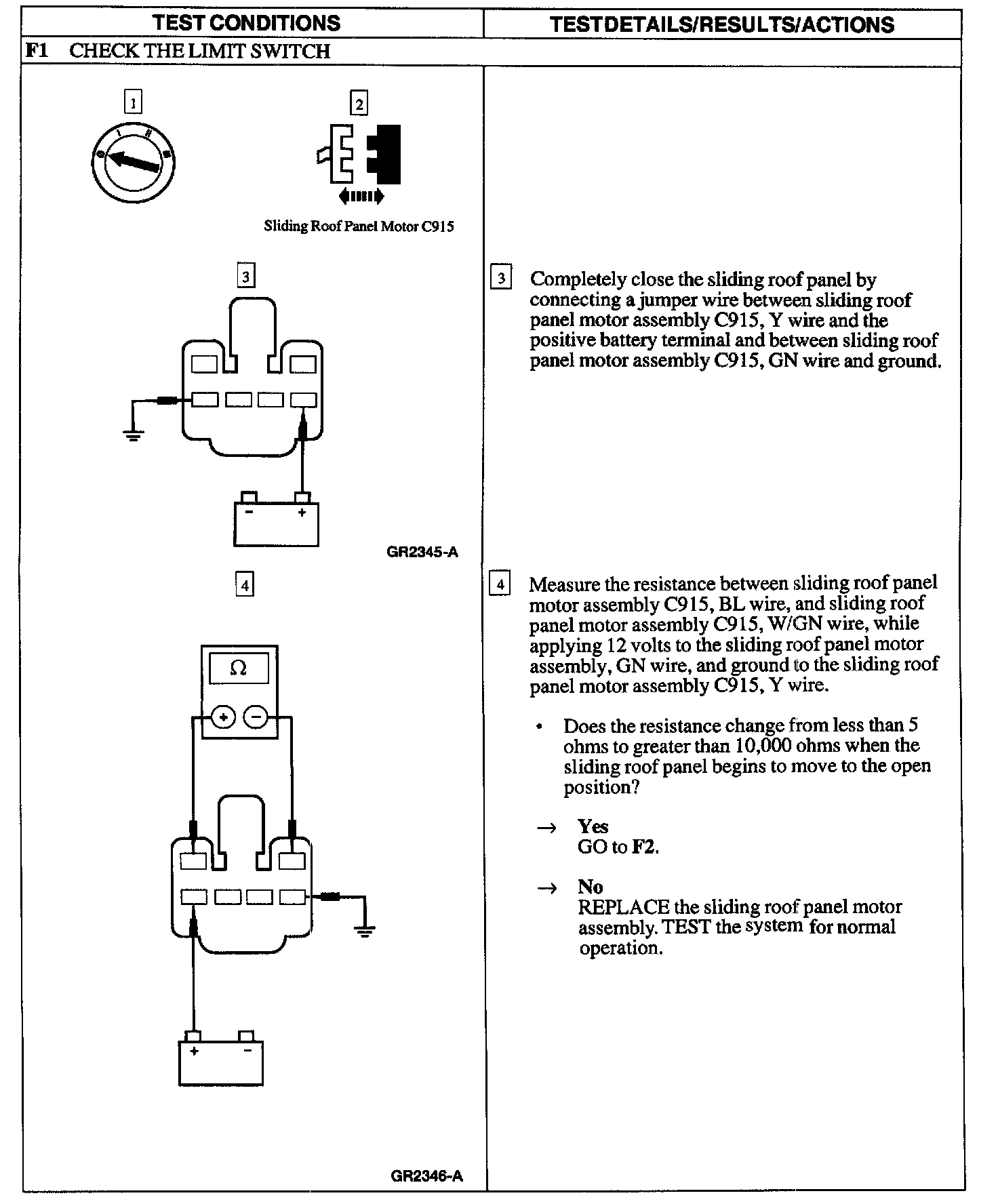

F1:

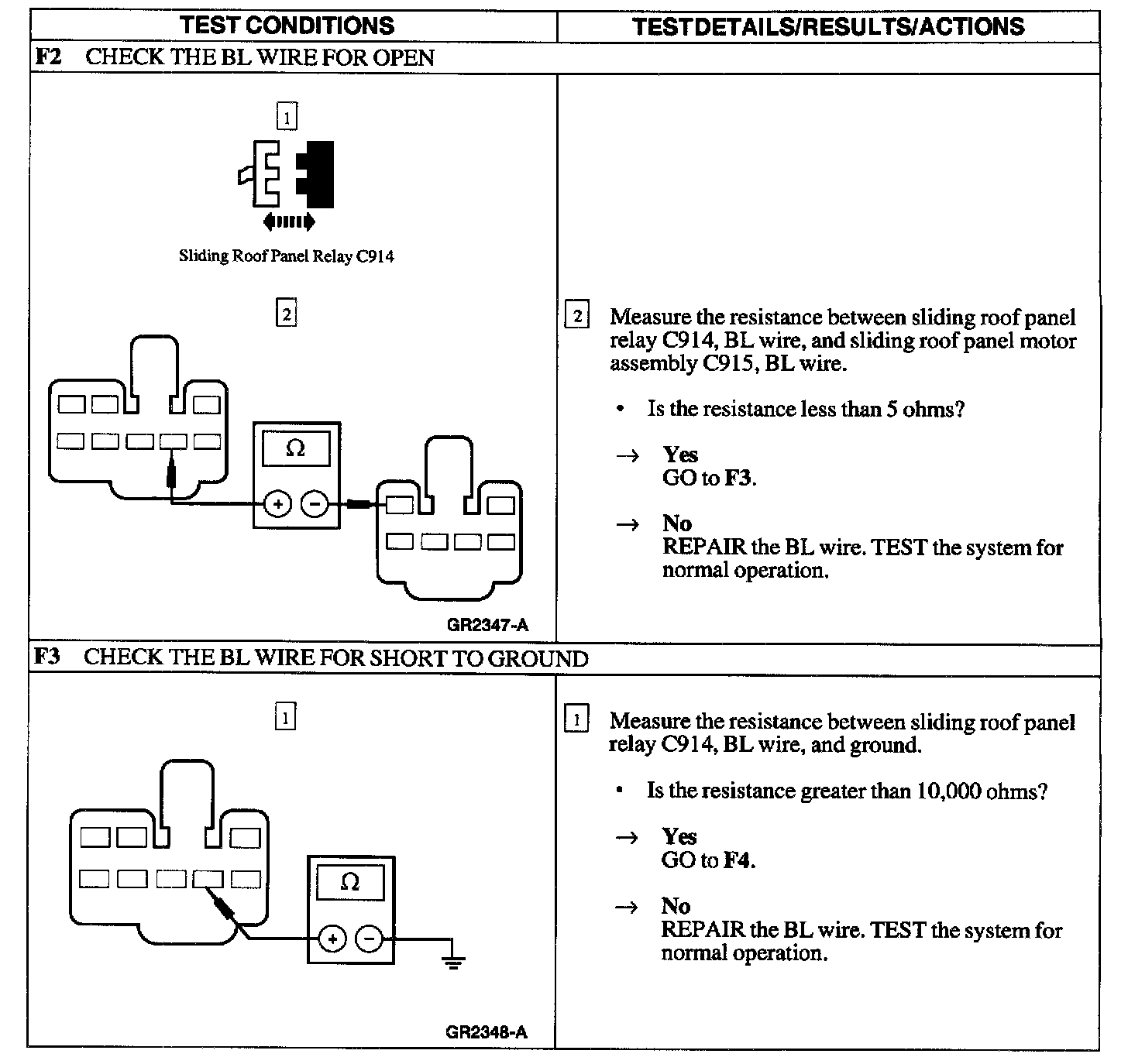

F2 - F3:

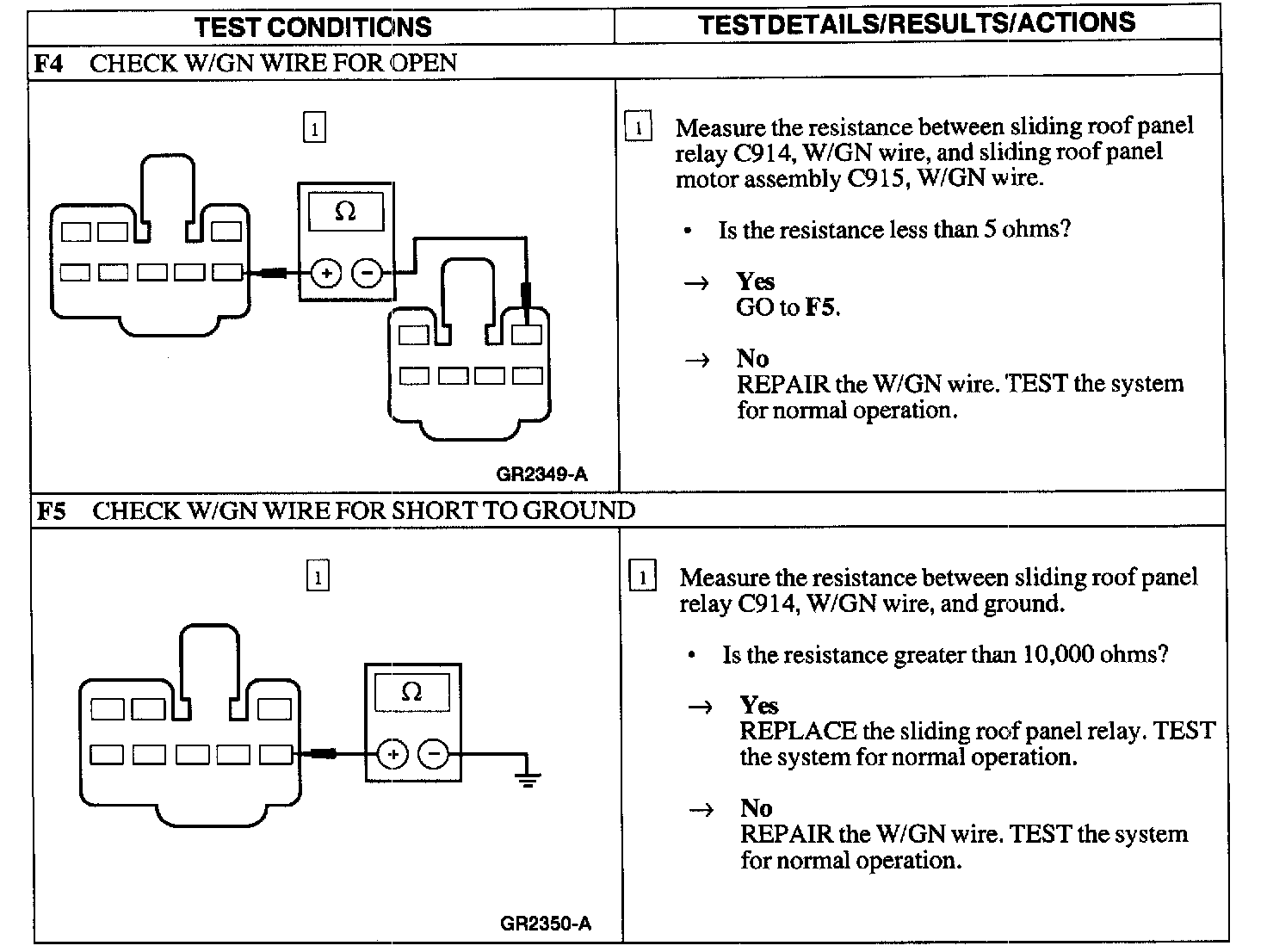

F4 - F5:
