Wagon

Seat Belt Bolt Bit:

SPECIAL TOOL(S)

REMOVAL
1. Remove the quarter trim panel.







2. Remove the rear header trim panel.







3. Disconnect the rear seat safety belt guide.
1 Open the front safety belt guide cover.
2 Use Safety Belt Bolt Bit to remove the bolt.
3 Disconnect the rear seat safety belt guide.

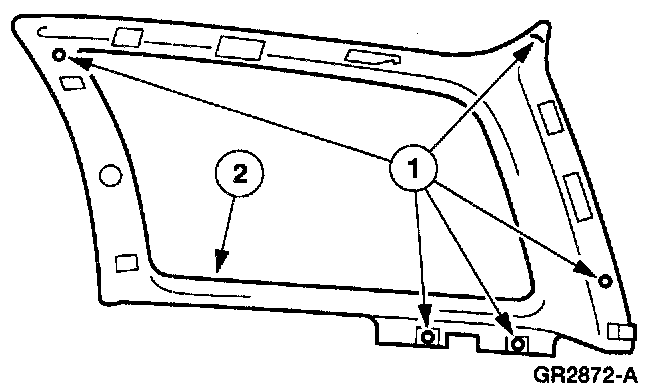

4. Remove the quarter window trim panel.
1 Remove the pushpins.
2 Remove the quarter window trim panel.

INSTALLATION







1. To install, reverse the removal procedure.
