Sedan

Seat Belt Bolt Bit:

SPECIAL TOOL(S)

REMOVAL
1. Remove the quarter trim panel.

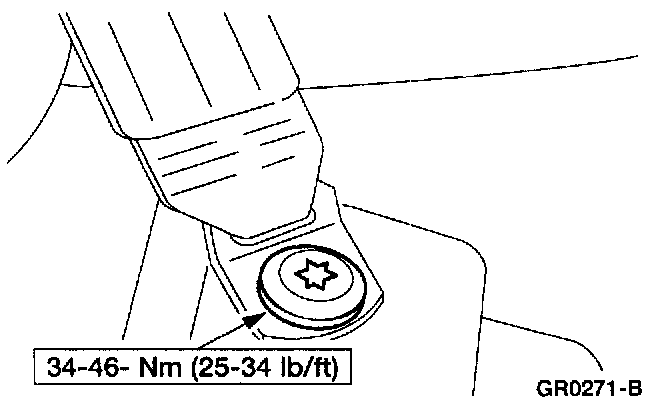

2. Disconnect the rear seat safety belt floor anchor bracket.
1 Use Safety Belt Bolt Bit to remove the bolt.
2 Disconnect the rear seat safety belt floor anchor bracket.

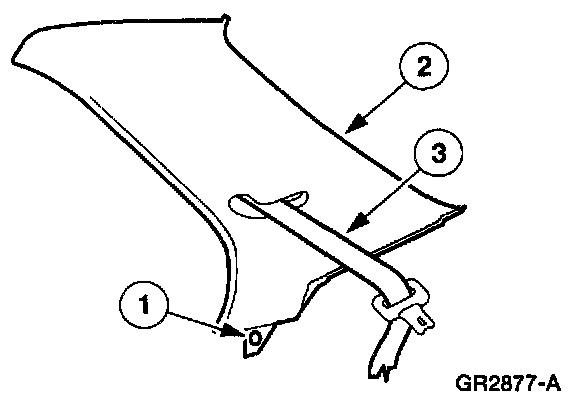

3. Remove the quarter window trim panel.
1 Remove the pushpin.
2 Remove the quarter window trim panel.
3 Feed the safety belt webbing through the slot in the panel.

INSTALLATION







1. To install, reverse the removal procedure.
