Coupe

Seat Belt Bolt Bit:

SPECIAL TOOL(S)

REMOVAL
1. Remove the quarter trim panel.

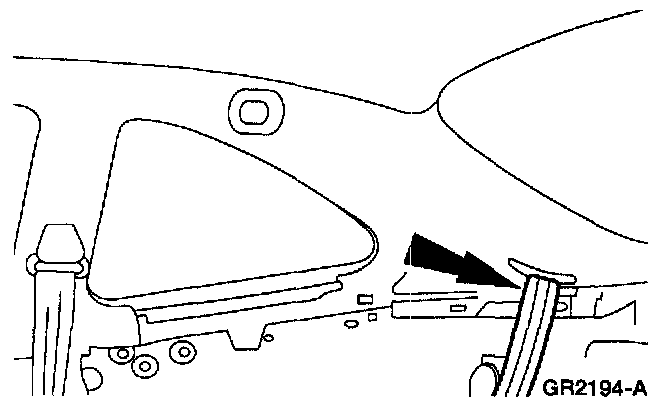

2. Position the rear safety belt aside.

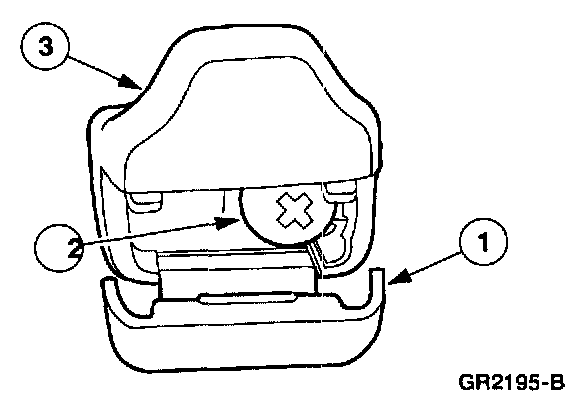

3. Remove the coat hook.
1 Open the coat hook screw cover.
2 Remove the screw.
3 Remove the coat hook.

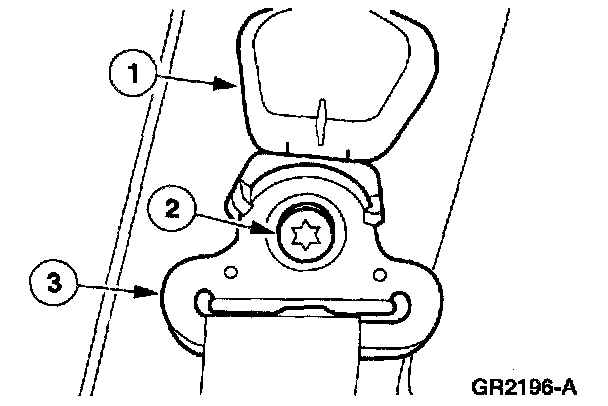

4. Remove the front safety belt guide.
1 Open the front safety belt guide cover.

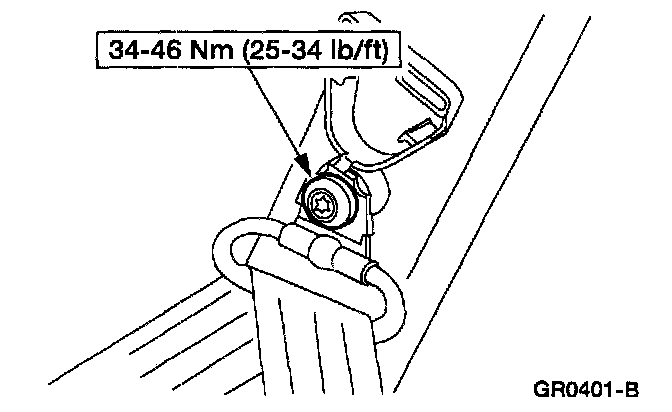

2 Use Safety Belt Bolt Bit to remove the bolt.
3 Remove the front safety belt guide.

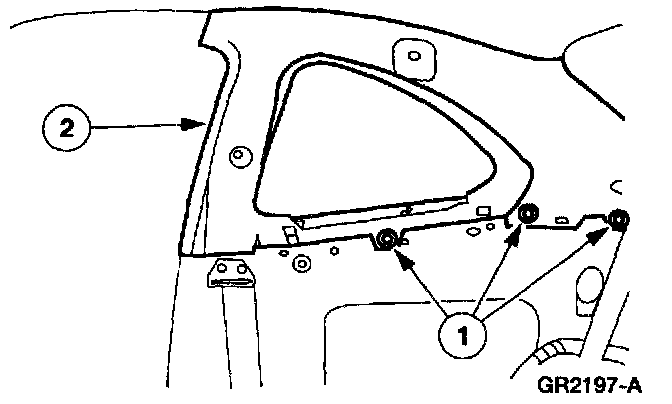

5. Remove the quarter window trim panel.
1 Remove the pushpins.
2 Remove the quarter window trim panel.

INSTALLATION







1. To install, reverse the removal procedure.
