Wagon

Seat Belt Bolt Bit:

SPECIAL TOOL(S)

REMOVAL

NOTE: RH shown, LH similar.

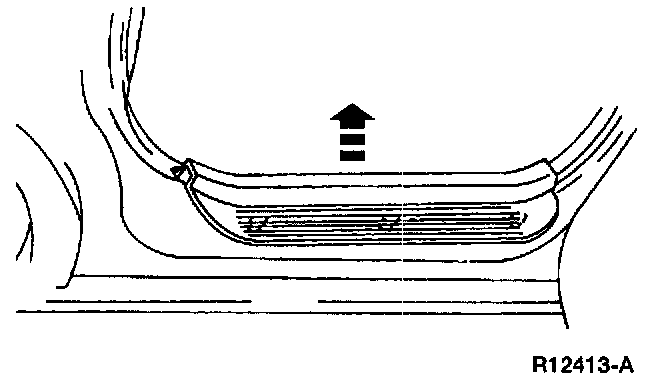

1. Remove the rear door scuff plate.

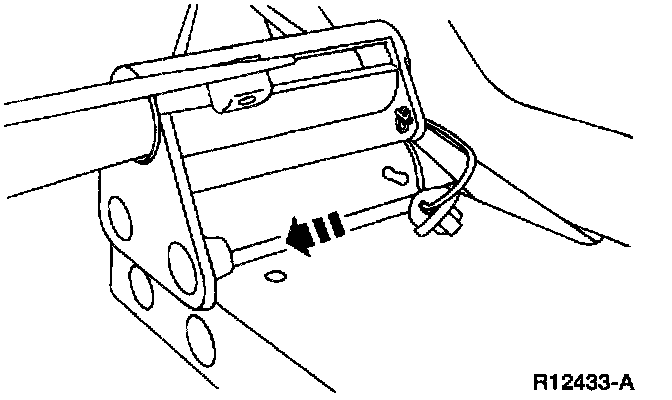

2. Disconnect the rear seat safety belt floor anchor bracket.
1 Use Safety Belt Bolt Bit to remove the bolt.
2 Disconnect the rear seat safety belt floor anchor bracket.
3. Remove the rear side seat.
4. Remove the rear seat back.







5. Remove the luggage compartment cover.

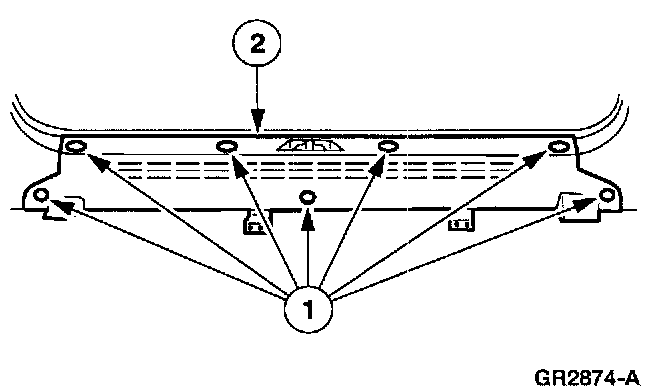

6. Remove the trunk end trim.
1 Remove the pushpins.
2 Remove the trunk end trim.

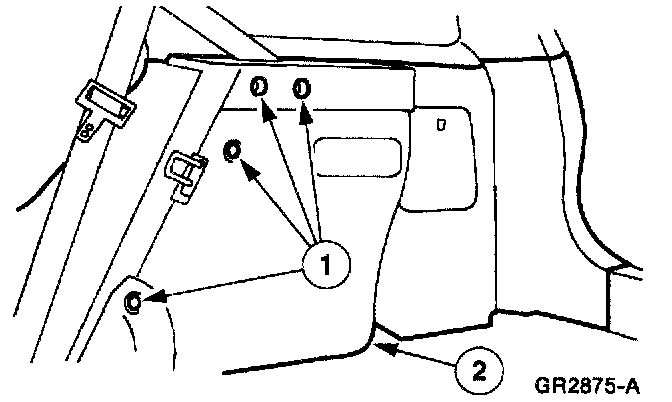

7. Remove the quarter trim panel.
1 Remove the pushpins.
2 Remove the quarter trim panel.

INSTALLATION







1. To install, reverse the removal procedure.
