Coupe

REMOVAL







1. Remove the LH and RH front door scuff plates.







2. Remove the rear seat cushion.
1 Release the two front retaining clips.
2 Remove the rear seat cushion.

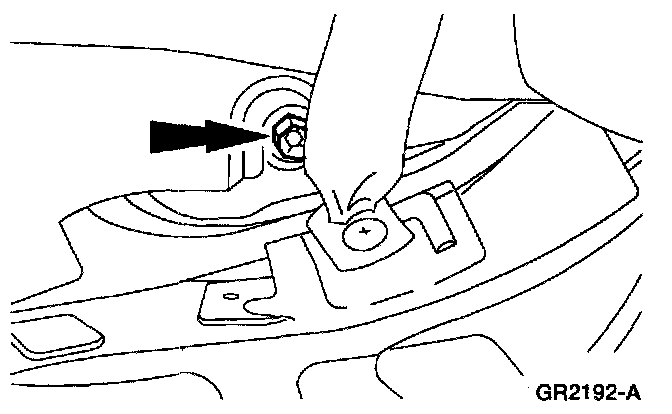

3. Remove the quarter trim panel pushpin.







4. Remove the quarter trim panel lower retaining nut.

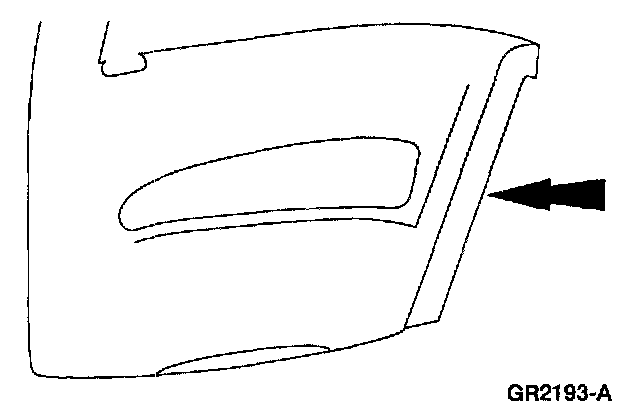

5. Remove the quarter trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
