Rear Shelf: Service and Repair

REMOVAL







1. Disconnect the battery ground cable.

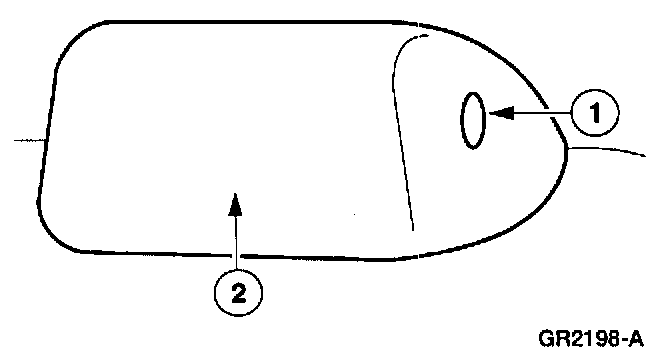

2. Remove the high mount stop lamp cover.
1 Remove the two pushpins.
2 Remove the high mount stop lamp cover.

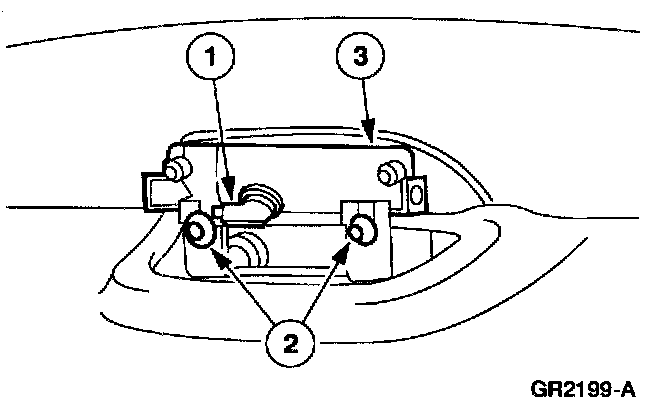

3. Remove the high mount stop lamp.
1 Disconnect the electrical connector.
2 Remove the bolts.
3 Remove the high mount stop lamp.

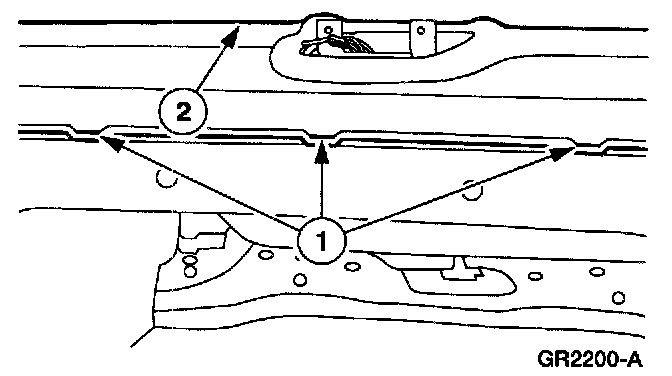

4. Remove the package tray trim panel.
1 Remove the pushpins.
2 Remove the package tray trim panel.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.
