Rear Door Latch: Service and Repair

REMOVAL
1. Remove the rear door trim panel.







2. Remove the screw from the door pull bracket.







3. Remove the watershield.

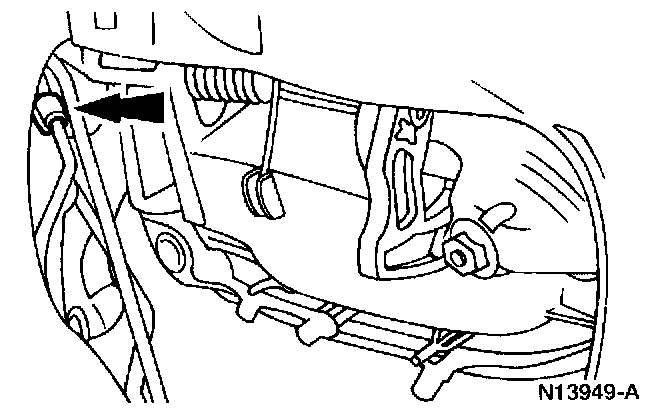

4. Detach the door latch rod retainer clip.
5. If equipped with power door locks, detach the actuator rod.

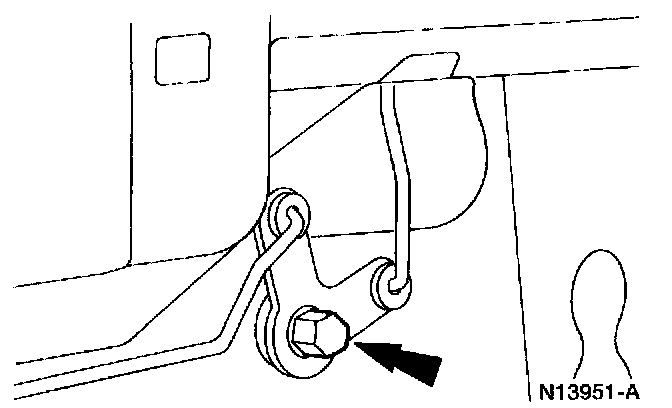

6. Detach the bellcrank rod from the door.

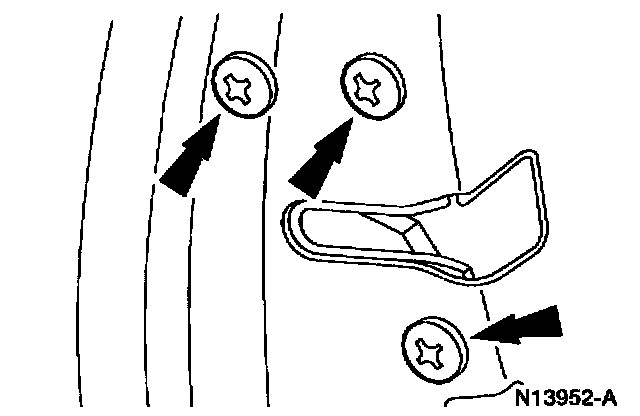

7. Remove the screws from the door latch and remove the latch and the bellcrank rod.

INSTALLATION

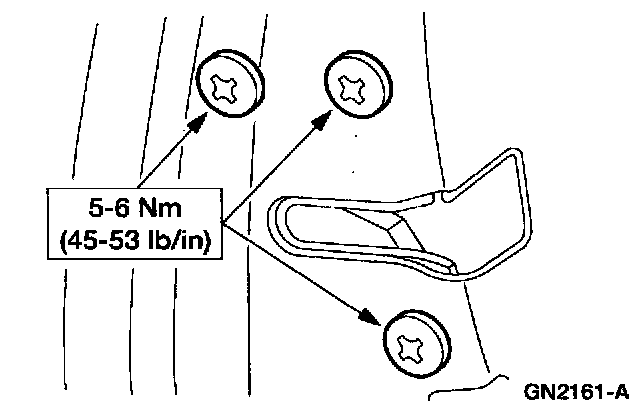

1. To install, reverse the removal procedure.
