Front Washer Pump and Reservoir

REMOVAL
1. Remove radiator coolant recovery reservoir.
2. Disconnect wiring connector from windshield washer reservoir.

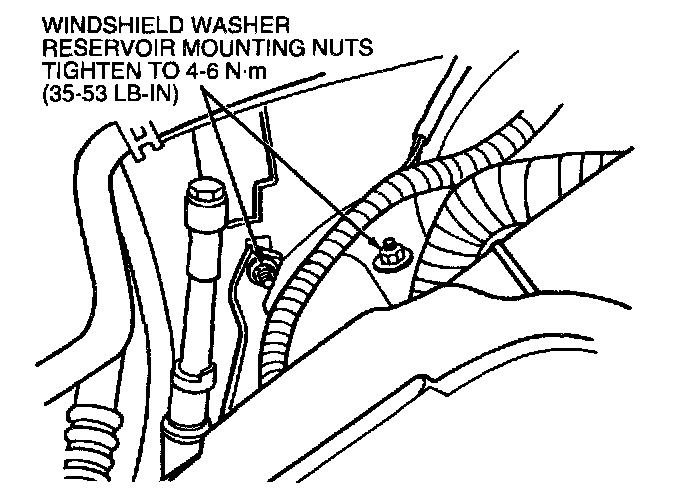

3. Remove two nuts near suction accumulator/drier retaining windshield washer reservoir to body.
4. Raise vehicle on hoist.
5. Working through RH front wheel opening, remove front half of front fender splash shield.

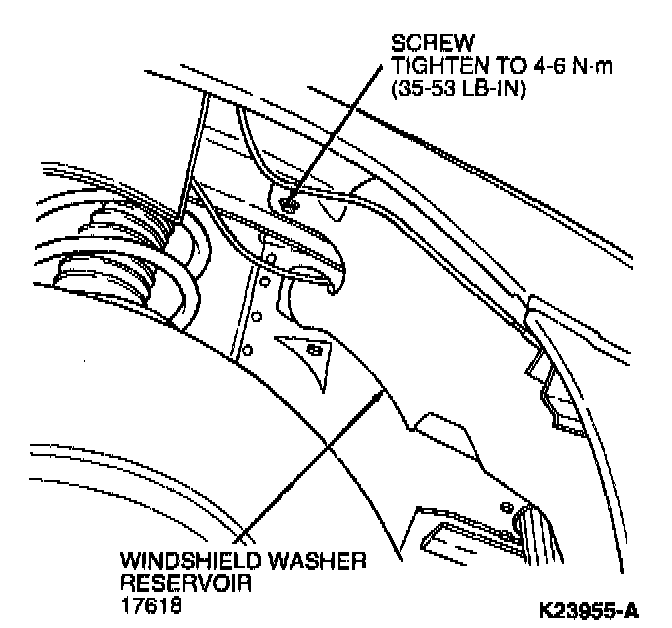

6. Remove screw retaining windshield washer reservoir to inner fender.

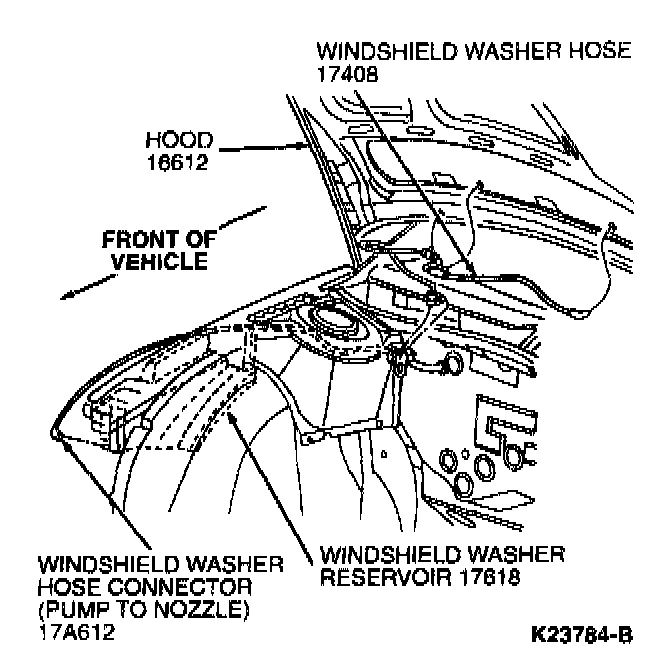

7. Disconnect windshield washer hose connectors.







8. Disconnect windshield washer hose.

NOTE: Windshield washer reservoir will drain with window washer hose disconnected.







9. Remove windshield washer reservoir from vehicle.

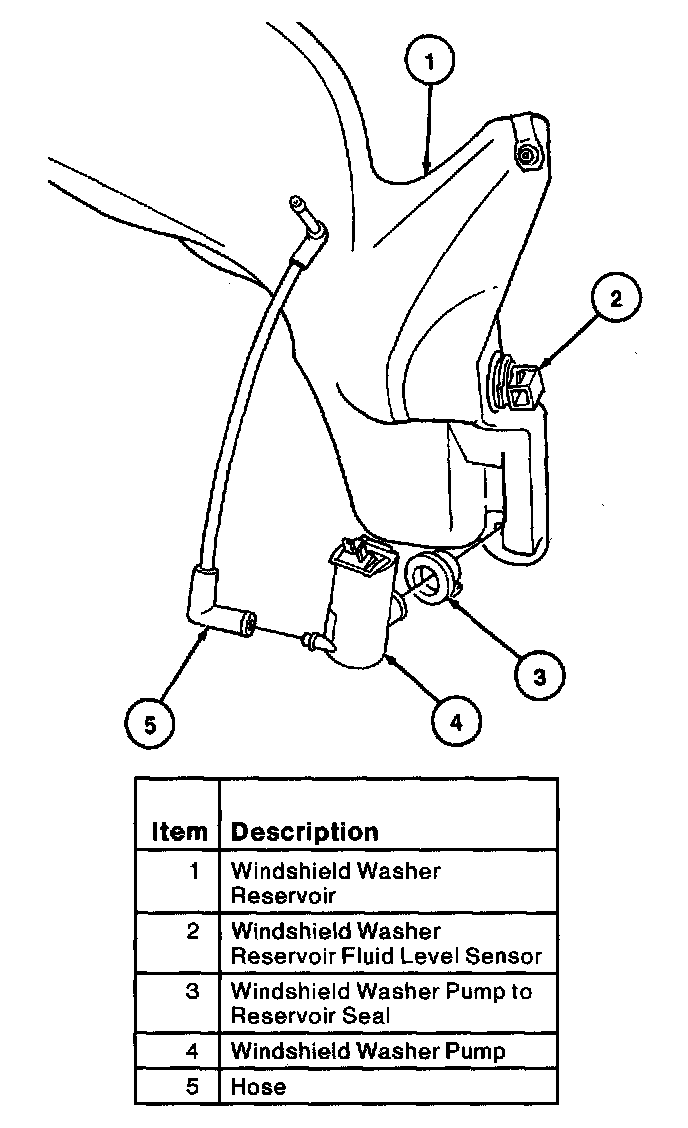

10. Remove windshield washer pump by pulling out of cavity in windshield washer reservoir.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Lubricate inside diameter of windshield washer pump to reservoir seal with soapy solution and insert windshield washer pump into bottle pump cavity until it is firmly seated in seal.
3. Tighten retaining screws to 4-6 Nm (35-53 lb-in). Fill windshield washer reservoir with fluid.
