Inside






REMOVAL
1. Open rear door.
2. Remove front door trim panel and front door window garnish moulding.

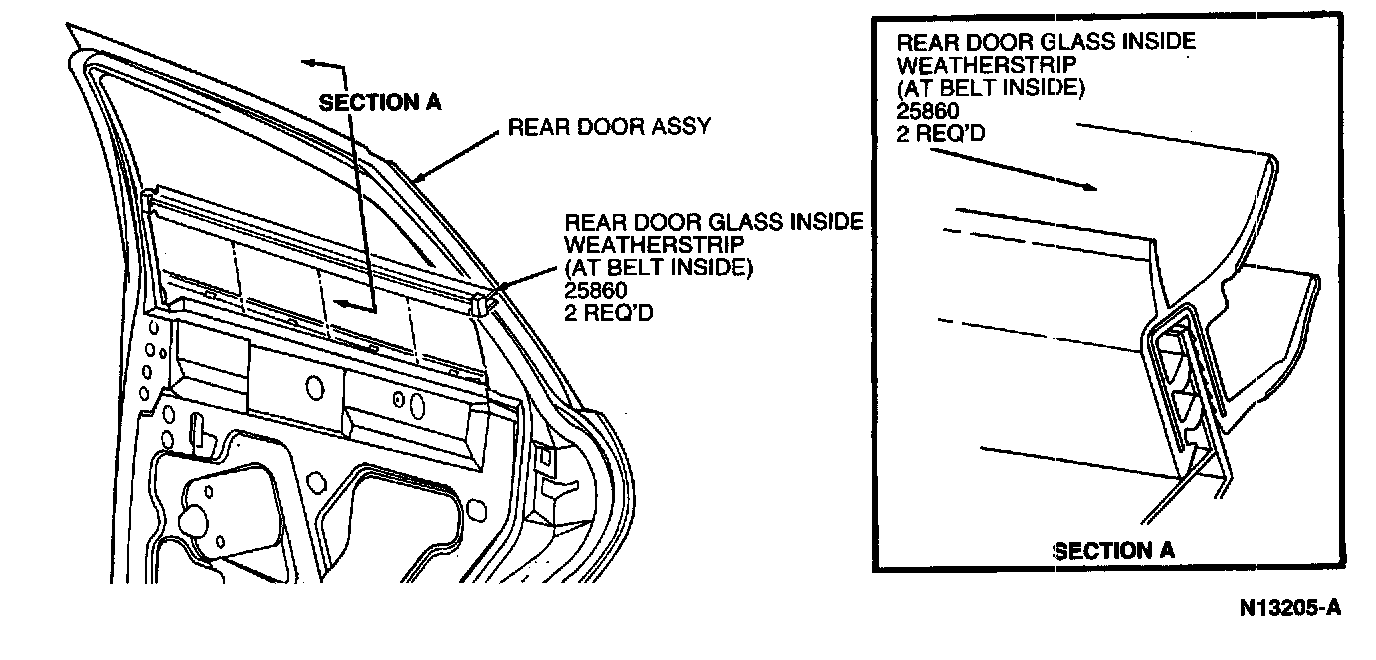

3. Carefully pry rear door glass inside weatherstrip up off rear door.

INSTALLATION
1. Follow removal procedure in reverse order.
