Fixed

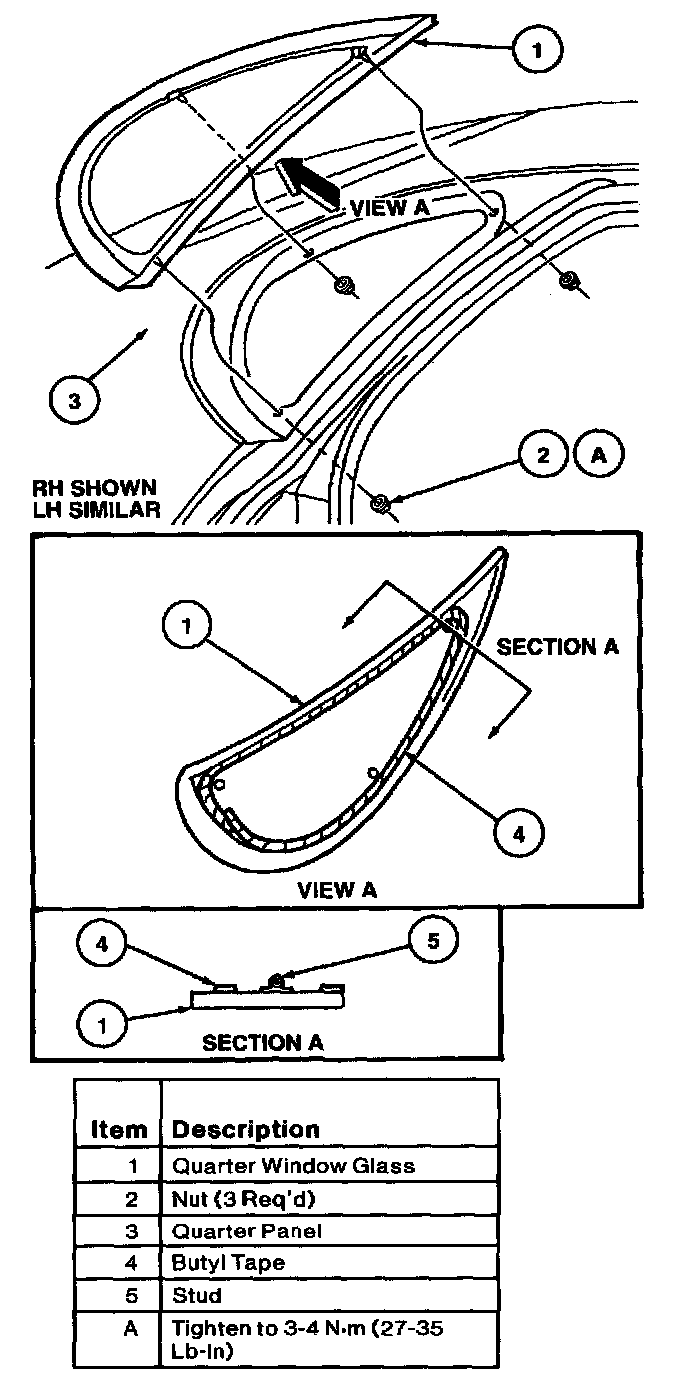

REMOVAL
1. Remove quarter trim panel. Doors

WARNING: SAFETY GLASSES AND GLOVES MUST BE WORN. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY.

2. Remove three nut and washer assemblies retaining quarter window glass.
3. Remove quarter window glass.

4. NOTE: It the window Butyl Tape has been damaged, replace with new seal assembly.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten nut and washer assemblies to 3-4 N.m (27-35 Lb-In).
