Home >> Mercury >> 1999 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> AX4S >> Reference Charts >> Line Pressure Chart No. 401

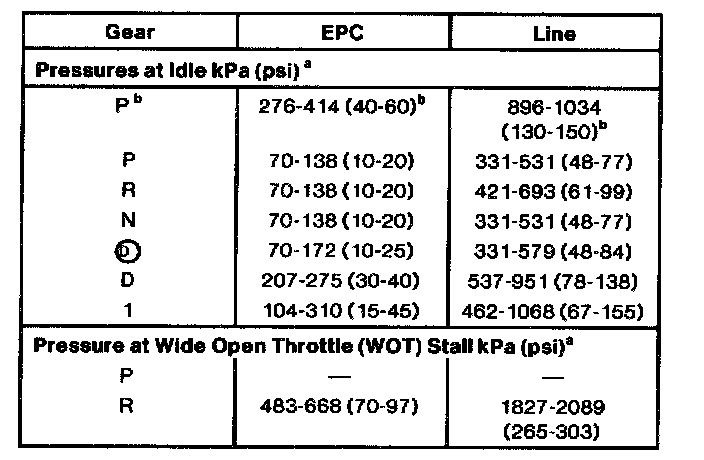

Line Pressure Chart No. 401

2 Of 2:








OTHER CONCERNS: LINE PRESSURE CHART No. 401
