AX4S

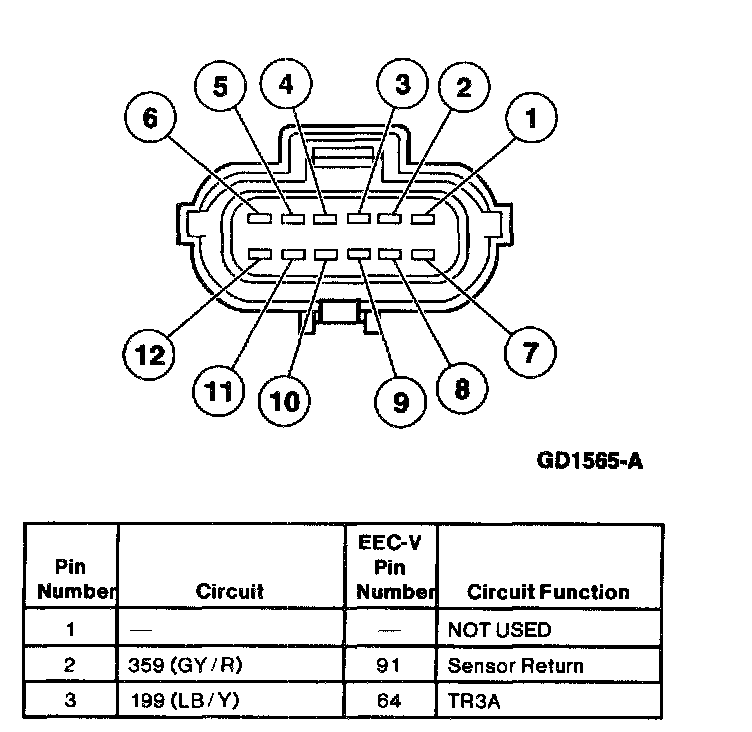

1 Of 2:

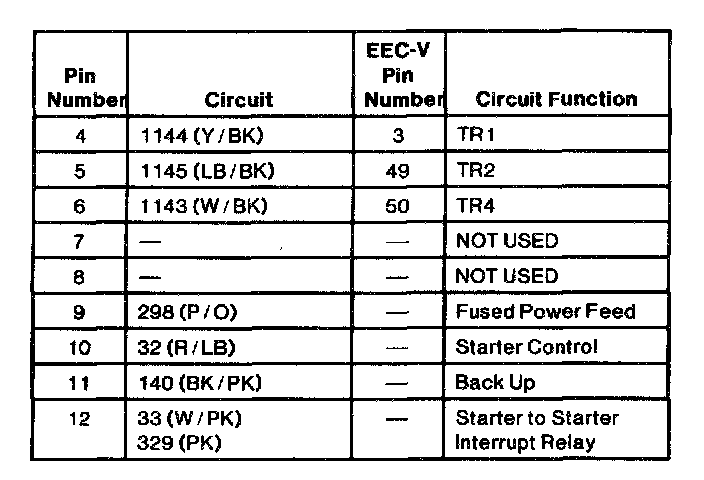

2 Of 2:





Digital Transmission Range (TR) Sensor Connector

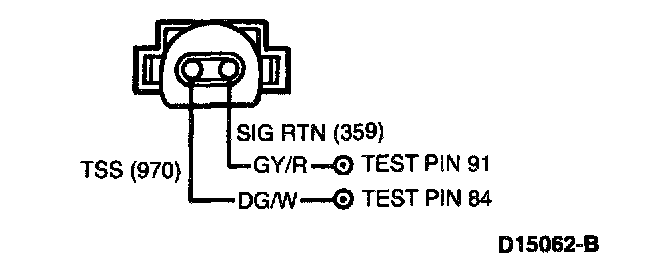

Turbine Shaft Speed Sensor
