AX4N

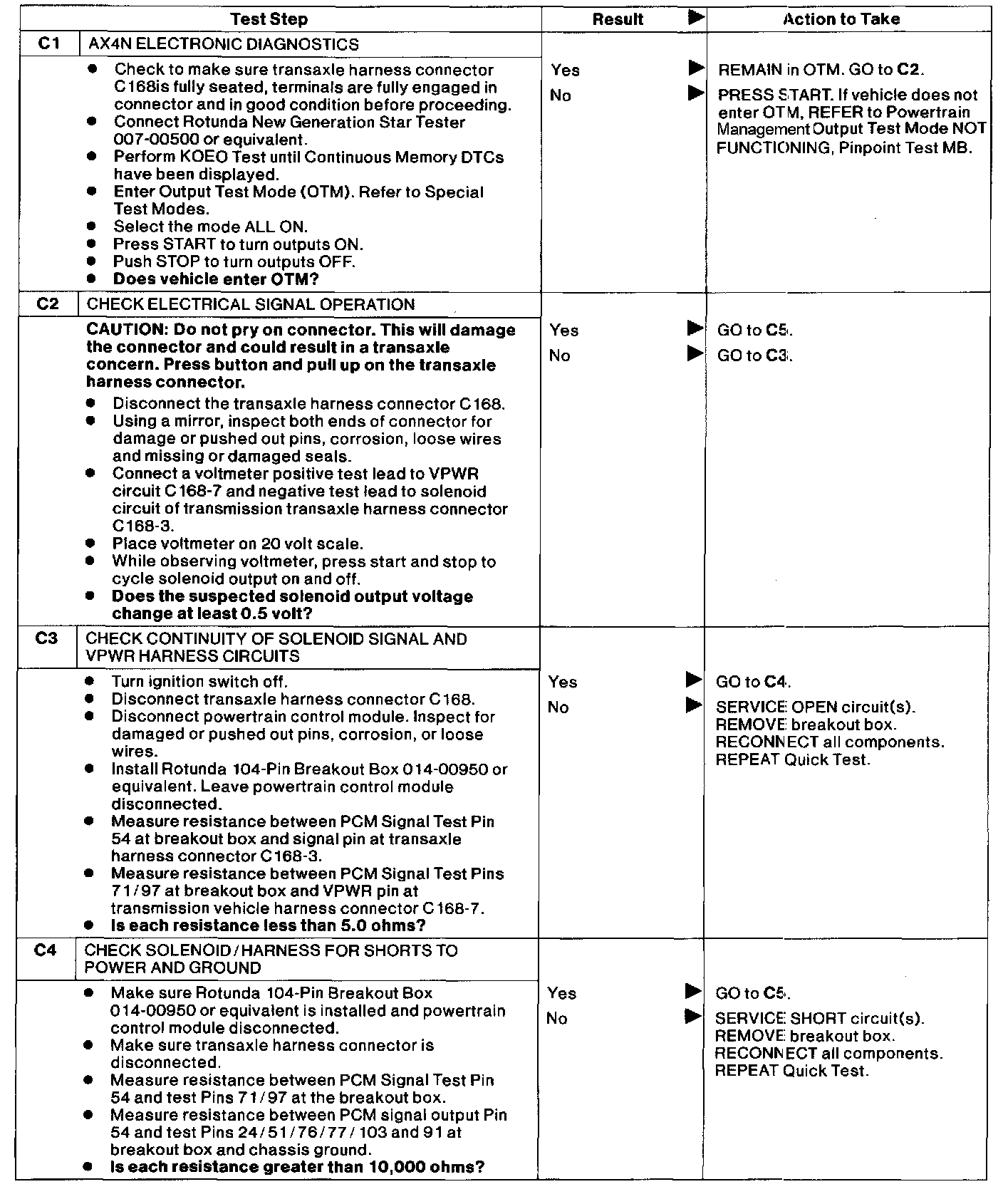

C1 - C4:

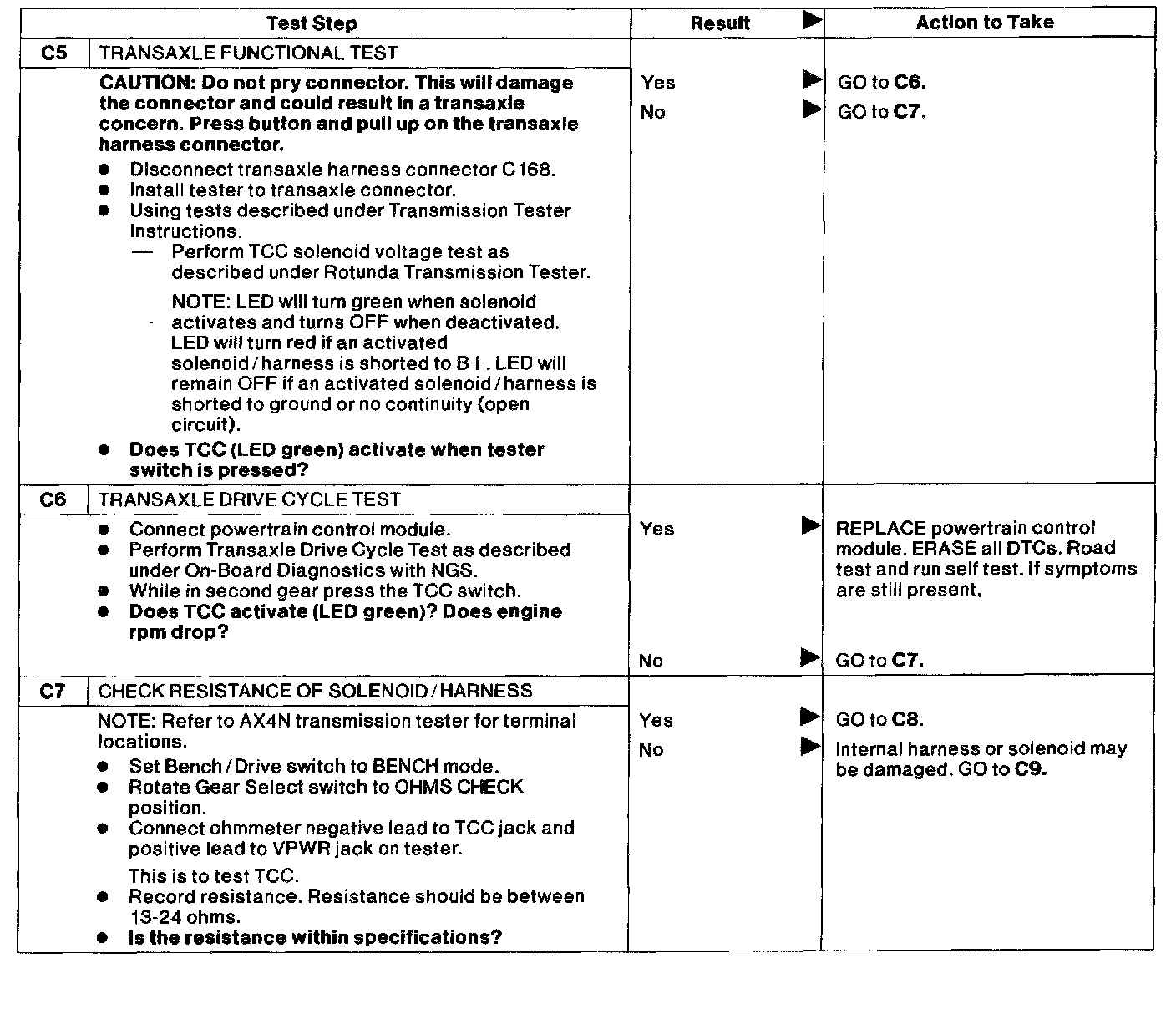

C5 - C7:

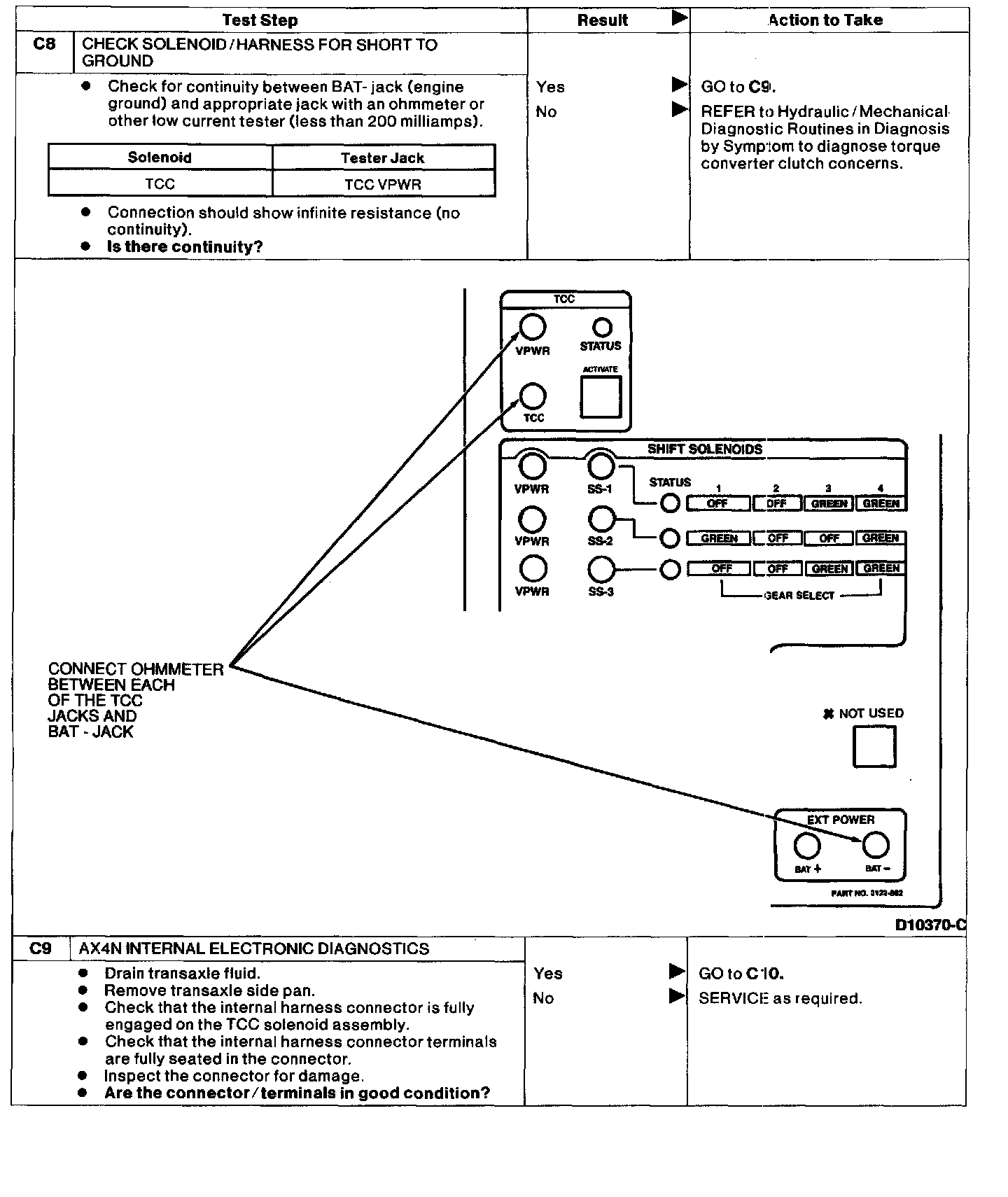

C8 - C9:

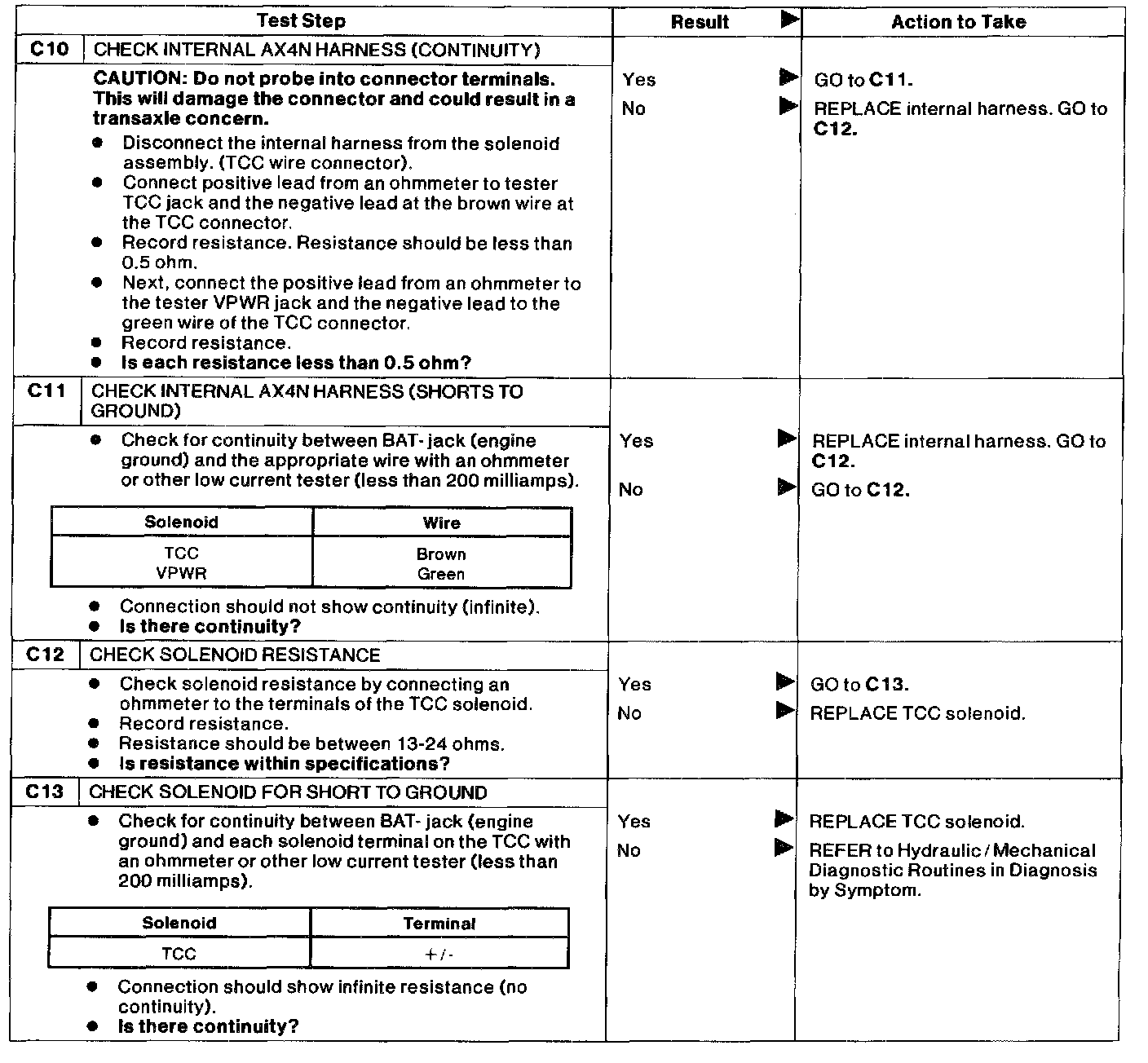

C10 - C13:

PINPOINT TEST C: TORQUE CONVERTER CLUTCH (TCC) SOLENOID

NOTE: Refer to the Transaxle Internal Harness illustration.

NOTE: Refer to the Transaxle Harness Connector illustration.
