AX4N

B1 - B4:

B5:

B6 - B8:

B9 - B11:

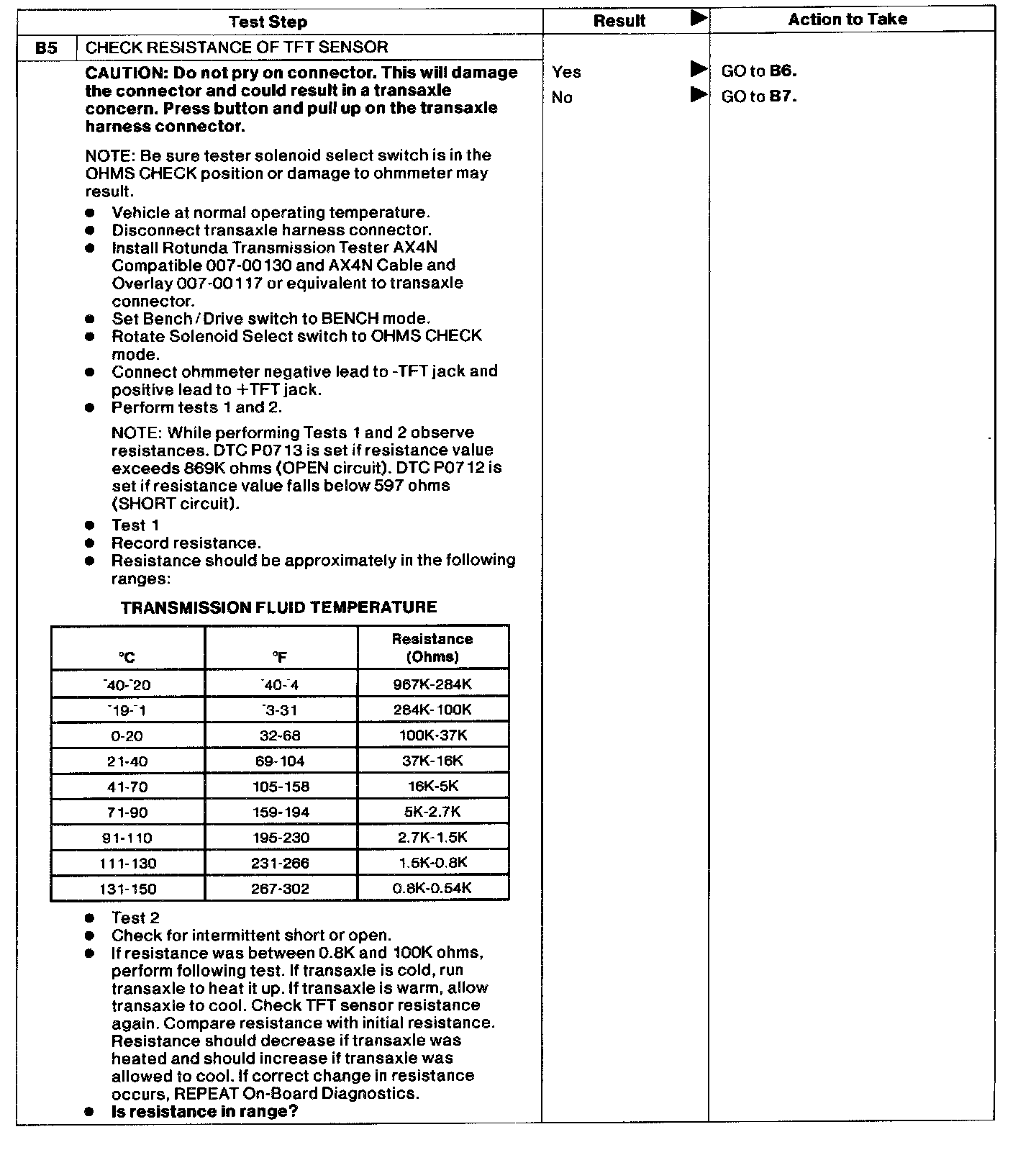

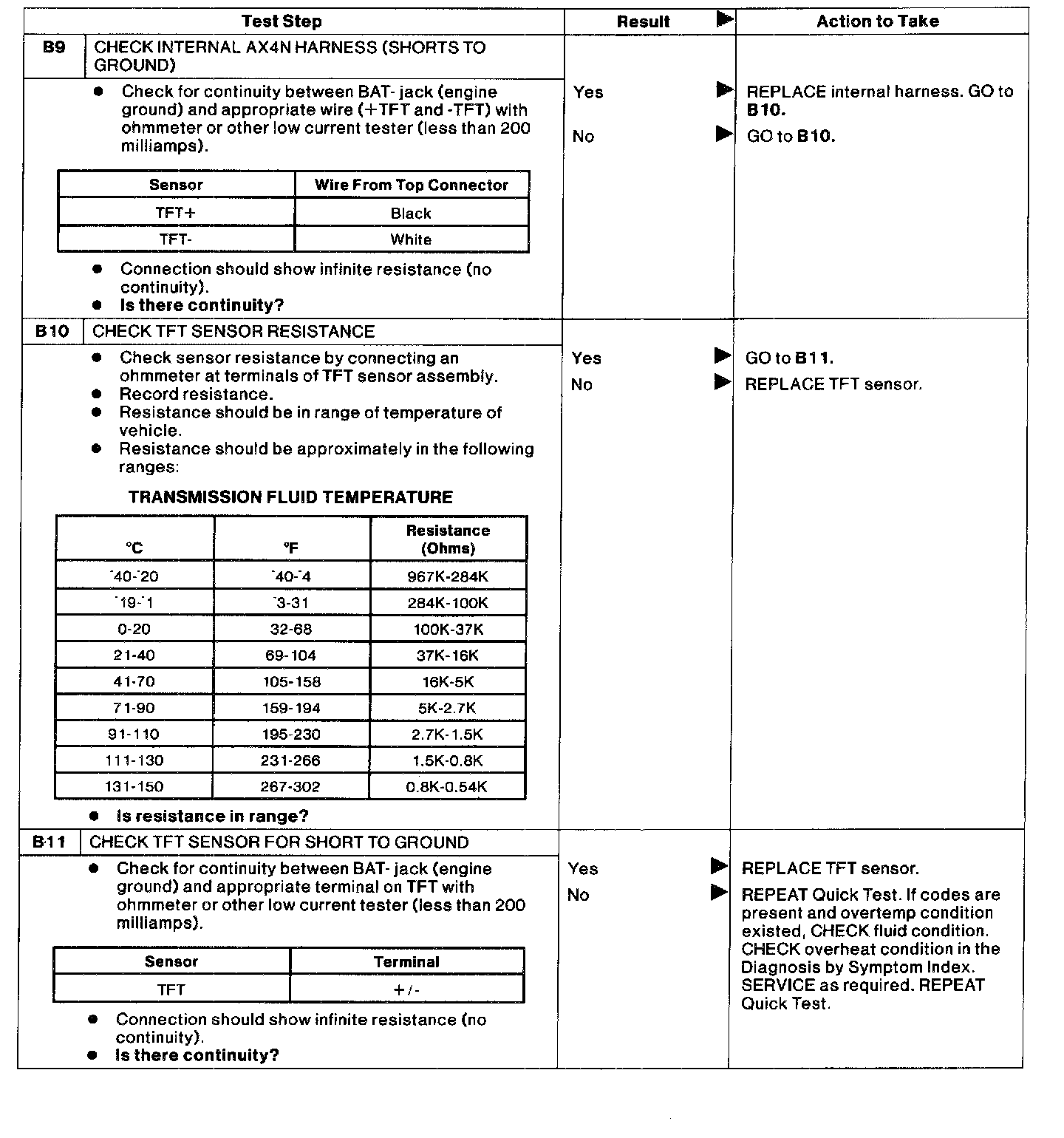

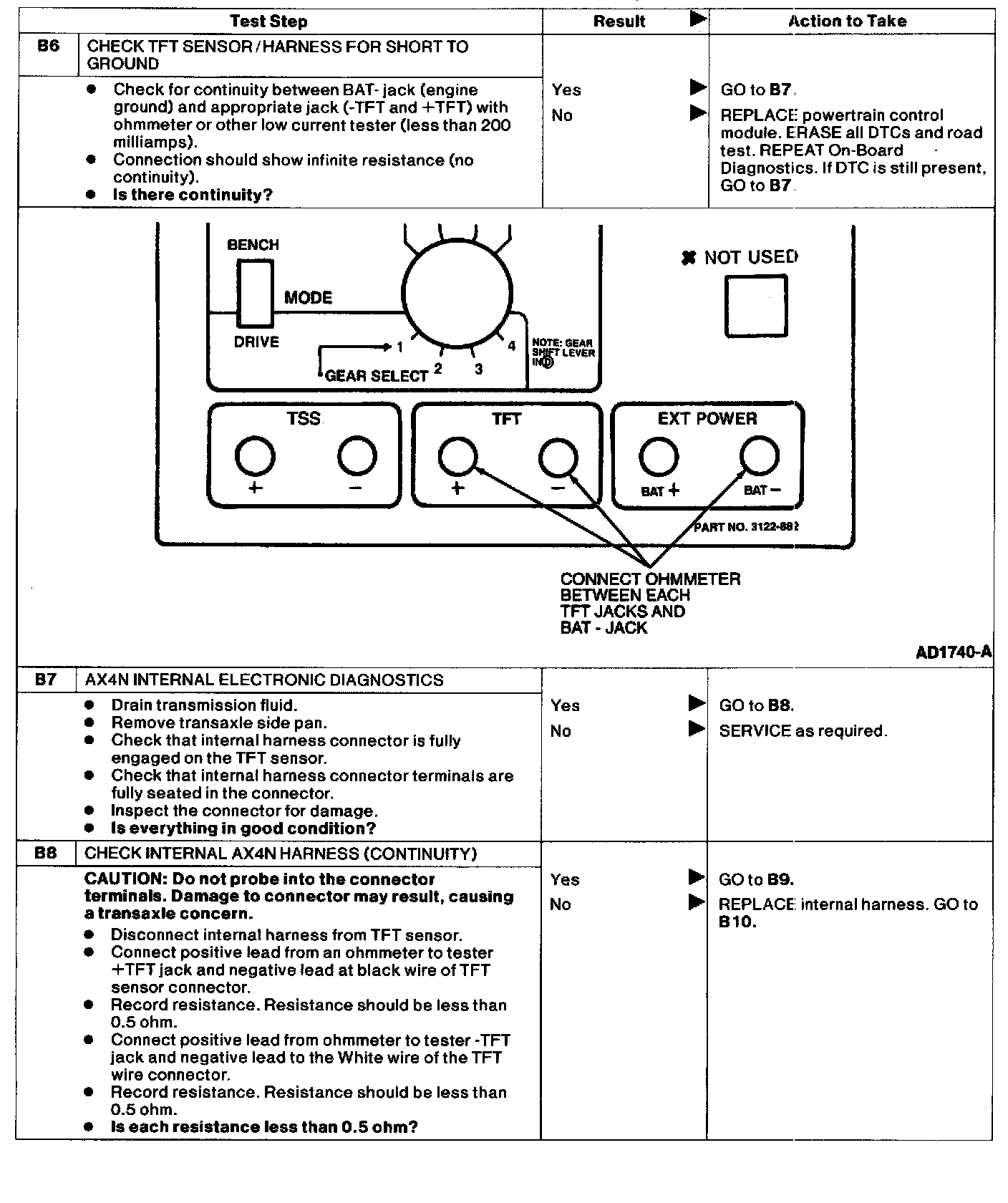

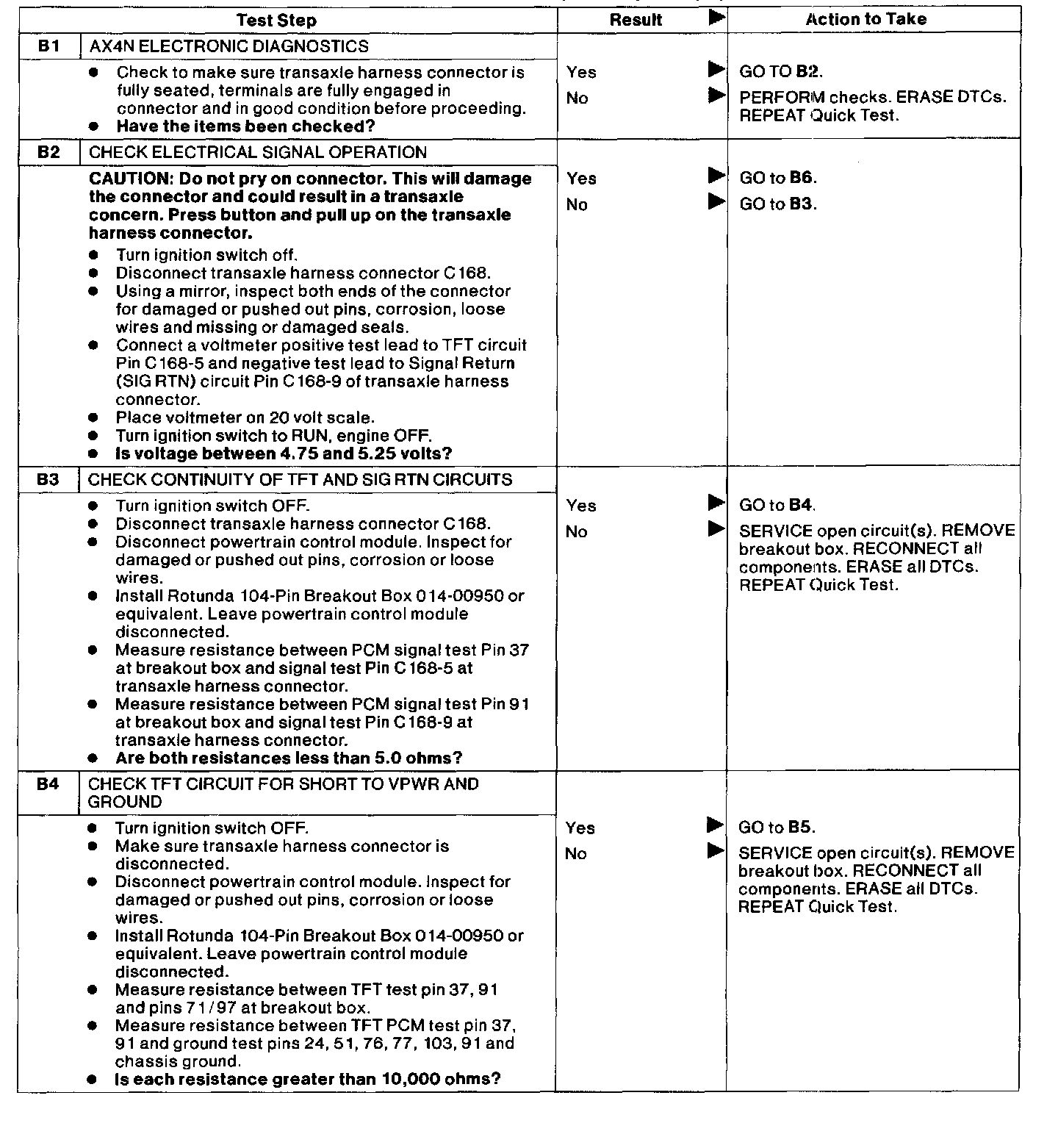

PINPOINT TEST B: TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR

NOTE: Refer to the Transaxle Internal Harness illustration.

NOTE: Refer to the Transaxle Harness Connector illustration.
