AX4N

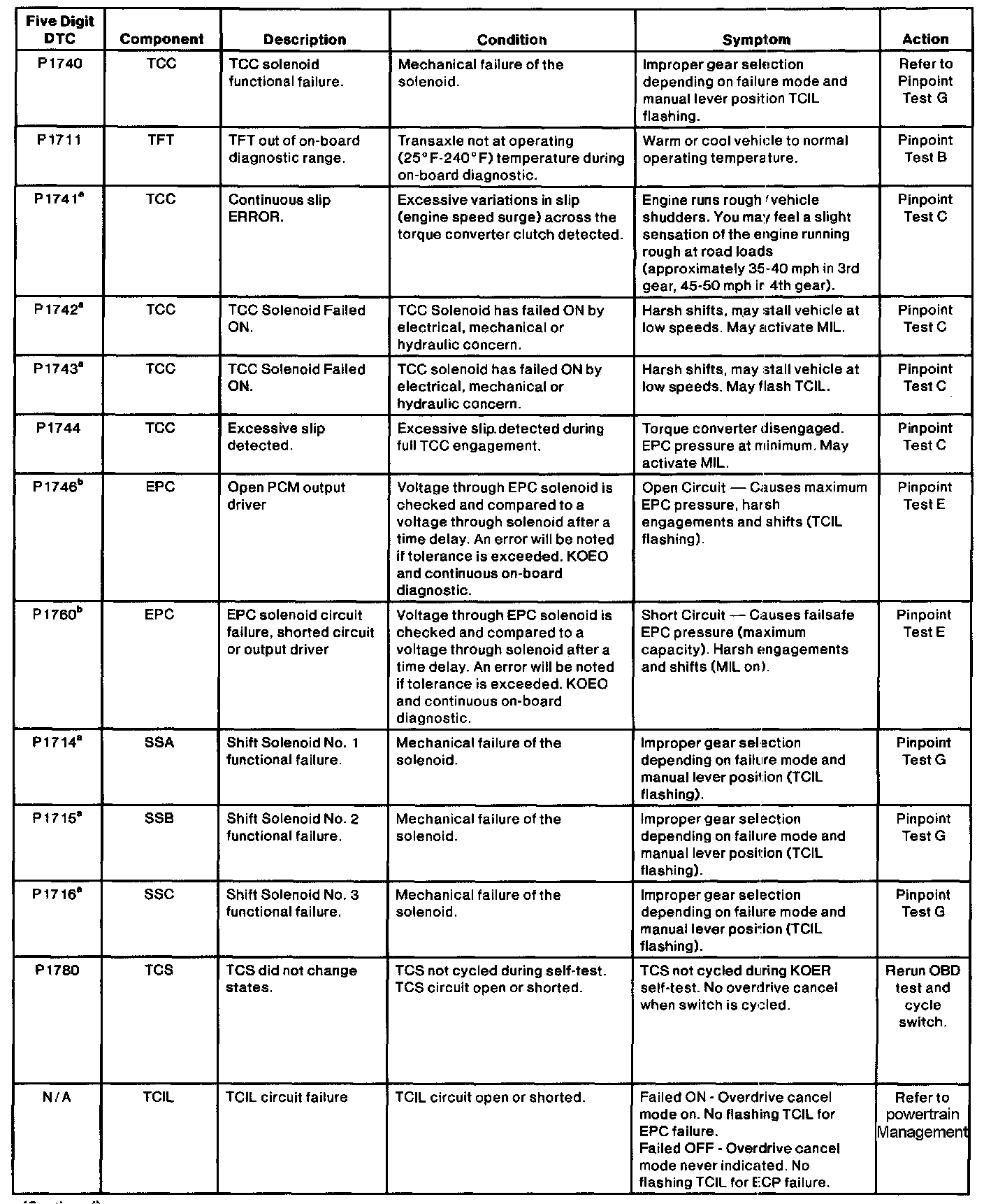

AX4N 1 Of 5:

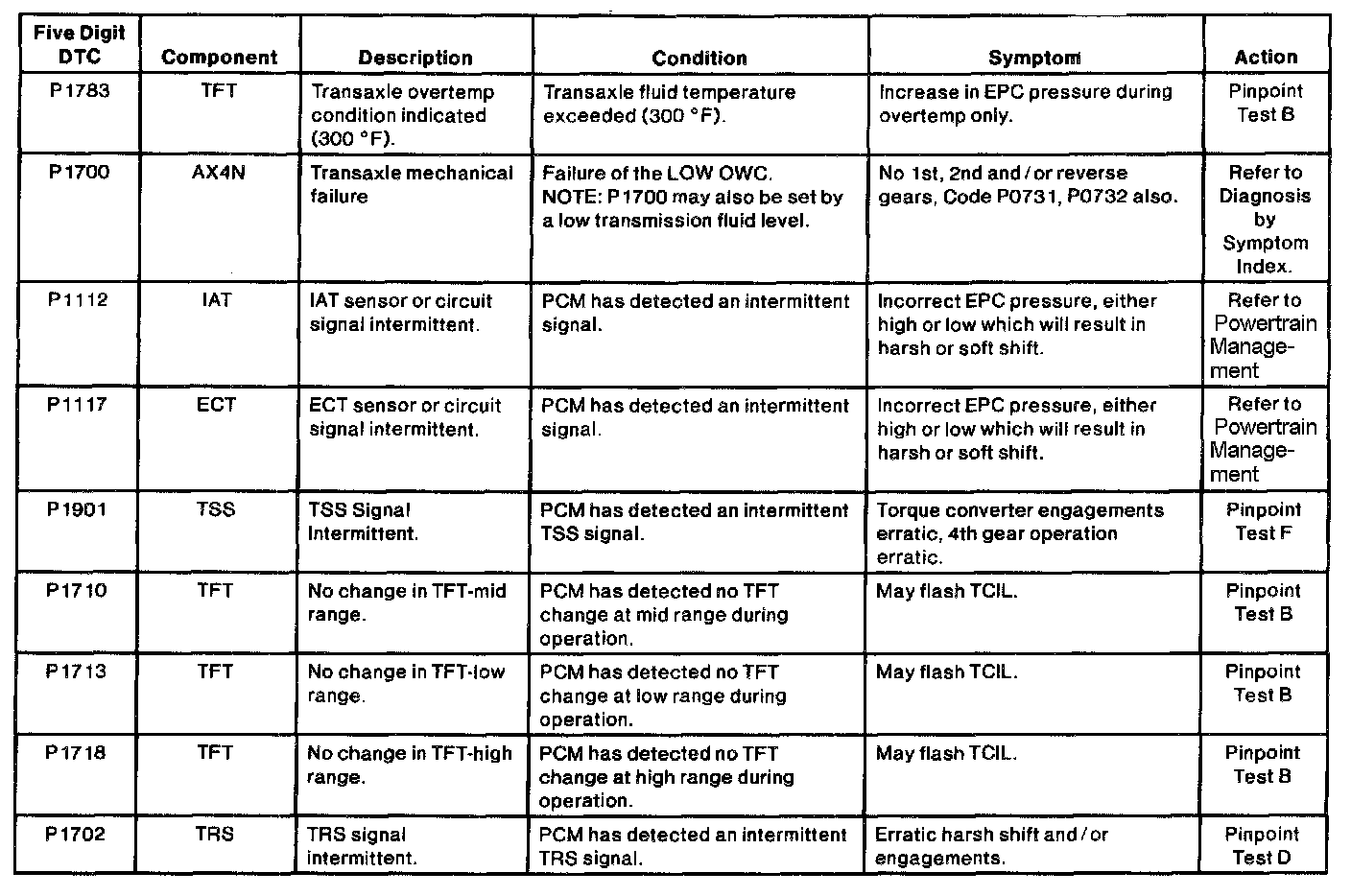

AX4N 2 Of 5:

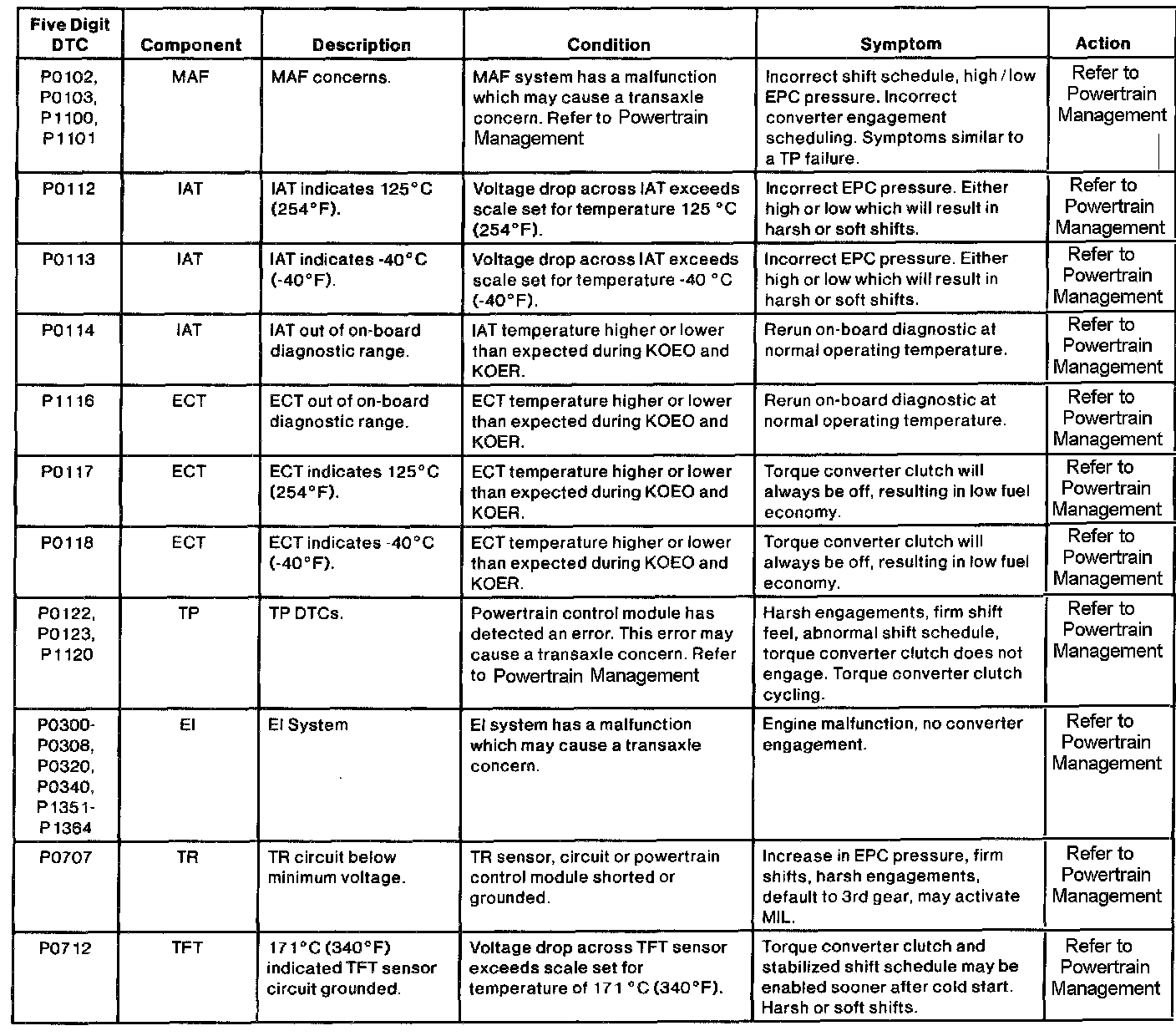

AX4N 3 Of 5:

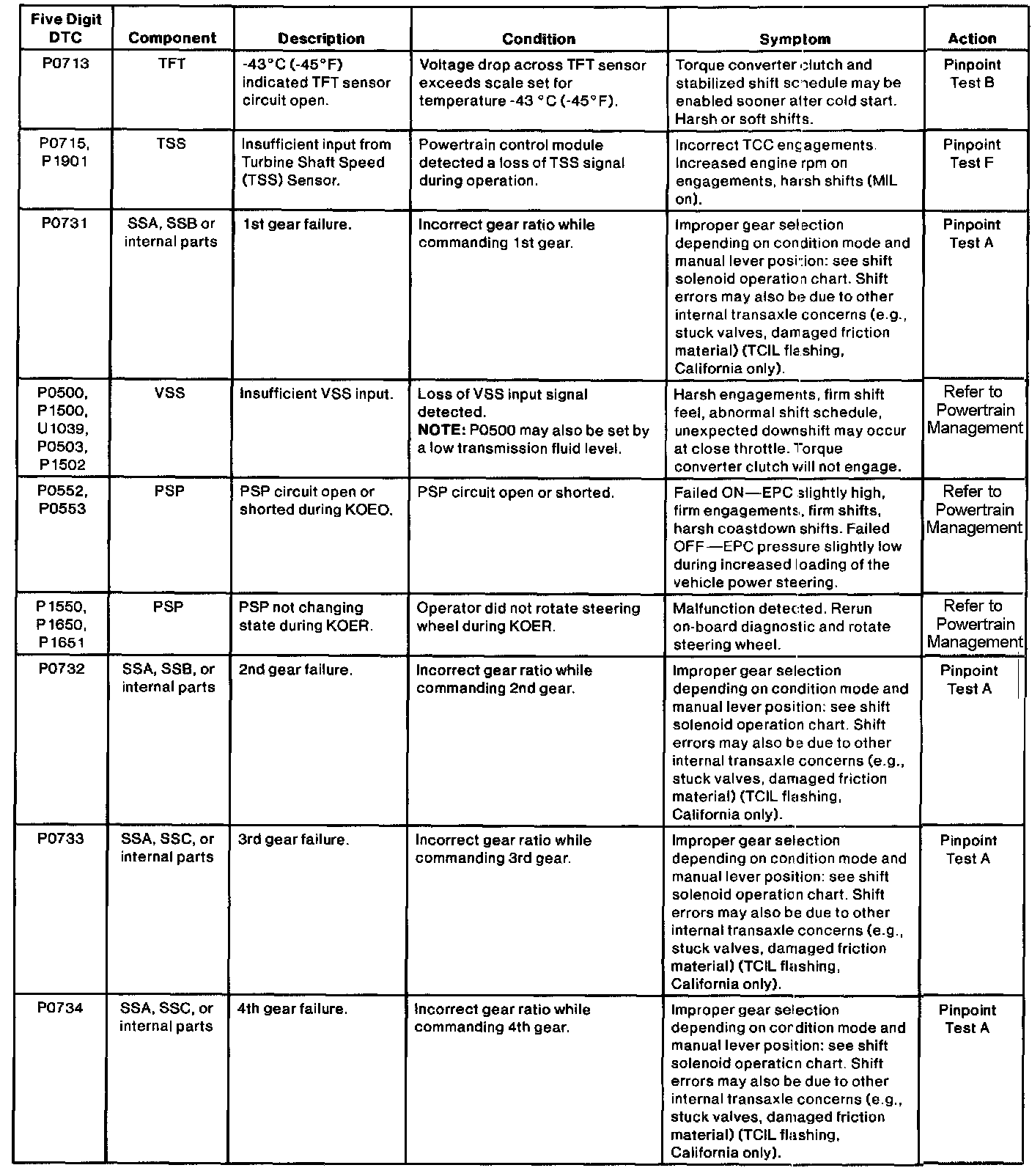

AX4N 4 Of 5:

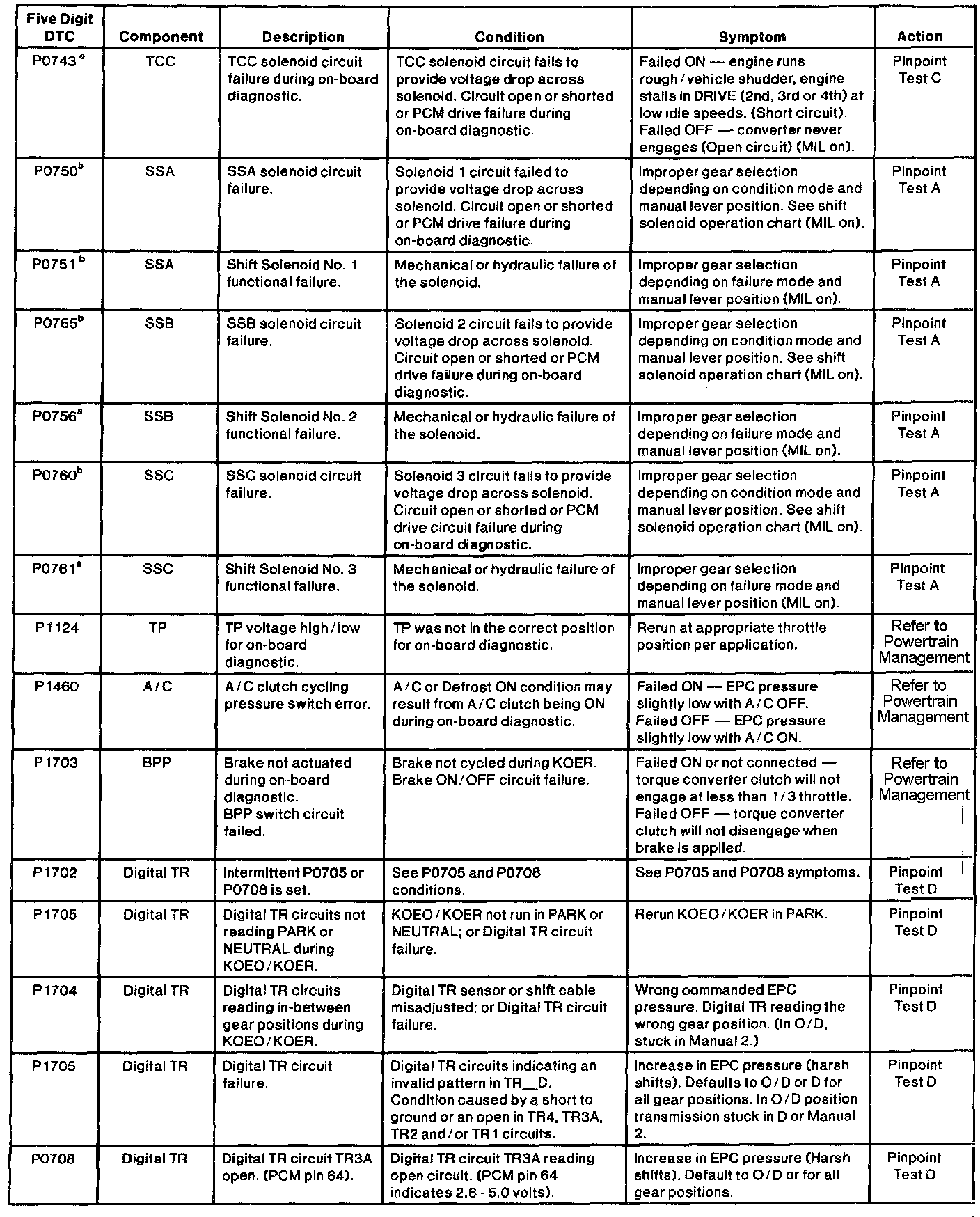

AX4N 5 Of 5:

ON-BOARD DIAGNOSTIC TROUBLE CODE DESCRIPTION CHARTS

Footnotes:

a May also be generated by some other non-electrical transaxle hardware system.

b Output circuit check, generated only by electrical symptoms.
