Axle Shaft: Testing and Inspection

NOTE: Do not install new Constant Velocity (CV) joints unless disassembly and inspection reveals wear/damage.

NOTE: Inspect for, and remove indentations (dimples) in the boot convolutions.

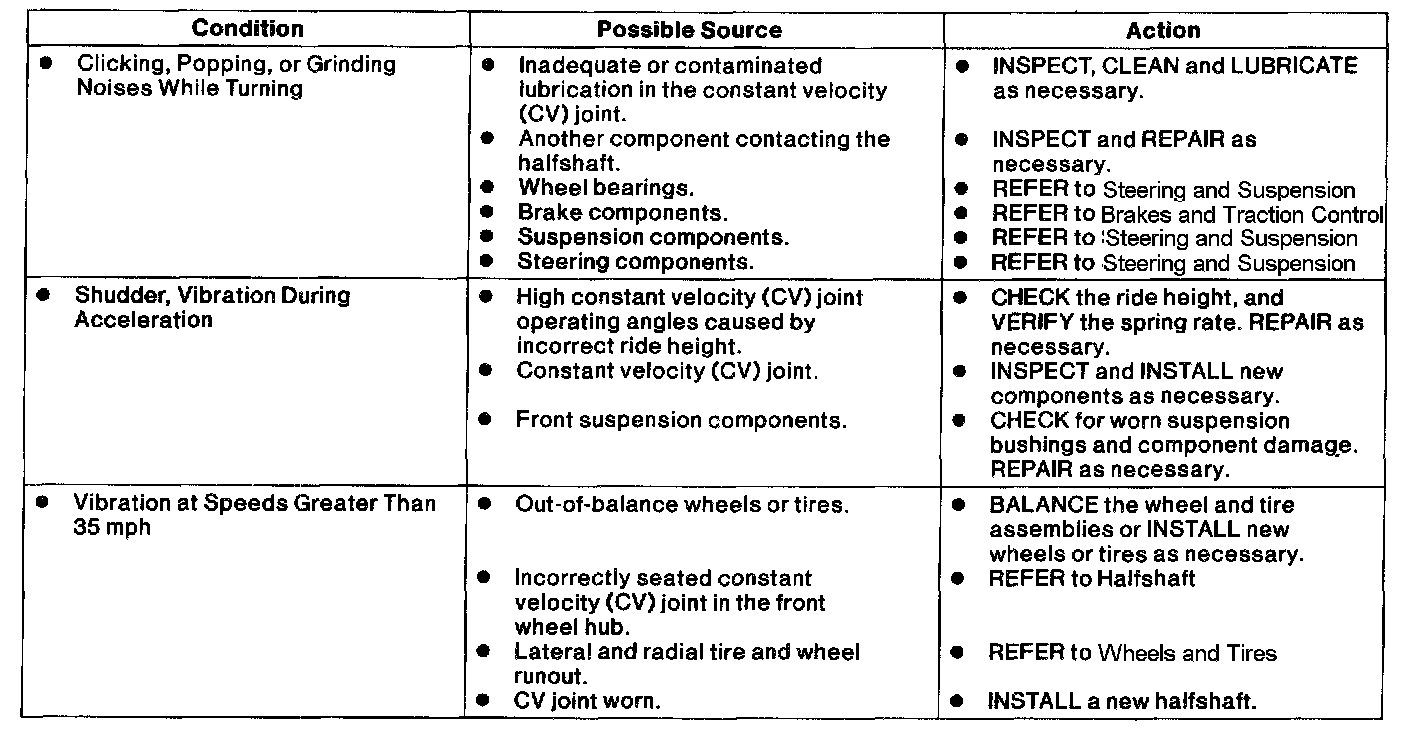

Symptom Chart:

^ Inspect the boots for cracks, tears, and splits.
^ Inspect the vehicle underbody for grease splatter near the outboard and inboard boots. This is an indication of boot/clamp damage.
