FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.

AX4S

Special Tools:




Special Tools:




Special Tools:




Special Tools:




Special Tools:




Special Tools:




Special Tools:




Special Tools:




Special Tools:




Special Tools:




Special Tools:




Special Tools:




Special Tools:




Special Tools:




Special Tools:




Special Tools:




Special Tools:




Special Tools:




Special Tools:




Special Tools:

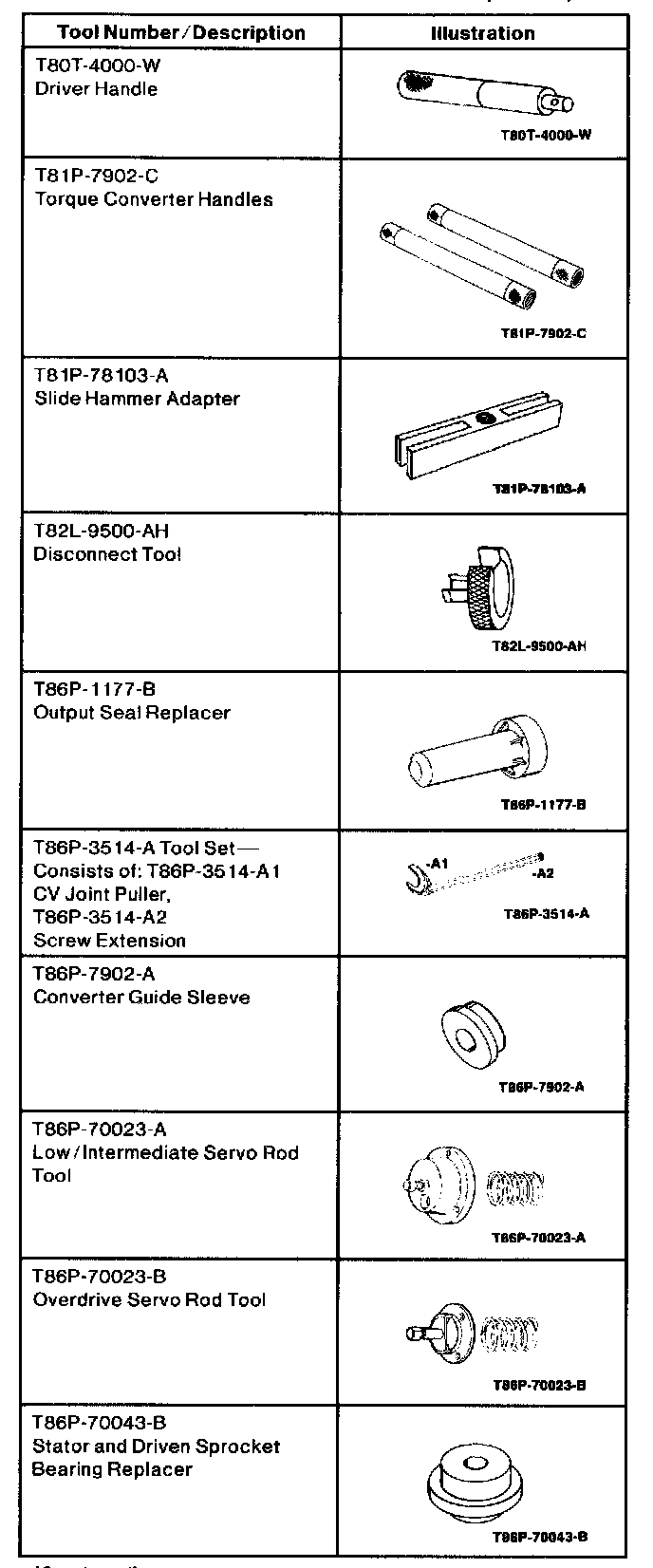

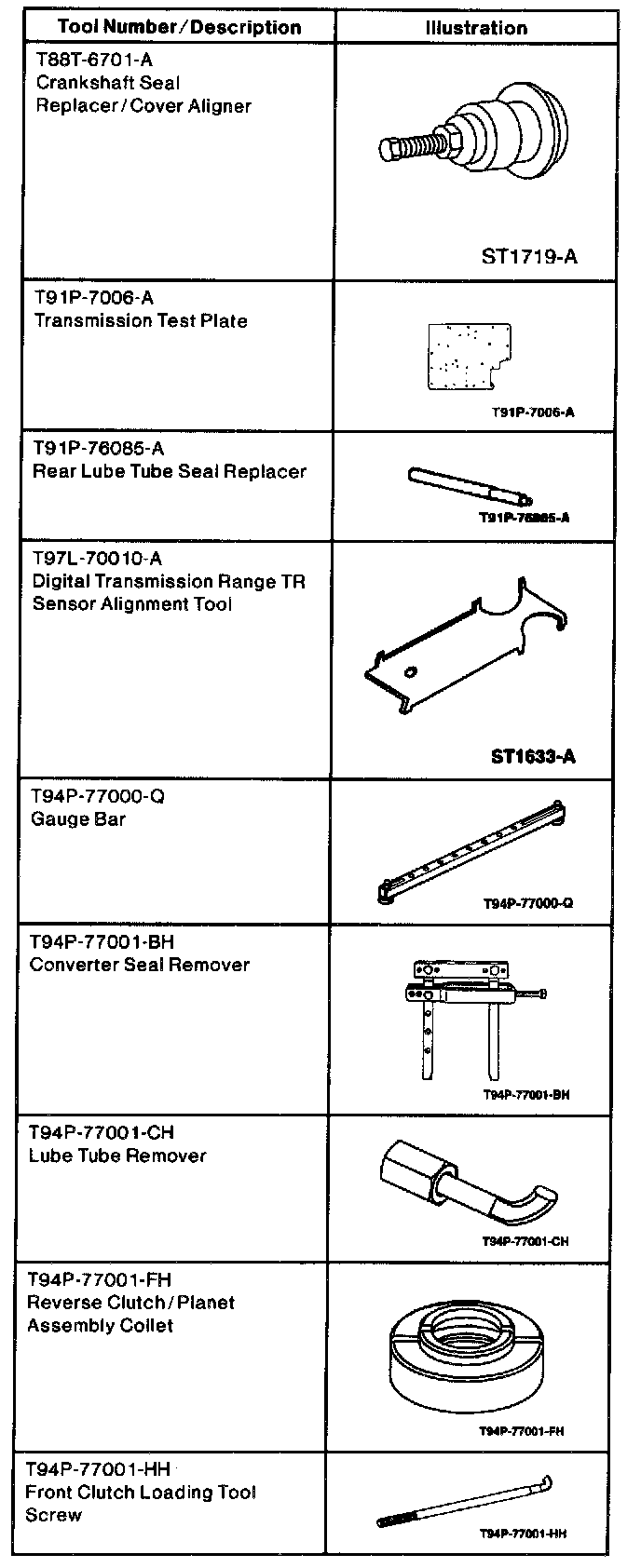

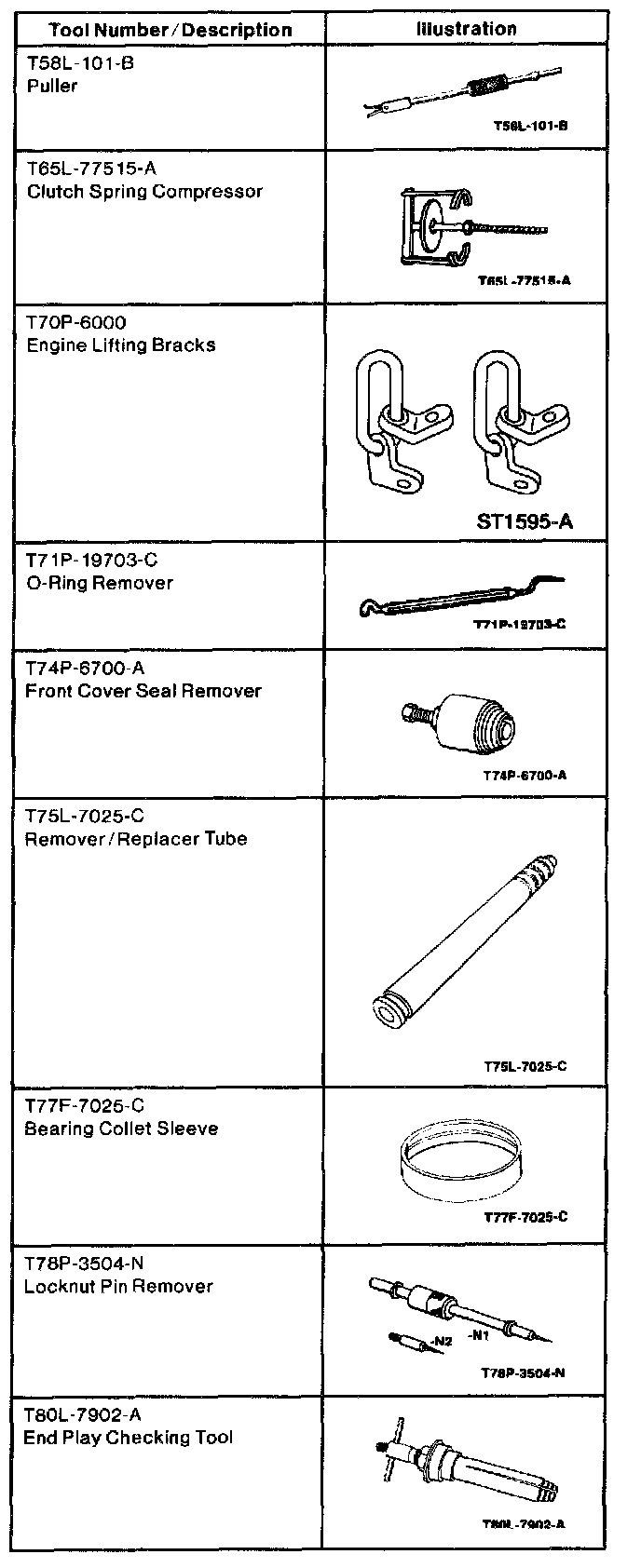

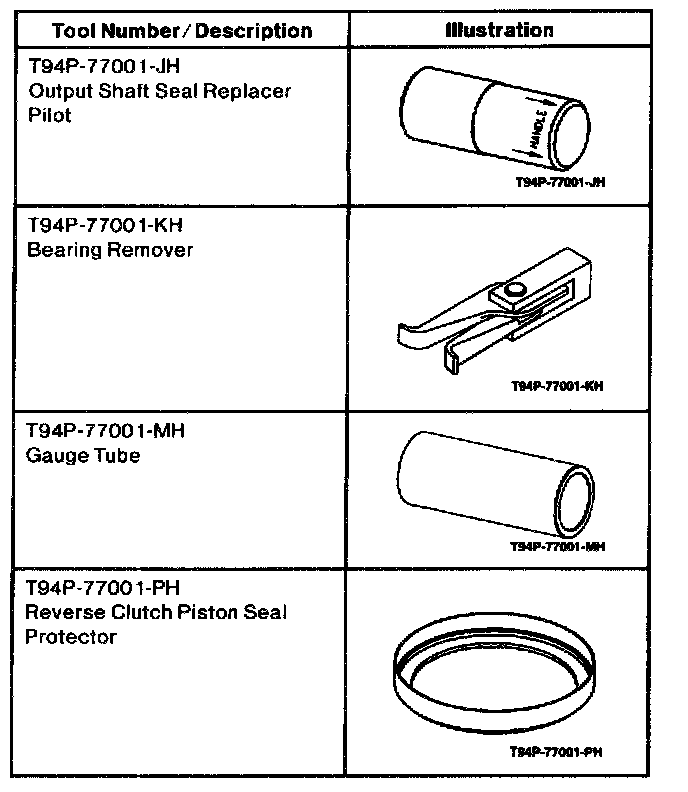

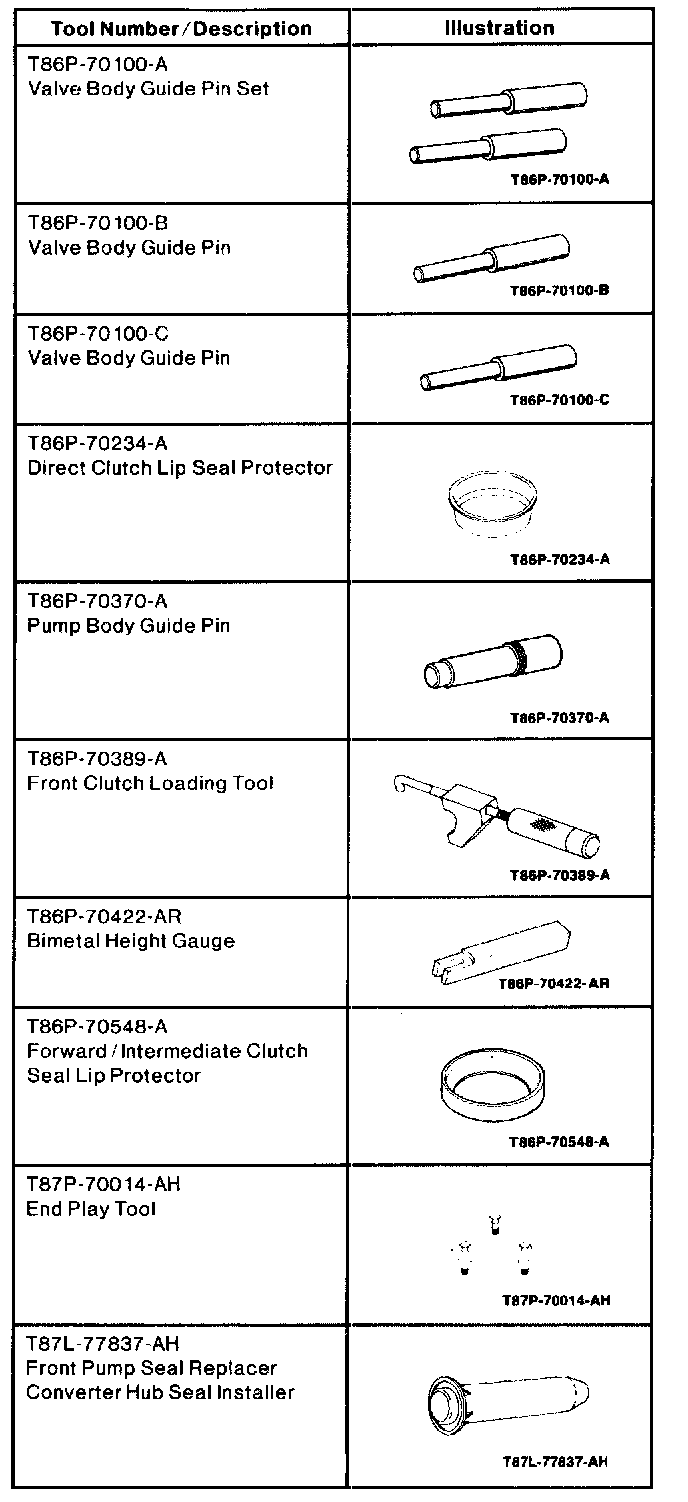

SPECIAL SERVICE TOOL(S) REQUIRED

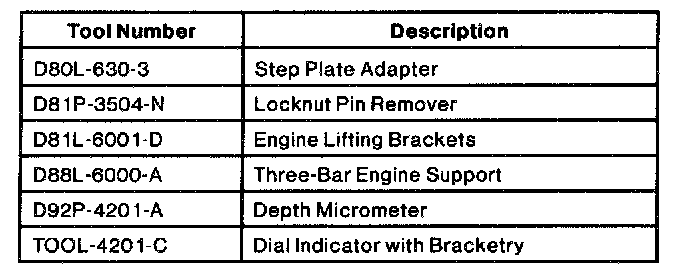

SPECIAL SERVICE TOOLS DESIRED

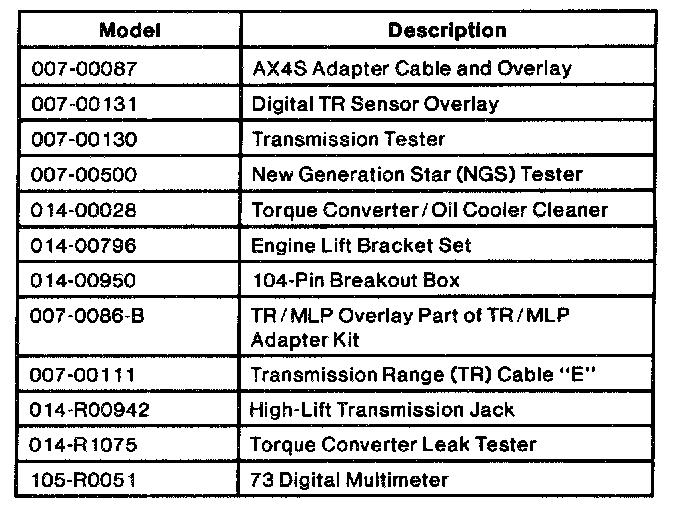

ROTUNDA EQUIPMENT
