Initial Inspection and Diagnostic Overview

1. Verify the vehicle customer's original concern by operating the shift interlock system to duplicate the condition.

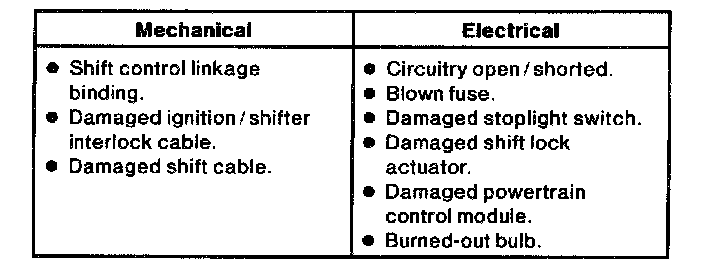

2. Inspect to determine if one of the mechanical or electrical concerns apply.
3. If the concern(s) remains after the inspection, determine the symptom(s) and go to the Symptom Chart. Symptom Related Diagnostic Procedures
