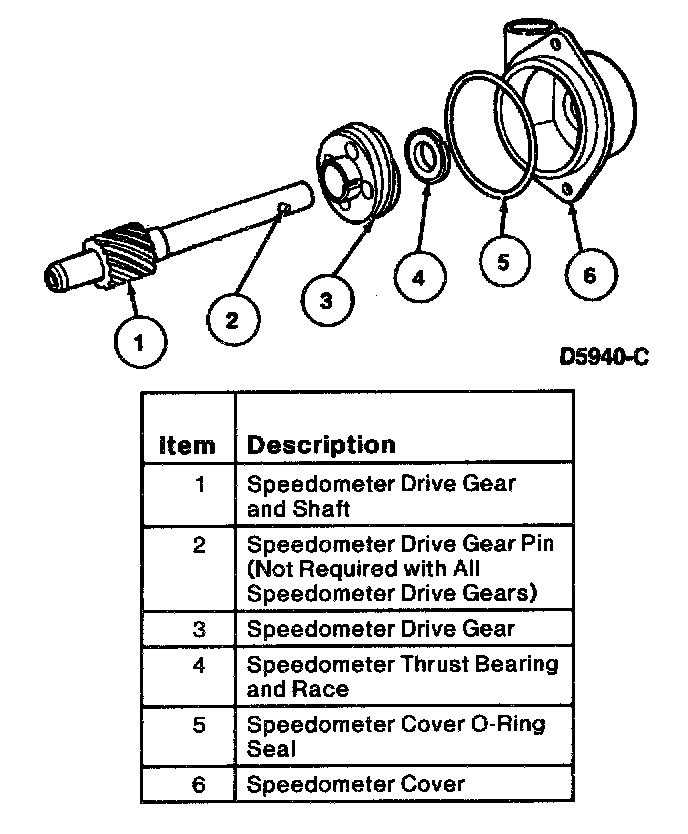

Speedometer Drive Gear Assembly Disassembly

Disassembly
1. Remove O-ring seal and discard.
2. Remove speedometer thrust bearing and race and speedometer drive gear from speedometer drive gear shaft.

Assembly
1. Push speedometer drive gear onto speedometer drive shaft aligning slots in speedometer drive gear with shaft roll pin.
2. Install speedometer thrust bearing and race on speedometer drive gear.
3. Install new O-ring seal on cover.
