Pump Shaft

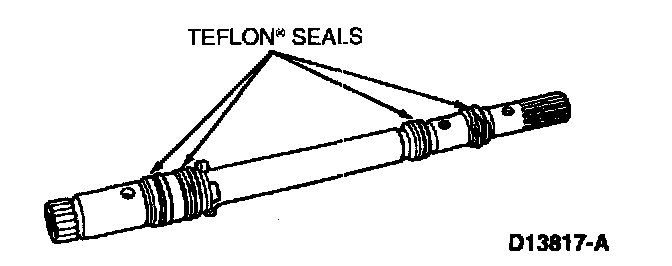

1. Remove Teflon seals from pump driveshaft.





2. Inspect pump driveshaft in area that bearing rides. If worn, shaft and bearing in pump body must be replaced.

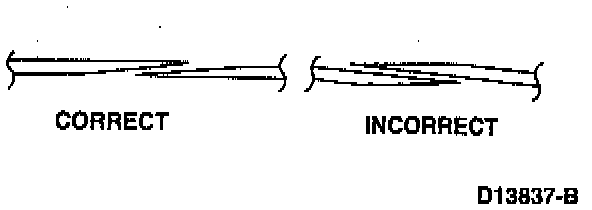

3. CAUTION: Seal rings must be installed correctly.
Install four new Teflon seals on the pump drive shaft.
