Driven Sprocket Support

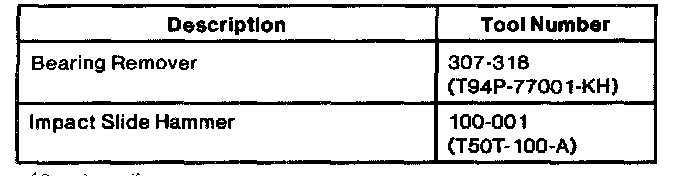

Special Tools:

Disassembly

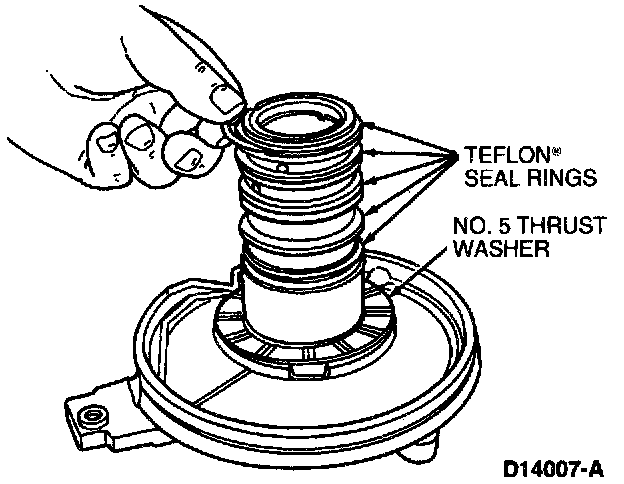

1. Remove five Teflon seal rings and No.5 thrust washer. Discard seal rings.
2. Clamp driven sprocket support vertically in a soft jawed vise.

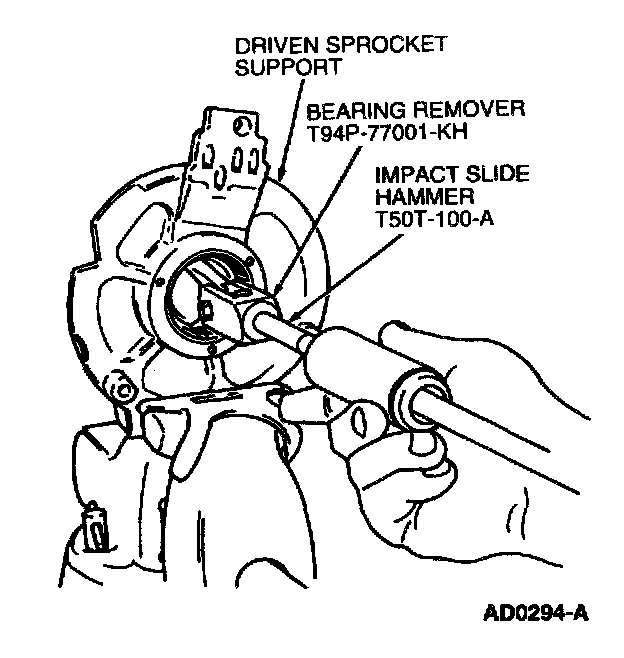

3. Inspect and replace driven sprocket bearing if necessary using Bearing Remover 307-318 (T94P-77001-KH) and Impact Slide Hammer 100-001 (T50T-100-A).

Assembly

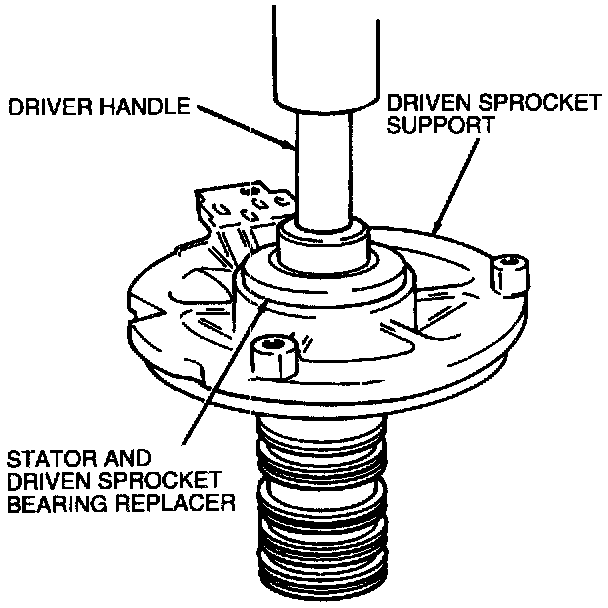

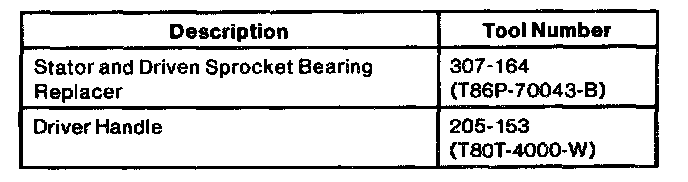

1. If removed, press driven sprocket bearing using an arbor press, Stator and Driven Sprocket Bearing Replacer 307-164 (T86P-70043-B), and Driver Handle 205-153 (T80T-4000-W).

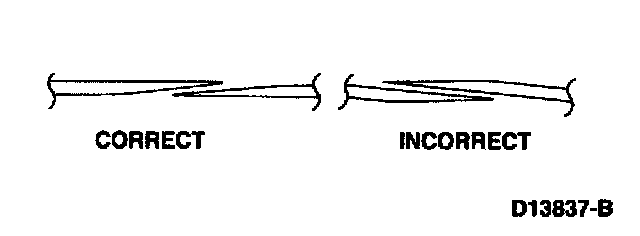

2. CAUTION: Seal rings must be installed correctly.

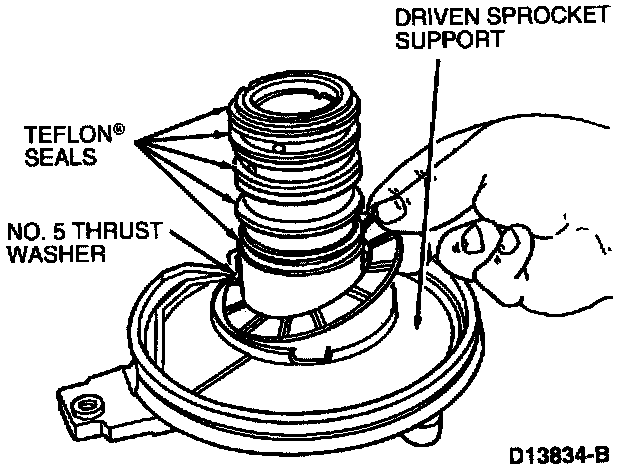

Install five new Teflon seal rings on driven sprocket support.

3. Install No. 5 thrust washer to driven sprocket support. Use petroleum jelly to hold washer in place.
