Drive Sprocket/Turbine Shaft

Disassembly

1. Remove and discard drive sprocket/turbine shaft seal and O-ring.
2. Inspect bearing race for wear.

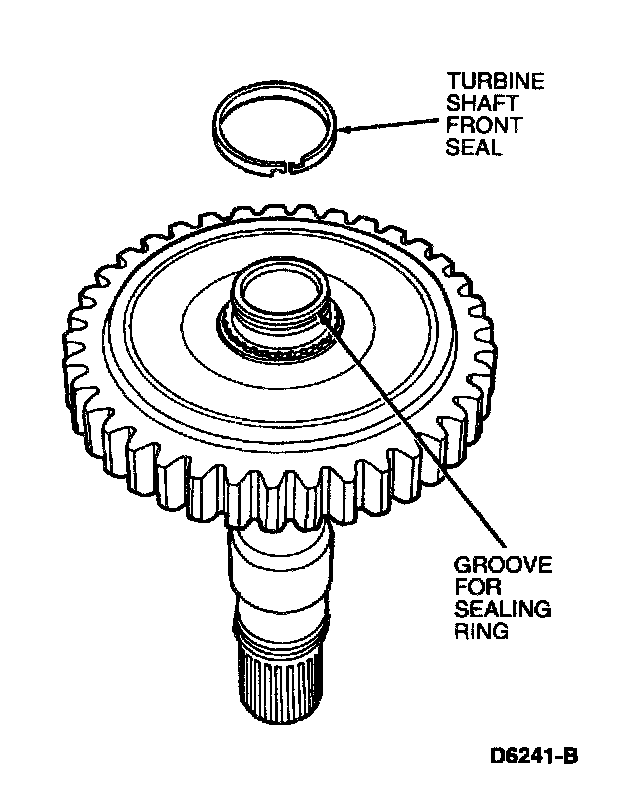

3. Remove and discard turbine shaft front seal.

Assembly

1. CAUTION: Seals and O-rings must be installed correctly.

Install new drive sprocket/turbine shaft seal and O-ring.

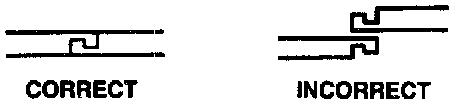

2. CAUTION: Seal rings must be installed correctly.

Install new turbine shaft front seal.
