Pump Shaft

1. Remove Teflon (R) seals from pump driveshaft.





2. Inspect pump driveshaft in area that bearing rides. If worn, shaft bearing and seal in pump body must be replaced.

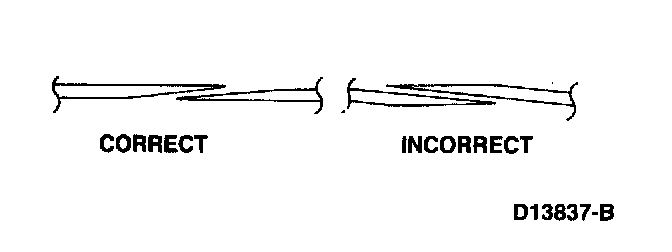

3. Install four new Teflon (R) seals on the pump drive shaft.
