Low Intermediate One-Way Clutch

Disassembly

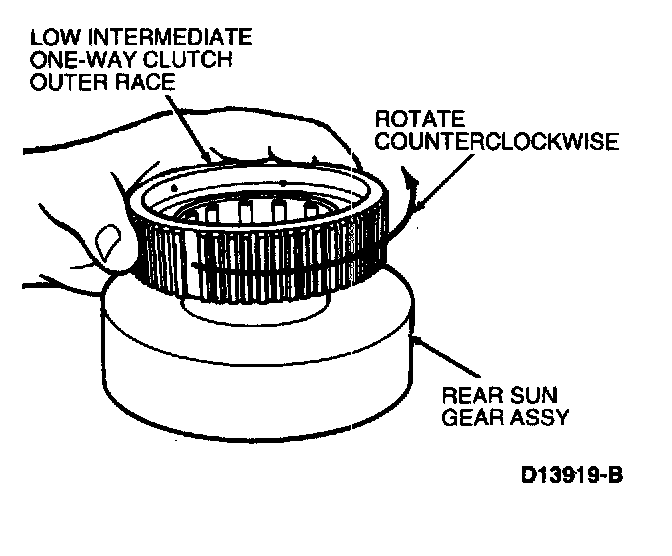

1. Rotate low-intermediate one-way clutch outer race counterclockwise to remove from rear sun gear assembly.

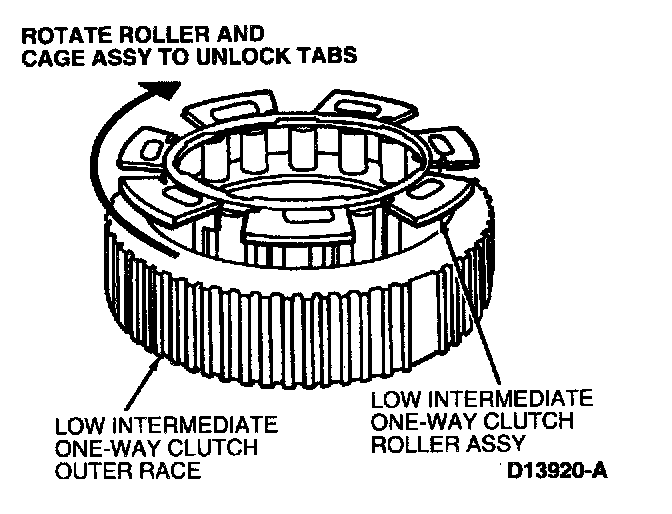

2. Rotate roller and cage assembly clockwise to unlock tabs. Remove low intermediate one-way clutch roller and cage assembly from low intermediate one-way clutch race (outer). Clean and inspect rollers and cage for cracks, brinelling or scoring. Service as required.

Assembly

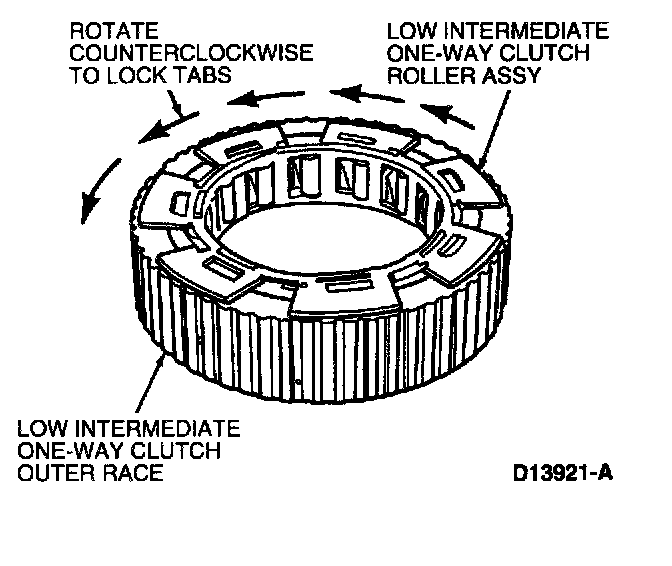

1. Install low-intermediate one-way clutch roller assembly to low-intermediate one-way clutch race (outer). Then, rotate counterclockwise to lock tabs.

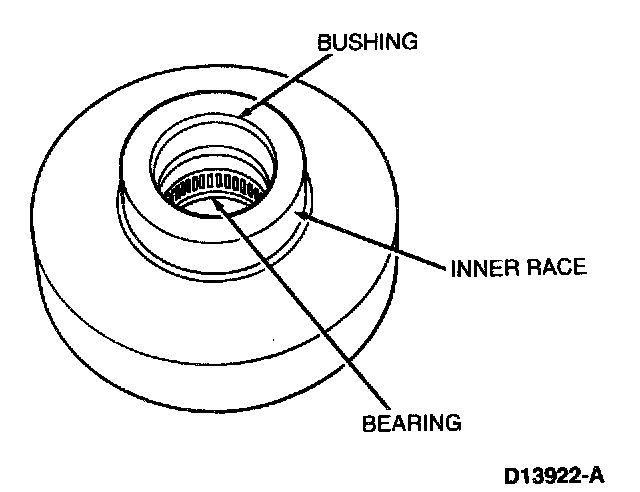

2. Clean and inspect rear sun gear assembly bushing, bearing and inner race. Service as required.





3. NOTE: Outer splined race should rotate counterclockwise and hold clockwise.

Install one-way clutch assembly to rear sun gear assembly by rotating counterclockwise.
