Intermediate

Removal
1. Remove steering column lock cylinder housing.

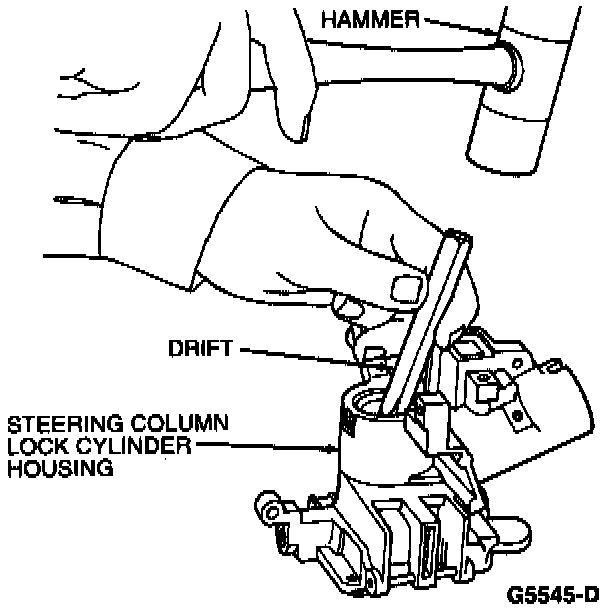

2. Set steering column lock cylinder housing flat on workbench and tap large steering column bearing loose with suitable drift and a hammer.

Installation
1. Support steering column lock cylinder housing on workbench.

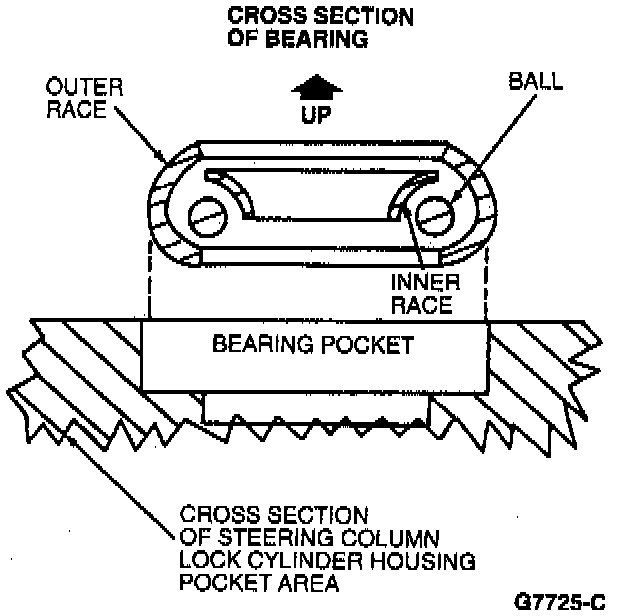

2. Position new large steering column bearing into steering column lock cylinder housing as shown.





3. Using a socket or bushing driver the same size as outer race of steering column bearing, tap steering column bearing into steering column lock cylinder housing with a hammer until fully seated.
