Generator On-Vehicle Tests

Troubleshooting or diagnosis is required before actual service can be made in the electrical system. Even where an obvious condition makes replacement of a component necessary, find out why the component failed. When a condition is diagnosed correctly, unnecessary service is prevented, the time the vehicle is out of service will be decreased, and the condition will be properly corrected the first time.

CAUTION: Do not make jumper wire connections except as directed. To do so may damage voltage regulator.

NOTE: Battery posts and cable clamps must be clean and tight for accurate meter indications.

In order to check the charging system, use Rotunda Alternator, Regulator, Battery and Starter Tester (ARBST) 010-00725 or equivalent.

NOTE: Review the Rotunda Alternator, Regulator, Battery and Starter Tester 010-00725 Procedure Manual for complete directions on checking out the charging system.

When performing charging system tests, turn off all lamps and electrical components. Place transaxle in NEUTRAL and apply parking brake.

Load Test
1. Switch the Rotunda Alternator, Regulator, Battery and Starter Tester (ARBST) 010-00725 or equivalent to the ammeter function.
2. Connect the positive and negative leads of the tester to the battery.
3. Connect the current probe to the generator B+ output lead, Circuit 36 (Y/W).

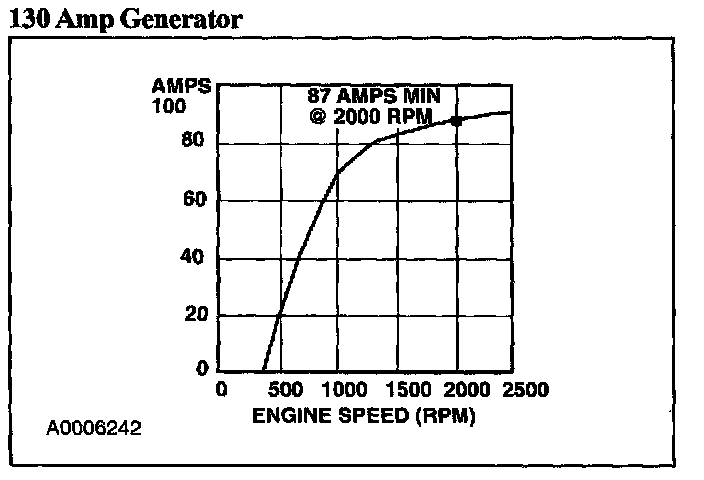

130 Amp Generator:

4. With the engine running at 2000 rpm, adjust the tester load bank to determine the output of the generator. Generator output should be greater than indicated on the graph. If not, see Symptom Chart for diagnostic procedures. Symptom Related Diagnostic Procedures

No-Load Test
1. Switch the Rotunda Alternator, Regulator, Battery and Starter Tester (ARBST) 010-00725 or equivalent to the voltmeter function.
2. Connect the voltmeter positive lead to the generator B+ terminal and the negative lead to ground.
3. Turn all electrical accessories off.
4. With the engine running at 2000 rpm, check the generator output voltage. The voltage should be between 13.0 and 15.0 volts. If not, Symptom Related Diagnostic Procedures for diagnostic procedures.
