Home >> Mercury >> 1999 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> A/T Technical Data >> AX4S 4-SPD A/T

AX4S 4-SPD A/T

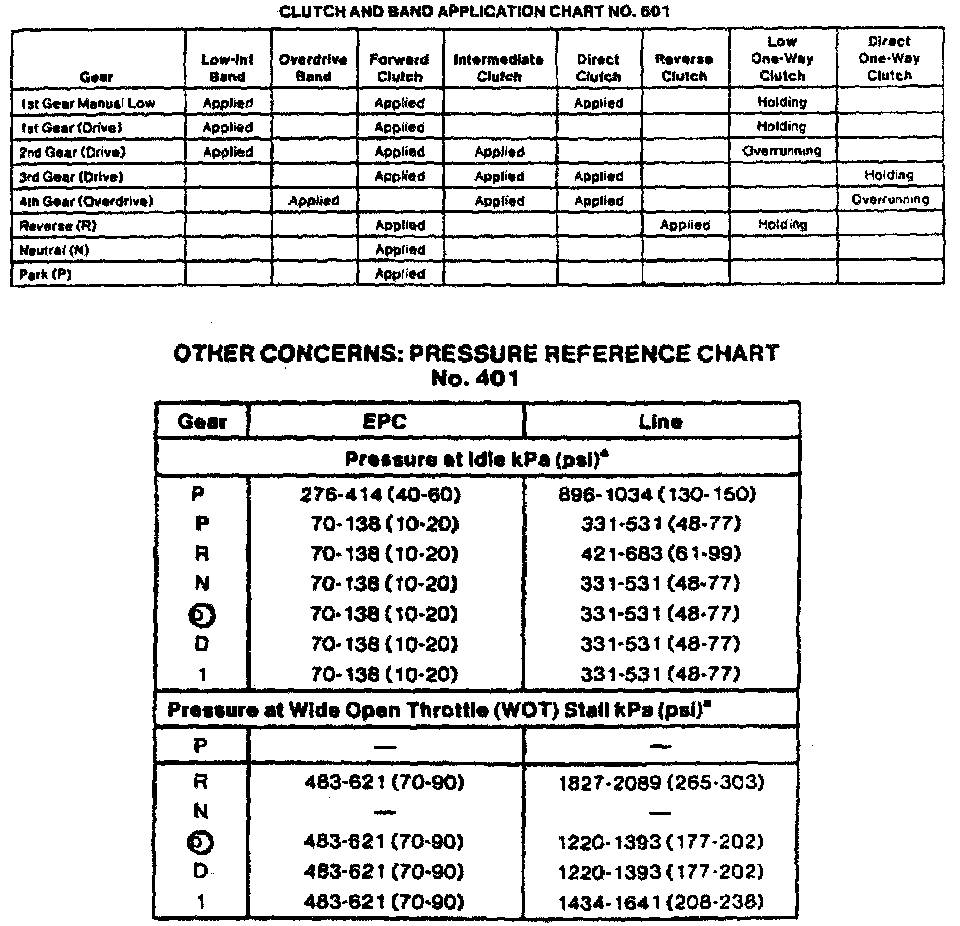

AX4S 4-spd A/T, Clutch/Band Application (Taurus/Sable):

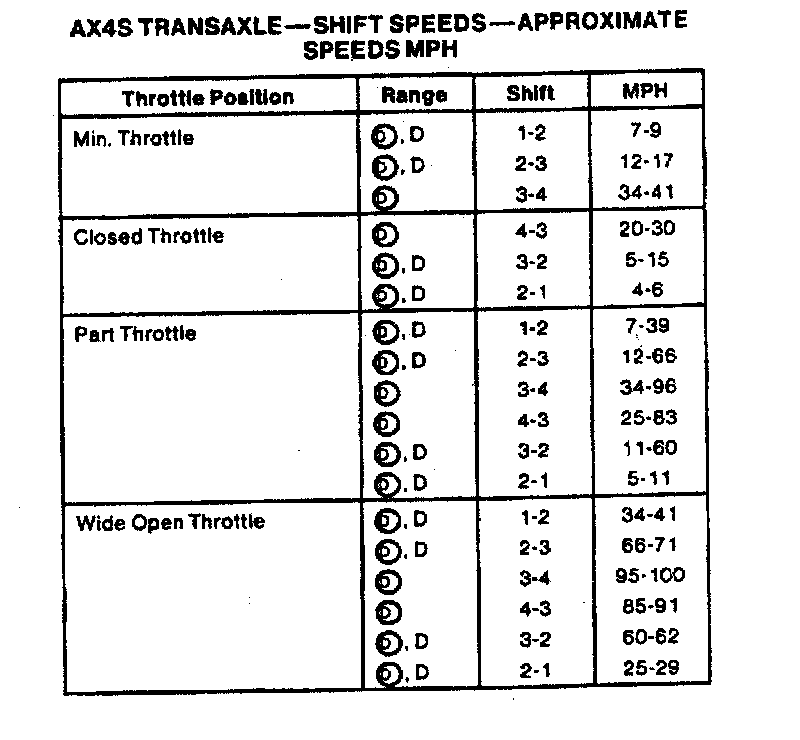

AX4S 4-spd A/T, Shift Speeds (Taurus/Sable):
