Wiper Switch: Testing and Inspection

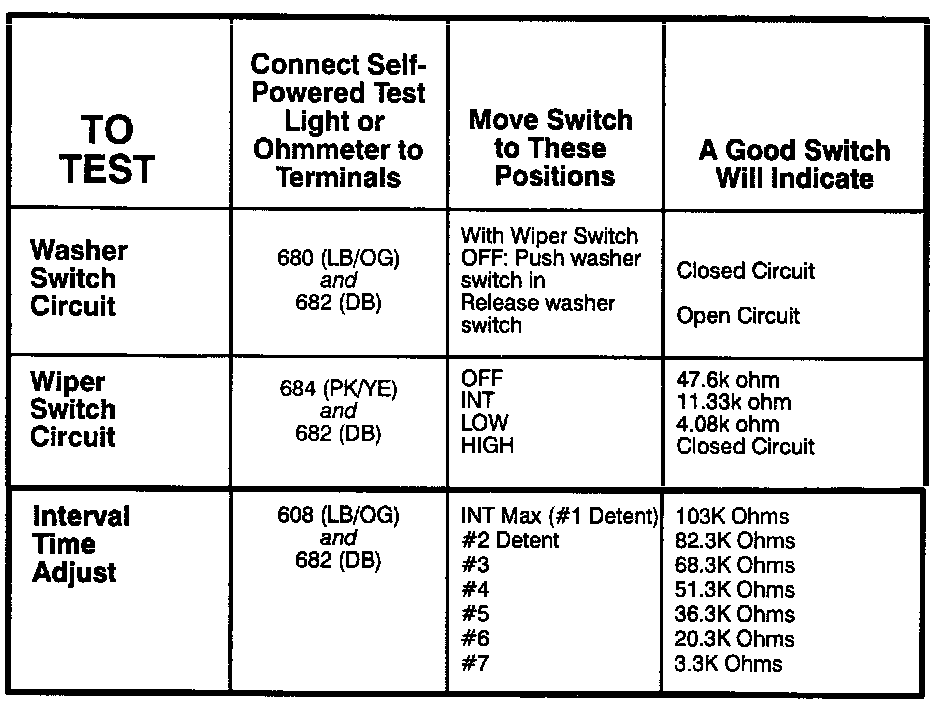

Component Testing Procedure:






Terminals:

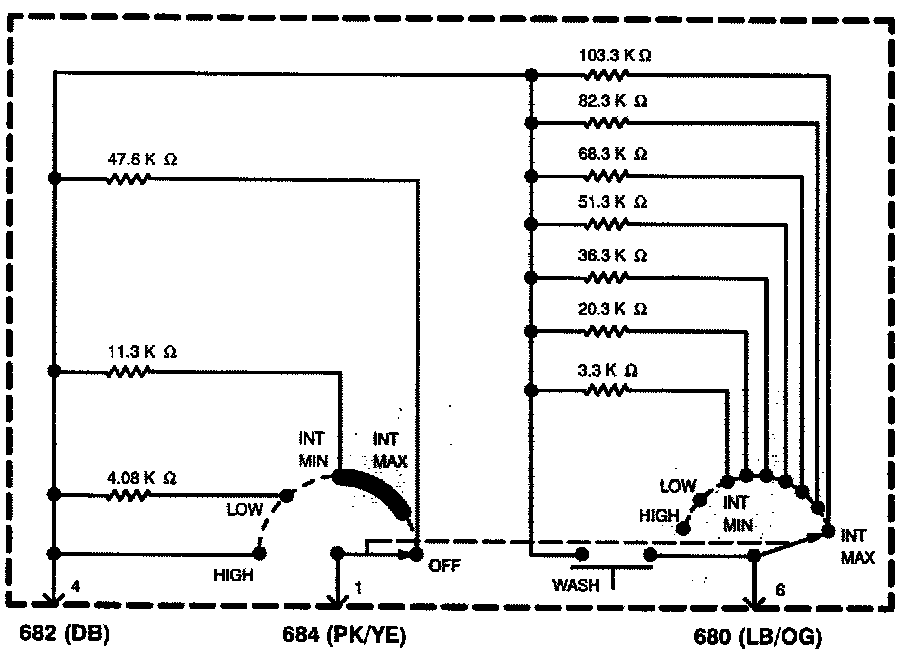

Schematic - Wiper/Washer Portion Of Multifunction Switch:
