Right Front Power Window Switch

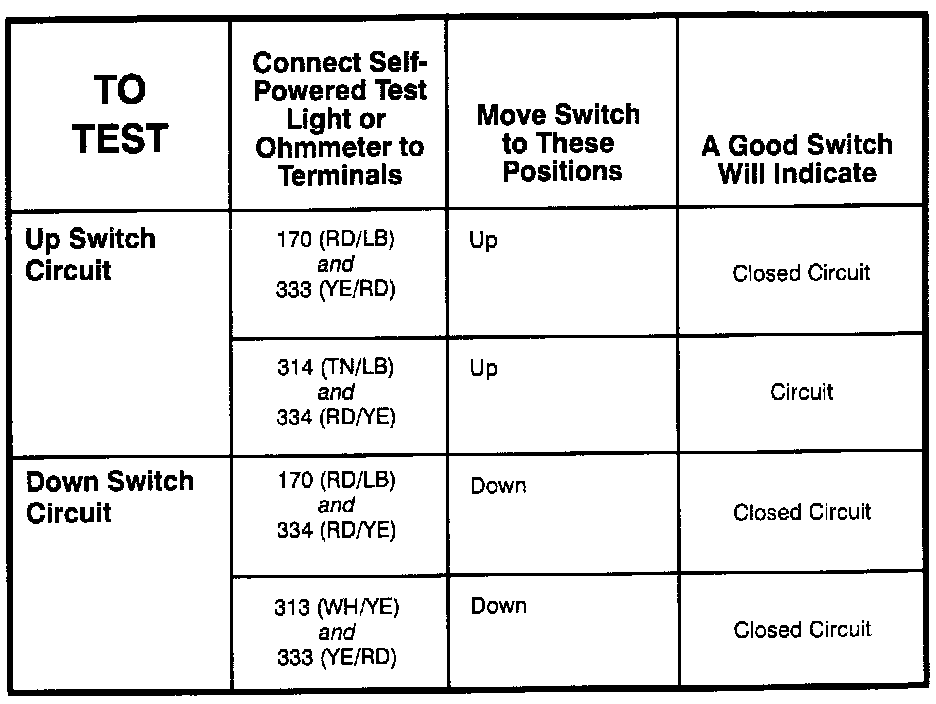

Component Testing Procedure:

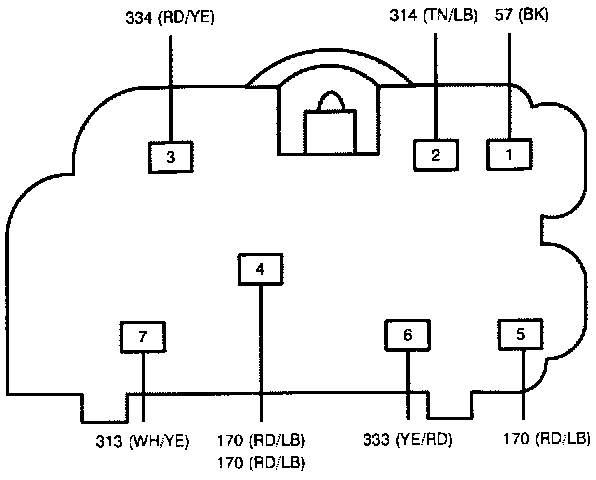

Terminal - Right Front Window Switch:

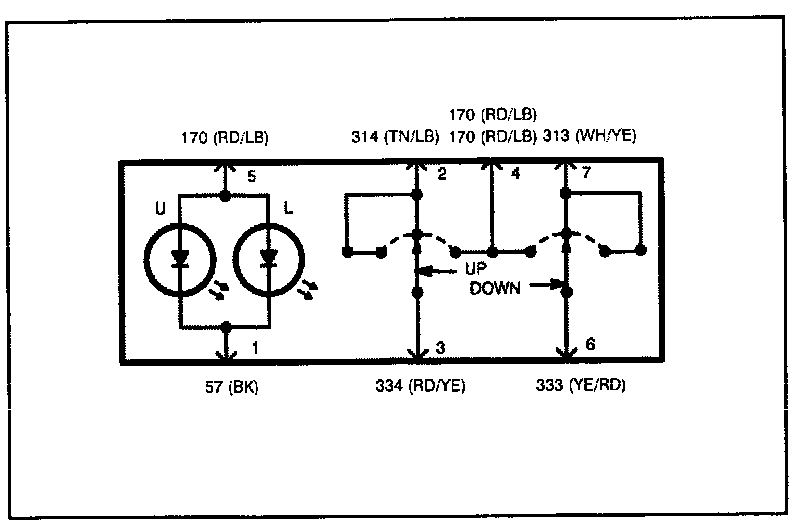

Schematic - Right Front Window Switch:
