Power Window Switch: Service and Repair






Passenger's Door Switch:






REMOVAL
1. Disconnect battery ground cable.
2. Remove door panel. Doors

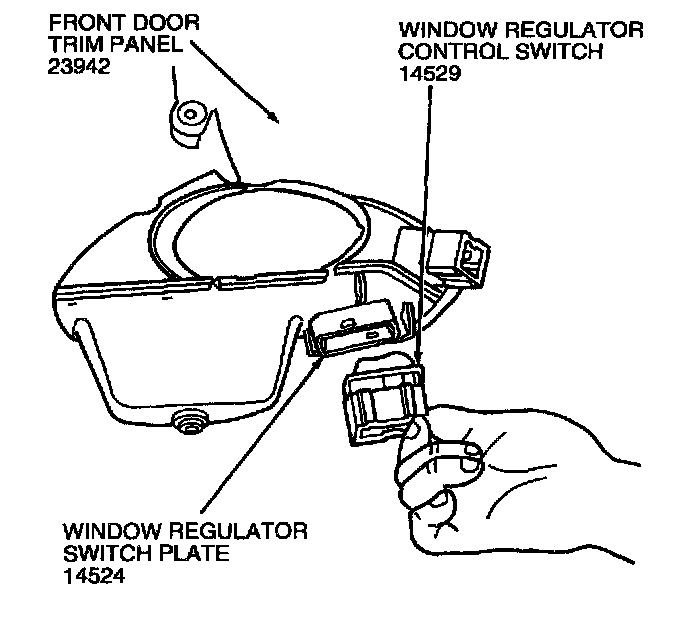

3. Using a small screwdriver, carefully spread switch retaining walls on window regulator switch plate and remove switch.

INSTALLATION
1. Follow removal procedure in reverse order.
