AX4N

Removal
1. Disconnect battery ground cable and positive battery cable.
2. Remove battery and battery tray.
3. Disconnect Turbine Shaft Speed (TSS) sensor electrical connector.

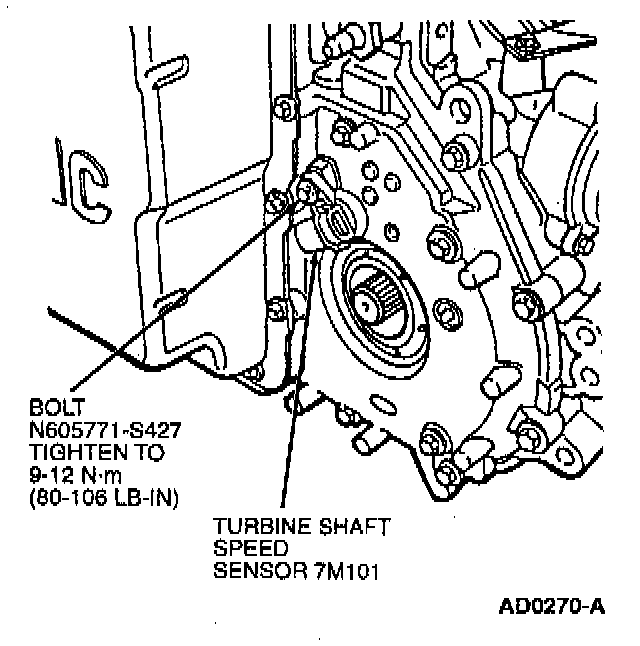

4. Remove one bolt and TSS from transaxle.






Installation
1. Follow removal procedure in reverse order.
2. Tighten TSS retaining bolt to 9-12 Nm (80-106 inch lbs.).
