Multi-Function Switch

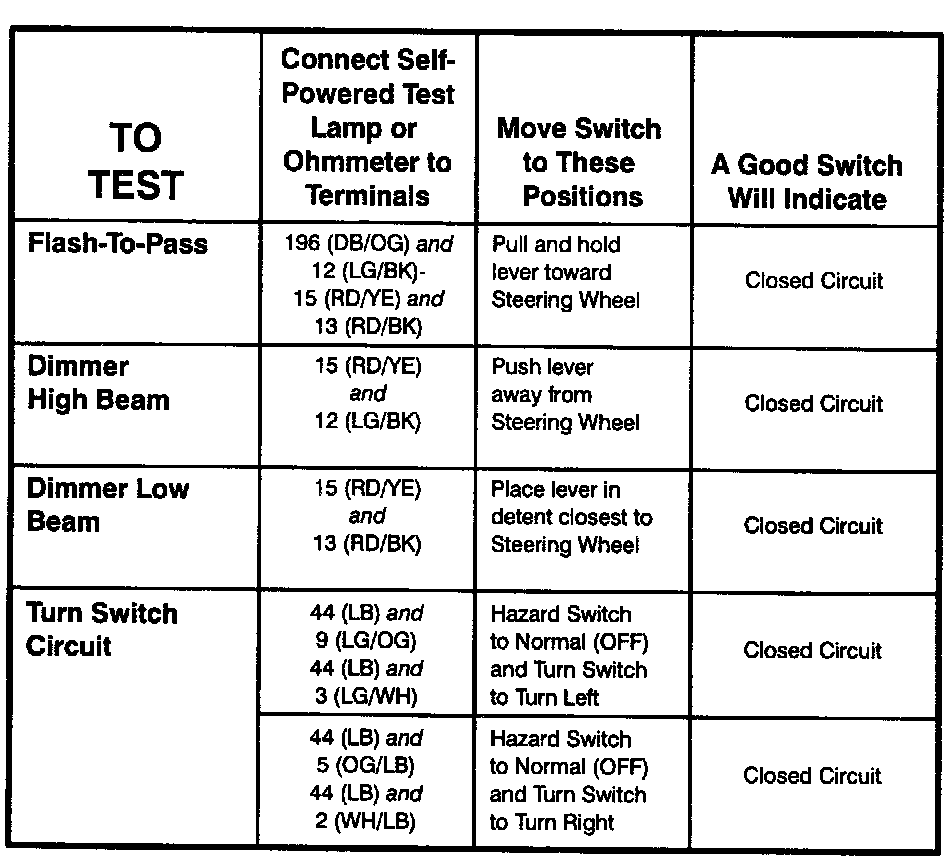

Component Testing Procedure:

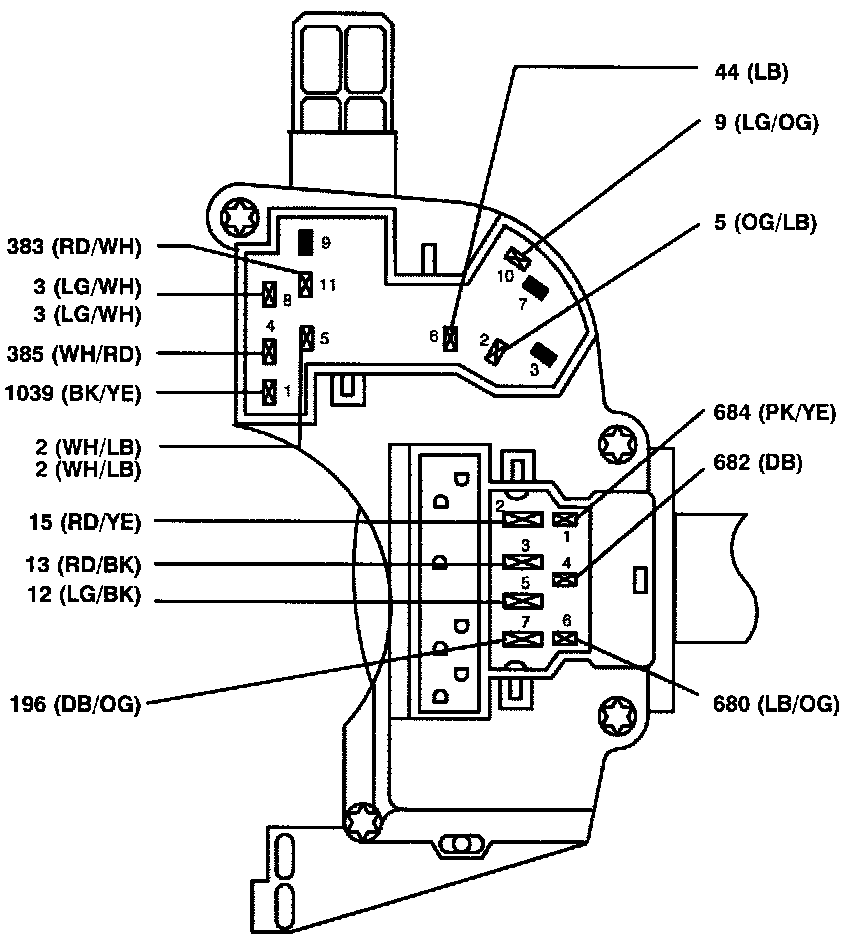

Terminals:

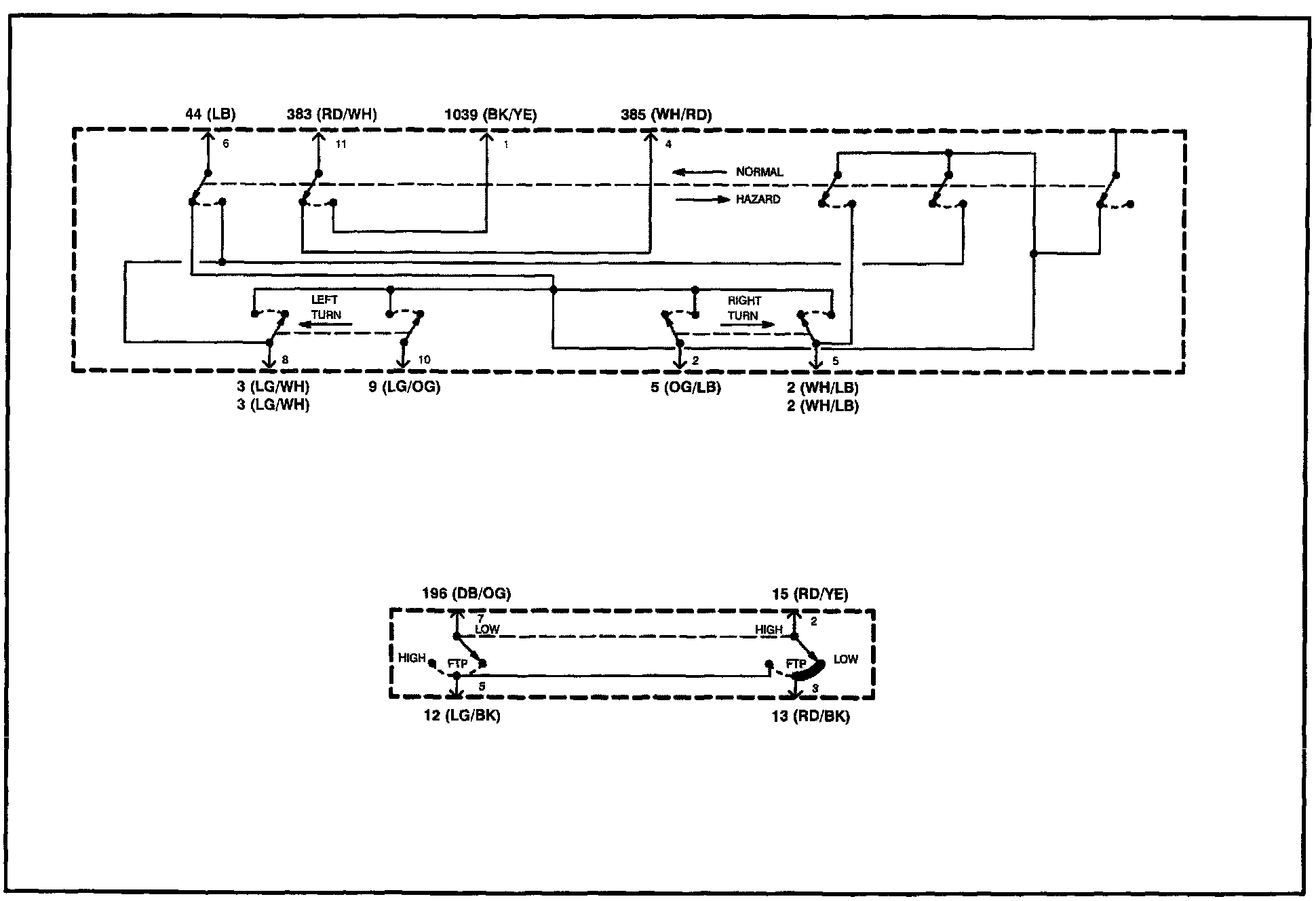

Schematic - Lamp Portion Of Multifunction Switch:
