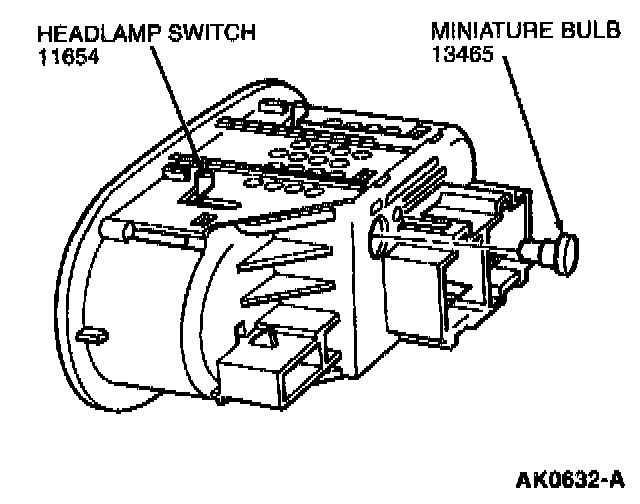

Miniature Bulb






REMOVAL
1. Remove headlamp switch.
2. Using a small flat-tipped screwdriver, turn miniature bulb 1/4 turn counterclockwise to release retainers.
3. Turn headlamp switch upside down to remove miniature bulb.

INSTALLATION
1. Follow removal procedure in reverse order.
