A/C Pressure Cut-Off Switch

REMOVAL
1. Raise vehicle.
2. Remove A/C pressure cut-off switch electrical connector.

NOTE: Remove lower air deflector.

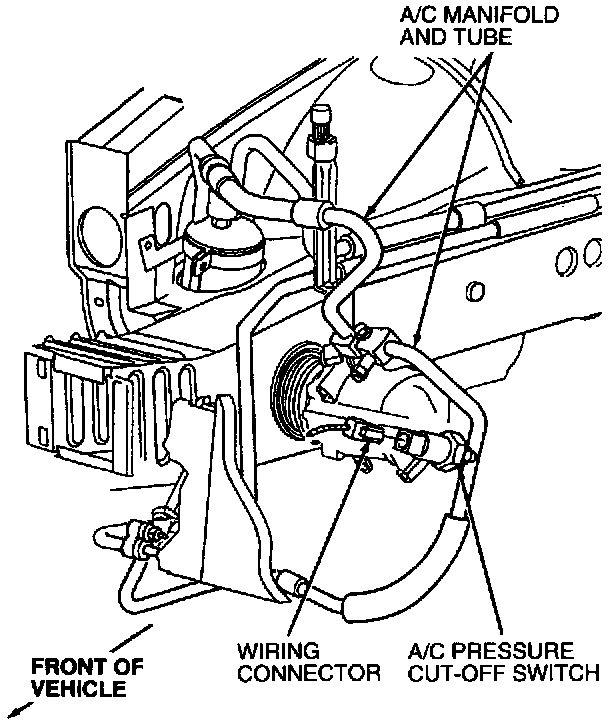

3. Remove A/C pressure cut-off switch from the A/C manifold and tube.

INSTALLATION
1. Follow removal procedure in reverse order. Use new O-ring seals lubricated with clean PAG Compressor Oil Motorcraft YN-12c F7AZ-19589-DA or equivalent meeting Ford specification WSH-M1C231-B.
