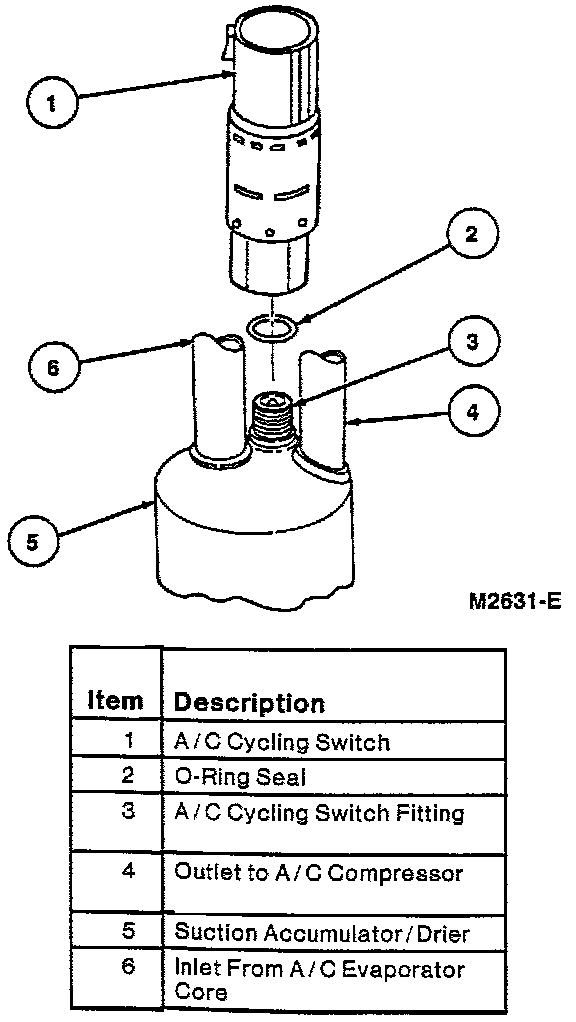

A/C Cycling Switch

REMOVAL







1. Disconnect wire harness connector from A/C cycling switch.
2. Unscrew A/C cycling switch from top of suction accumulator/drier.

INSTALLATION
1. Install new O-ring seal, lubricated with PAG Compressor Oil Motorcraft YN-12c F7AZ-19589-DA or equivalent meeting Ford specification WSH-M1C231-B on the A/C cycling switch fitting.
2. Lubricate the O-ring seal on the suction accumulator/drier nipple with clean PAG Compressor Oil Motorcraft YN-12c F7AZ-19589-DA or equivalent meeting Ford specification WSH-M1C231-B.
3. Screw A/C cycling switch on suction accumulator/drier nipple and hand tighten.
4. Connect wire connector to A/C cycling switch.
5. Check A/C cycling switch installation for refrigerant leaks.
6. Check system for proper operation.
