Ambient Temperature Sensor / Switch HVAC: Service and Repair

REMOVAL
1. Remove front bumper cover.

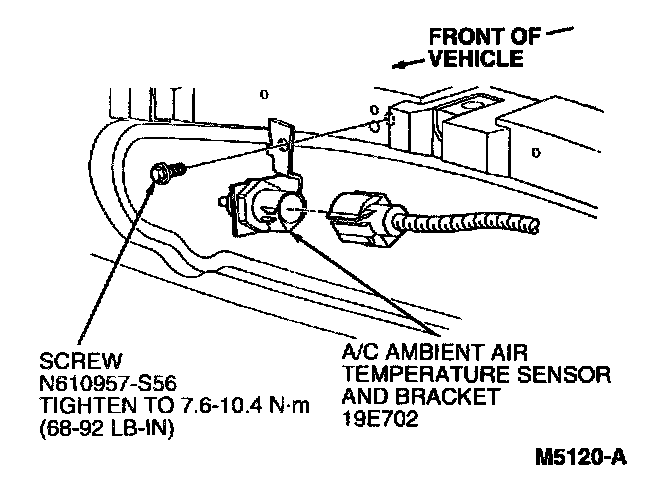

2. Remove retaining screw and A/C ambient air temperature sensor and bracket from grille opening reinforcement.
3. Disconnect electrical connector from A/C ambient air temperature sensor and bracket.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten retaining screw to 7.6-10.4 N.m (68-92 Lb-In).
