Cruise Control Switch: Description and Operation

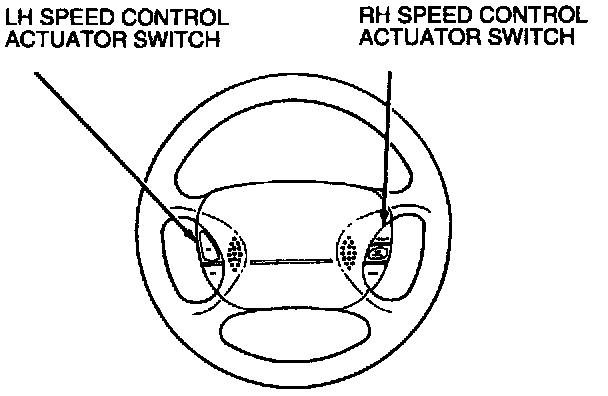

The
speed control actuator switch
:
-
is mounted in the steering wheel and consists of:
^
LH buttons (ON, OFF).
^
RH buttons (RESUME, SET/ACCEL, COAST).
^
necessary wiring.
