Power Mirror Switch: Testing and Inspection

Component Testing Procedure:

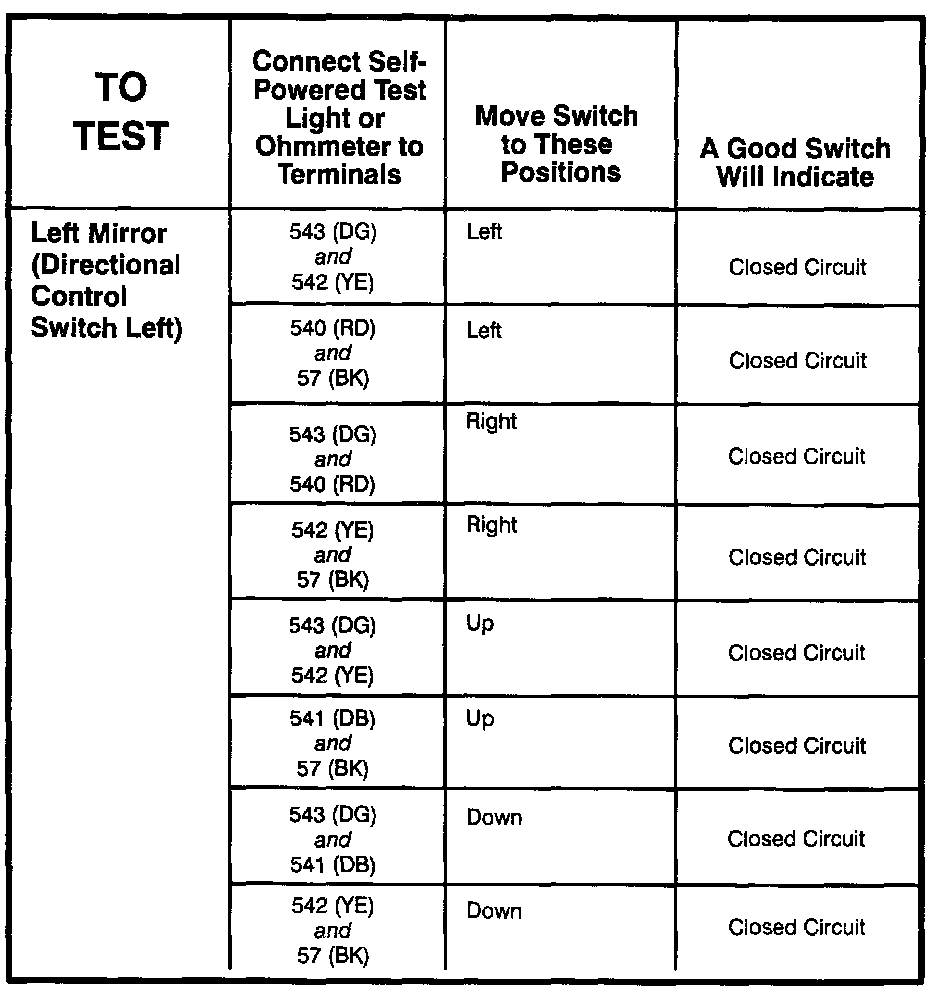

Component Testing Procedure:

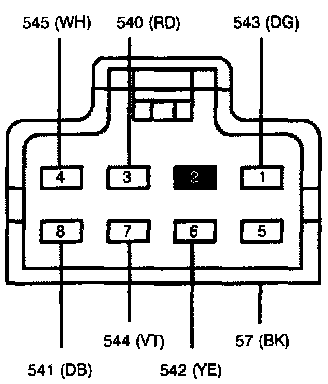

Terminal - Left Power Mirror Switch:






Schematic - Left Power Mirror Switch:
