Removal and Installation

REMOVAL
1. Remove front seat shoulder strap guide cover.
2. Remove anchor bolt and seat belt guide from shoulder safety belt height adjuster.
3. Remove upper B-pillar trim panel.
4. Remove front seat shoulder strap cover from shoulder safety belt height adjuster.

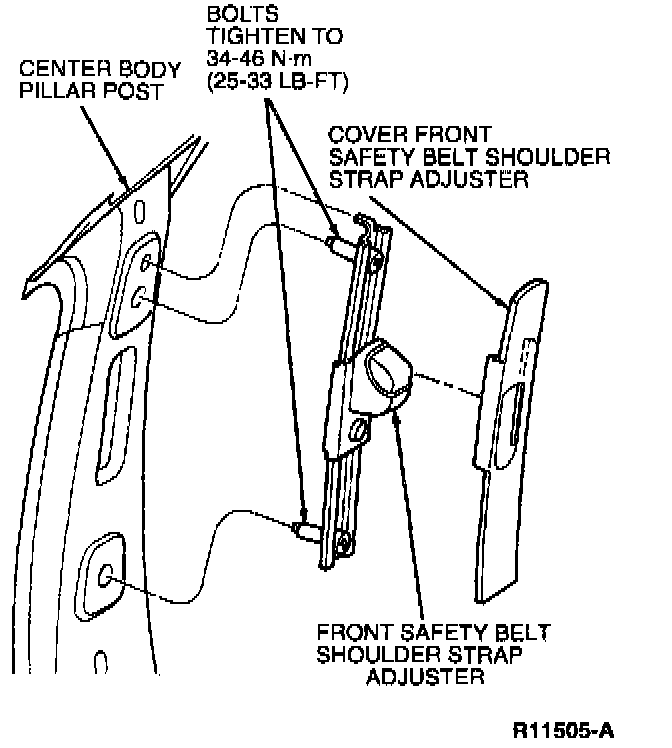

5. Loosen two bolts and remove shoulder safety belt height adjuster from center body pillar.






INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten front seat shoulder strap adjuster bolts to 34-46 Nm (25-33 lb-ft).
3. Tighten safety belt guide anchor bolt to 34-46 Nm (25-33 lb-ft).
