G: LFC 15/DTC B1887 - Driver Air Bag Circuit Short to Ground

Normal Operation
The air bag Electronic Crash Sensor (ECS) module checks for driver air bag module circuit shorts to ground by monitoring the voltage of Circuits 614 (GY/O) and 615 (GY/W) at Pins 1 and 15. If the ECS detects a short to ground on either of these pins, it will store a Diagnostic Trouble Code (DTC) B1887 in memory and flash a Lamp Fault Code (LFC) 15 (or higher priority code if one exists) on the air bag indicator.

Possible Causes
A driver air bag ignitor circuit shorted to ground could be caused by:
- a short to ground on Circuit 614 (GY/O).
- a short to ground on Circuit 615 (GY/W).
- a short to ground on the air bag sliding contact.
- a short to ground on the driver air bag module.

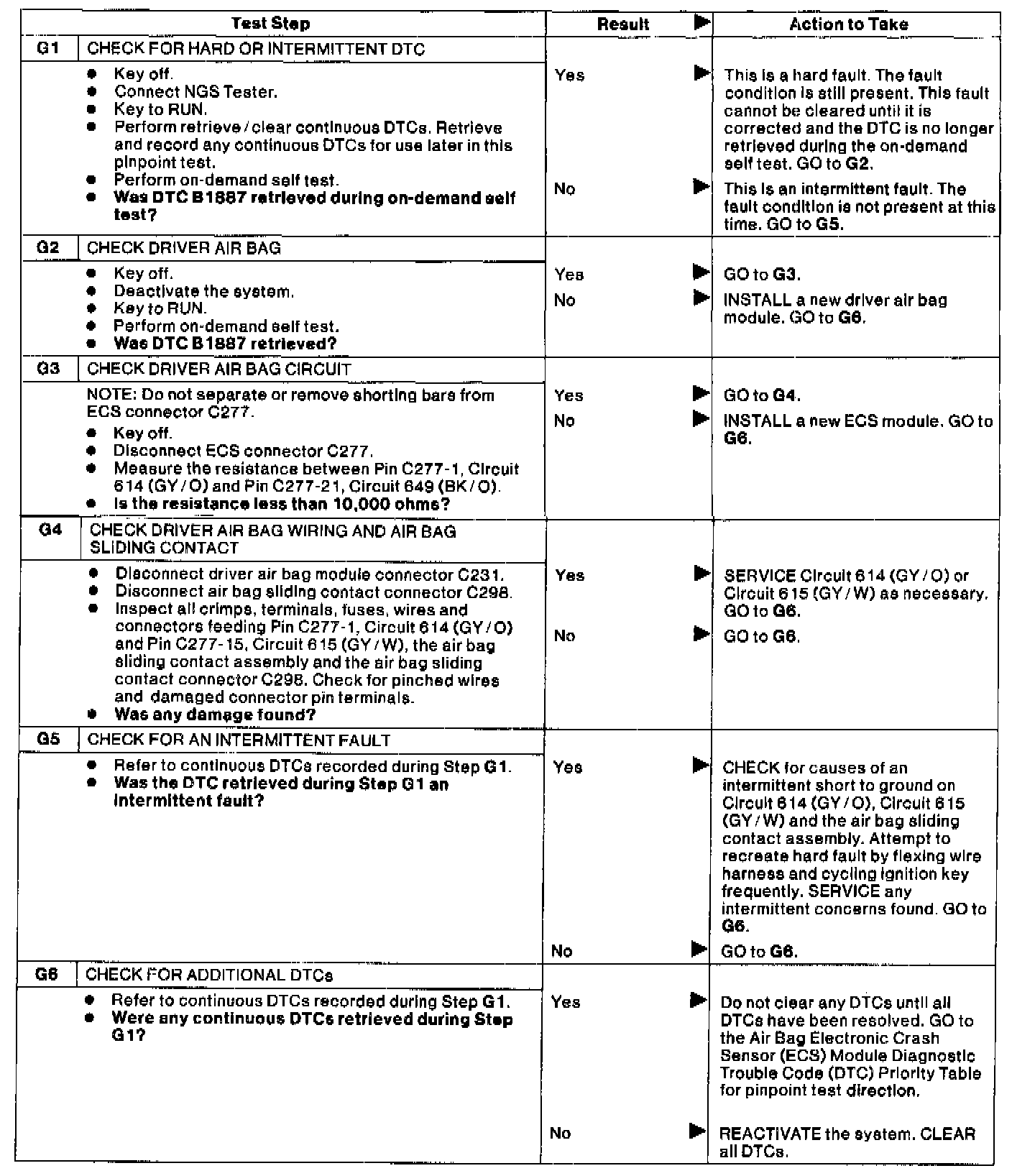

Pinpoint Test Steps:

G1-G6:
