Passenger's Side

NOTE: If the passenger air bag module did not deploy in a collision, it may not have been needed. Complete all diagnostics before replacing the passenger air bag module.

WARNING:
- ALWAYS WEAR SAFETY GLASSES WHEN REPAIRING AN AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) VEHICLE AND WHEN HANDLING AN AIR BAG MODULE. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
- CARRY A LIVE AIR BAG MODULE WITH THE AIR BAG AND DEPLOYMENT DOOR POINTED AWAY FROM YOUR BODY. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
- DO NOT SET A LIVE AIR BAG MODULE DOWN WITH THE DEPLOYMENT DOOR FACE DOWN. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
- AFTER DEPLOYMENT, THE AIR BAG SURFACE CAN CONTAIN DEPOSITS OF SODIUM HYDROXIDE, A PRODUCT OF THE GAS GENERANT COMBUSTION THAT IS IRRITATING TO THE SKIN. WASH YOUR HANDS WITH SOAP AND WATER AFTERWARDS.
- NEVER PROBE THE CONNECTORS ON THE AIR BAG MODULE. DOING SO CAN RESULT IN AIR BAG DEPLOYMENT, WHICH CAN RESULT IN PERSONAL INJURY.
- AIR BAG MODULES WITH DISCOLORED OR DAMAGED DEPLOYMENT DOORS MUST BE REPLACED, NOT REPAINTED.
- VEHICLE SENSOR ORIENTATION IS CRITICAL FOR PROPER SYSTEM OPERATION. IF A VEHICLE EQUIPPED WITH AN AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) IS INVOLVED IN A COLLISION, INSPECT THE SENSOR MOUNTING BRACKET AND WIRING PIGTAIL FOR DEFORMATION. REPLACE AND PROPERLY POSITION THE SENSOR OR ANY OTHER DAMAGED SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS WHETHER OR NOT THE AIR BAG IS DEPLOYED.
- TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL. INJURY, THE BACKUP POWER SUPPLY MUST BE DEPLETED BEFORE REPAIRING OR REPLACING ANY FRONT OR SIDE AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS AND BEFORE SERVICING, REPLACING, ADJUSTING OR STRIKING COMPONENTS NEAR THE FRONT OR SIDE AIR BAG SENSORS, SUCH AS DOORS, INSTRUMENT PANEL, CONSOLE, DOOR LATCHES, STRIKERS, SEATS AND HOOD LATCHES.
- THE SIDE AIR BAG SENSORS ARE LOCATED AT OR NEAR THE BASE OF THE B-PILLAR.
- TO DEPLETE THE BACKUP POWER SUPPLY ENERGY, DISCONNECT THE BATTERY GROUND CABLE AND WAIT AT LEAST ONE MINUTE. BE SURE TO DISCONNECT AUXILIARY BATTERIES AND POWER SUPPLIES (IF EQUIPPED).

REMOVAL

NOTE: Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and perform the diagnostic procedure again.

1. Record pre-set radio frequencies for reprogramming following completion of service procedures.
2. Disconnect battery ground cable and wait at least one minute.
3. Wait one minute for back-up power supply energy to be depleted.

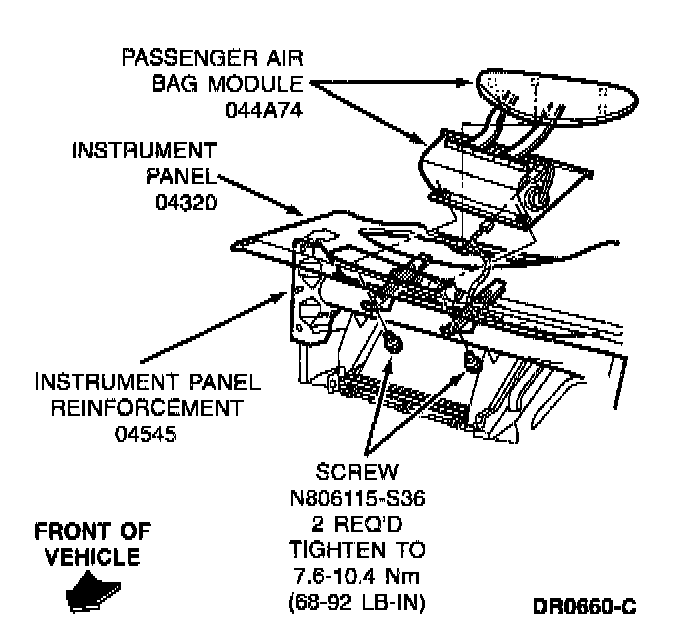

4. Remove passenger air bag module trim cover from instrument panel.

NOTE: The passenger air bag module trim cover is retained by snap-in tabs.

5. Open glove compartment, press sides inward and lower glove compartment to floor.
6. Through glove compartment opening, remove two passenger air bag module retaining screws.
7. Disconnect the electrical connector and remove passenger air bag module.






INSTALLATION

NOTE:
- Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and perform the diagnostic procedure again.
- Fill out and return air bag traceability postcard for new air bag with VIN numbers and note diagnostic trouble code.

1. Connect the electrical connector to passenger air bag module and position passenger air bag module in instrument panel.
2. Install two module retaining screws. Tighten to 7.6-10.4 Nm (68-92 lb-in).
3. Return glove compartment to correct position.
4. Install passenger air bag trim cover by snapping into place on the instrument panel.
5. Reconnect battery ground cable.
6. Prove out air bag system.
7. Reprogram radio frequencies and set clock.
8. Prove out the air bag system.
