Diagnosis By Symptom Index

1 Of 2:




2 Of 2:

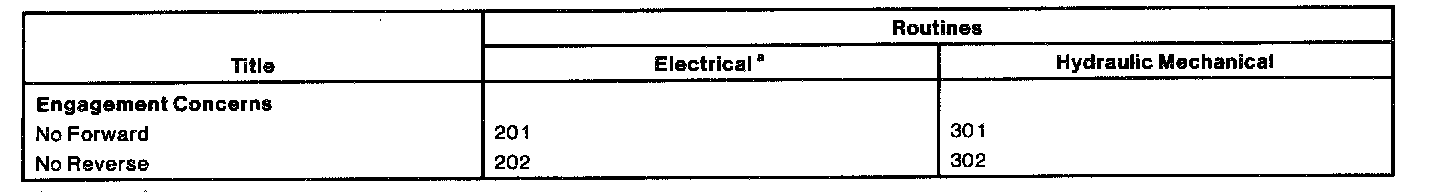

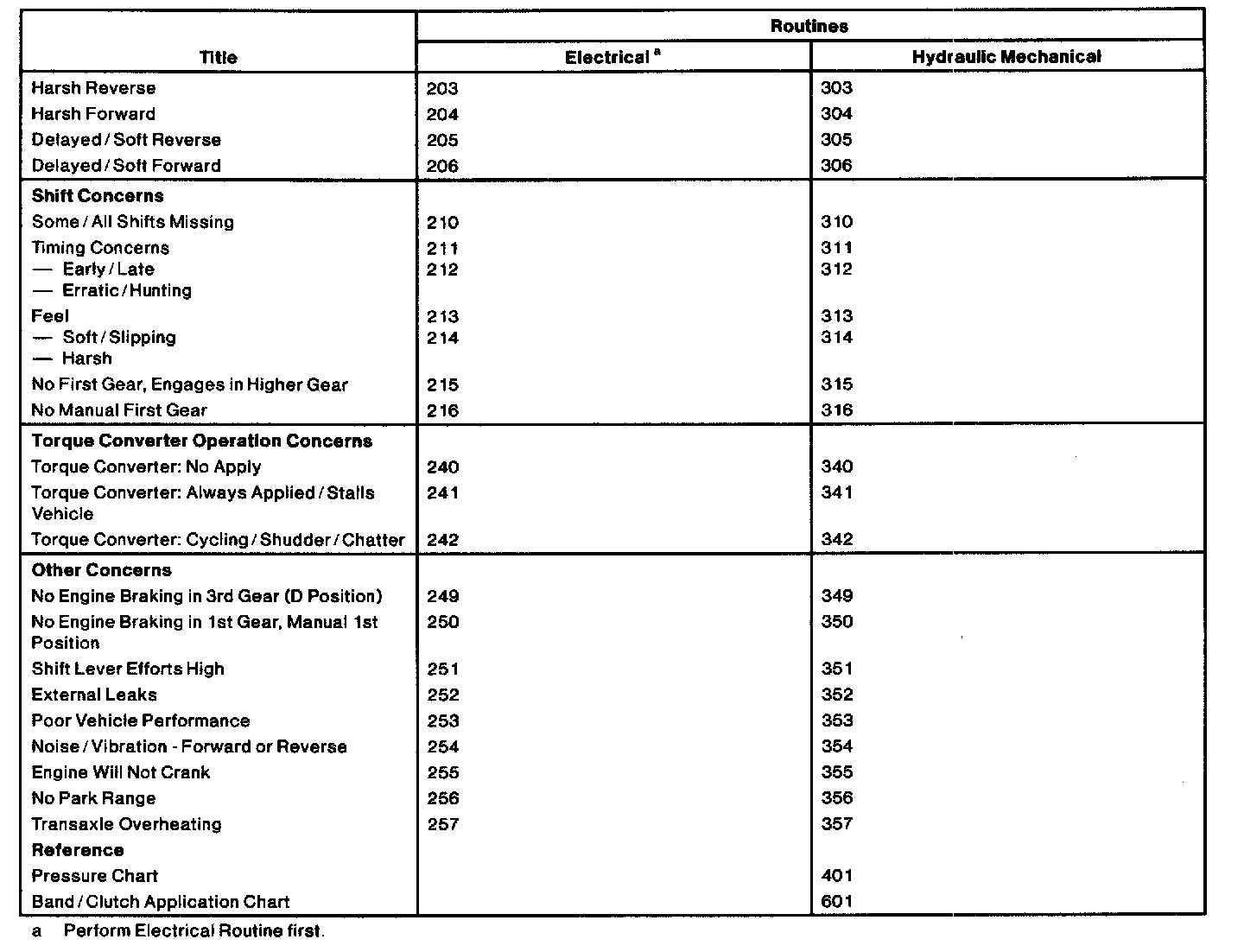

Diagnosis by Symptom Index

NOTE: Perform Electrical Routine first.
