Home >> Mercury >> 1999 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> AX4N >> Torque Converter Clutch Operation Concerns >> 242/342 - Cycling/Shudder/Chatter

242/342 - Cycling/Shudder/Chatter

1 Of 2:




2 Of 2:

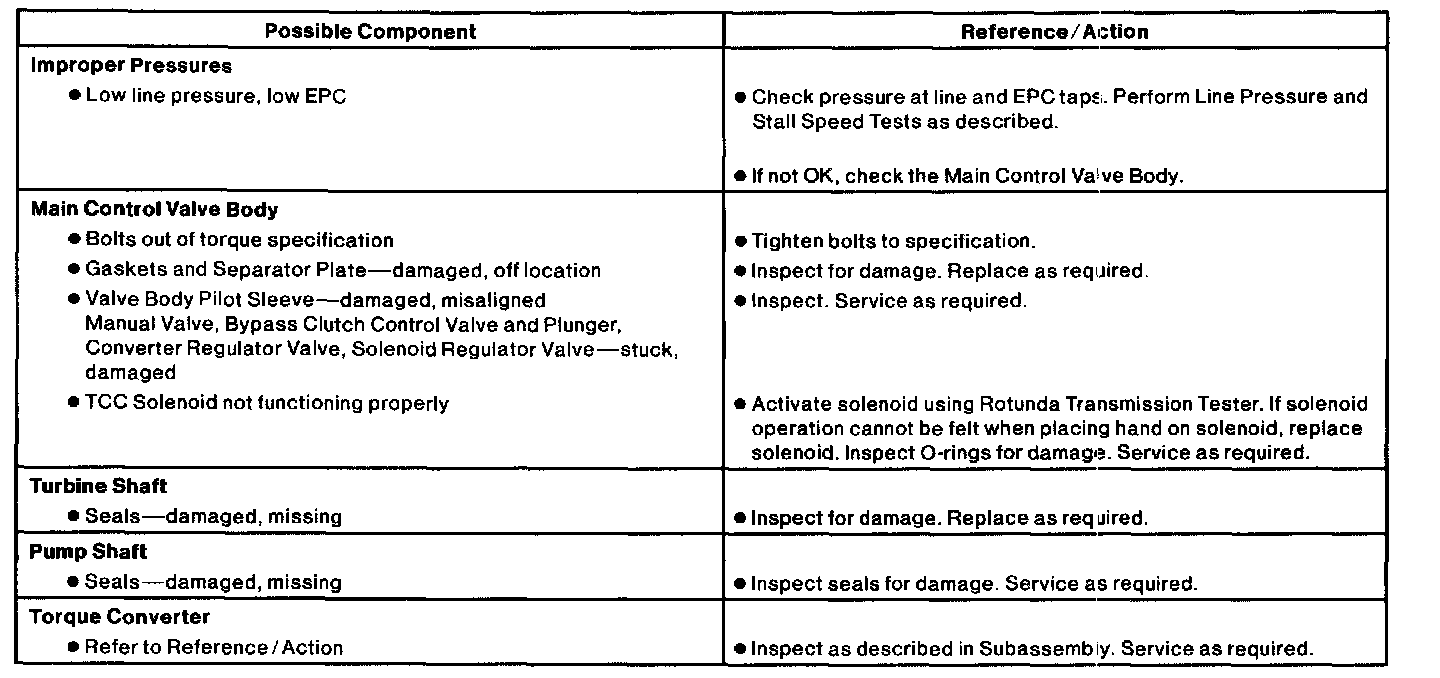

TORQUE CONVERTER OPERATION CONCERN: CYCLING/SHUDDER/CHATTER
